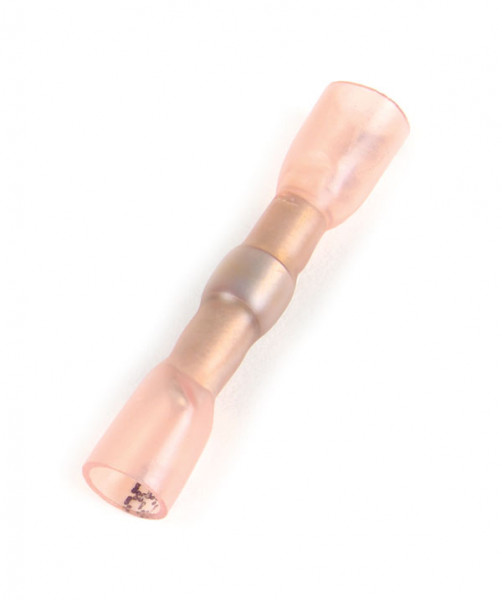

Crimp Solder Butt Connector 22-18 GA Red 600V - 83-2929
Part#: AAA41383-2929
Features and Benefits
- Crimp, solder and seal connector for waterproof wiring
- Polyolefin heat shrink body for insulation and protection
- Gauge range of 22-18 GA
- Voltage rating of 600v
- Wide temperature range for all-climate performance
- Red color coding
- 232
Select Alternative Part #
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Color | Red |
|---|---|
| Connection Type | Butt |
| Functions | Crimp, Solder & Seal |
| Gauge | 22-18 GA |
| Height | 5.13 in. |
| Length | 8.25 in. |
| Material | Polyolefin |
| Operating Temperature | -67° F (-55° C) to 230° F (110° C) |
| RoHS Compliant | Yes |
| Shrink Ratio | 0.12 |
| Strength | 2200 PSI |
| Voltage Rating | 600V |
| Weight | 0.34 lbs |
| Width | 10.50 in. |
| Interchange |
|---|
| GRTAC-83-2929 |
No data found.
The Crimp Solder Butt Connector accommodates 22-18 GA wire, engineered to create waterproof, corrosion-free splices in Heavy Duty commercial vehicle wiring harnesses. Heat-shrink polyolefin contracts around the joint for a moisture-resistant, vibration-proof bond.
