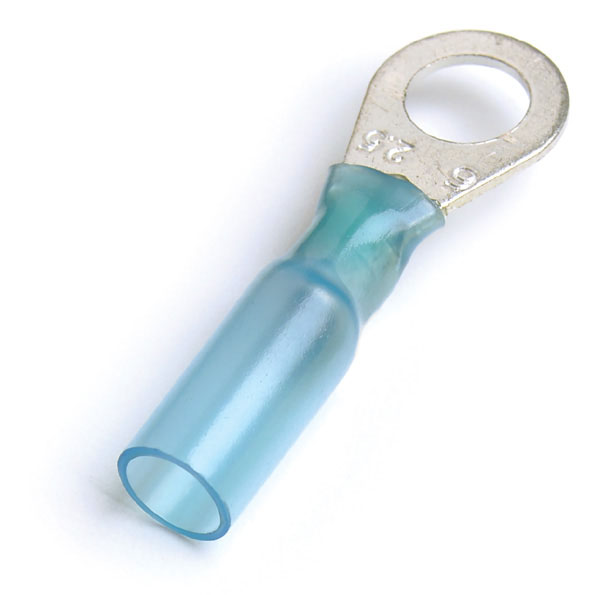

Electrical Ring and Spade Terminal 16-14 AWG Blue #10 Polyolefin - 84-2410
Part#: AAA44684-2410
Features and Benefits
- Terminal product type for accurate identification during service
- Material of polyolefin construction for the product body
- Stud and tab size of 10 for correct terminal fastener engagement
- Wire gauge of 16-14 AWG for correct terminal cable compatibility
- Insulation color of blue for the terminal wire covering
- Terminal type of ring terminal for the connection interface
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Features | Heat Shrinkable |
|---|---|
| Industry Standard / Compliance | CUL |
| Insulation Color | Blue |
| Material | Polyolefin |
| Operating Temperature Range | -67° F (-55° C) To 230° F (110° C) |
| Part Type | Terminal |
| RoHS Compliant | Yes |
| Shrink Ratio | 3:1 |
| Stud/Tab Size | #10 |
| Terminal Type | Ring Terminal |
| UL Listed | Yes |
| Voltage Rating | 600 V |
| Wire Gauge | 16-14 AWG |
| Interchange |
|---|
| 058303 |
| 311325 |
| 422001 |
| 422001TRA |
| 784449 |
| 85108066 |
| P4-40100R |
| TB10ST |
| TB10STTEC |
| TECTB10ST |
No data found.
The Electrical Ring Terminal is a heat shrinkable, adhesive-lined design constructed from polyolefin, accommodating 16-14 AWG wire with a #10 stud size, rated at 600V and CUL compliant, engineered for reliable connection on Heavy Duty commercial vehicle applications across configurations.
