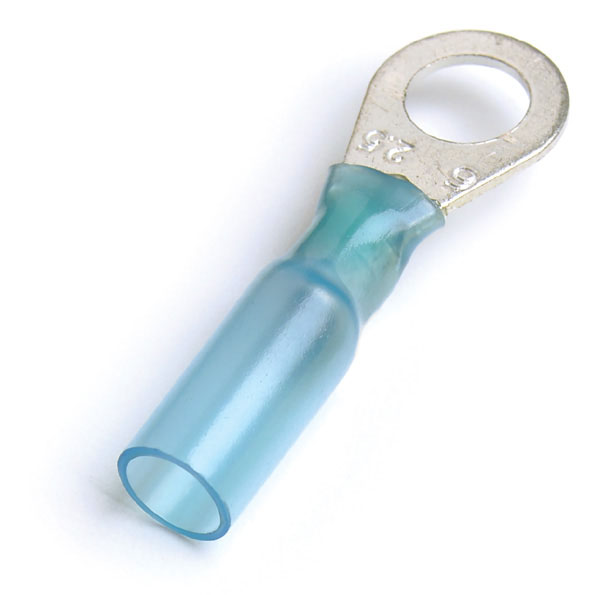

Electrical Ring and Spade Terminal 16-14 AWG Blue 0.31" Polyolefin - 84-2413
Part#: AAA44684-2413
Features and Benefits
- Terminal product type for accurate identification during service
- Material of polyolefin construction for the product body
- Stud and tab size of 0.31" for correct terminal fastener engagement
- Wire gauge of 16-14 AWG for correct terminal cable compatibility
- Insulation color of blue for the terminal wire covering
- Terminal type of ring terminal for the connection interface
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Features | Heat Shrinkable |
|---|---|
| Industry Standard / Compliance | CUL |
| Insulation Color | Blue |
| Material | Polyolefin |
| Operating Temperature Range | -67° F (-55° C) To 230° F (110° C) |
| Part Type | Terminal |
| RoHS Compliant | Yes |
| Shrink Ratio | 3:1 |
| Stud/Tab Size | 0.31 in. |
| Terminal Type | Ring Terminal |
| UL Listed | Yes |
| Voltage Rating | 600 V |
| Wire Gauge | 16-14 AWG |
| Interchange |
|---|
| 311525 |
| 422003 |
| 422003TRA |
| NW784451 |
| TB31ST |
| TB31STTEC |
| TECTB31ST |
| ZST422003 |
No data found.
The Electrical Ring Terminal is a heat shrinkable, adhesive-lined design constructed from polyolefin, accommodating 16-14 AWG wire with a 0.31" stud size, rated at 600V and CUL compliant, engineered for reliable connection on Heavy Duty commercial vehicle applications.
