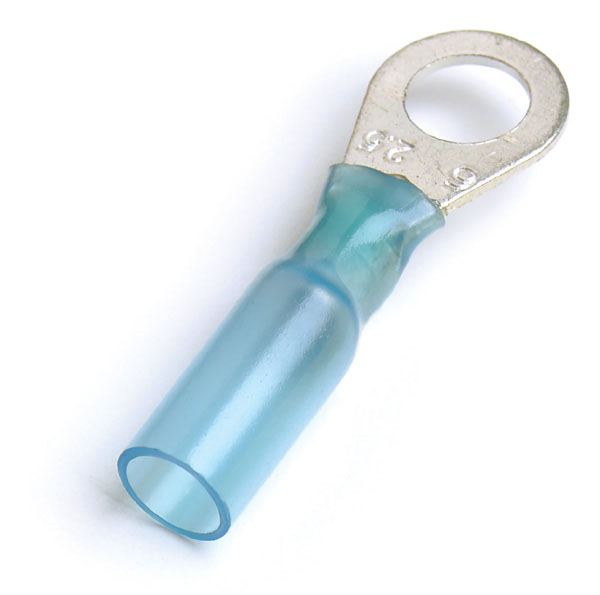

Electrical Ring and Spade Terminal 16-14 AWG Blue #6 Polyolefin - 84-2424
Part#: AAA44684-2424
Features and Benefits
- Terminal product type for accurate identification during service
- Material of polyolefin construction for the product body
- Stud and tab size of 6 for correct terminal fastener engagement
- Wire gauge of 16-14 AWG for correct terminal cable compatibility
- Insulation color of blue for the terminal wire covering
- Terminal type of ring terminal for the connection interface
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Features | Heat Shrinkable |
|---|---|
| Heat Aging Resistance | No Cracking After Heat Aging For 168 Hours At 160° C (320° F) |
| Industry Standard / Compliance | CUL |
| Insulation Color | Blue |
| Material | Polyolefin |
| Operating Temperature Range | -67° F (-55° C) To 230° F (110° C) |
| Part Type | Terminal |
| RoHS Compliant | Yes |
| Shrink Ratio | 3:1 |
| Stud/Tab Size | #6 |
| Terminal Type | Ring Terminal |
| UL Listed | Yes |
| Voltage Rating | 600 V |
| Wire Gauge | 16-14 AWG |
| Wire Pull-Out Strength | 50 lb. |
No data found.
No data found.
The Electrical Ring Terminal is a heat shrinkable design tested for 50 lb pull-out strength with a #6 stud size, constructed from polyolefin, accommodating 16-14 AWG conductors, rated at 600V, engineered for reliable connection on Heavy Duty commercial vehicle applications.
