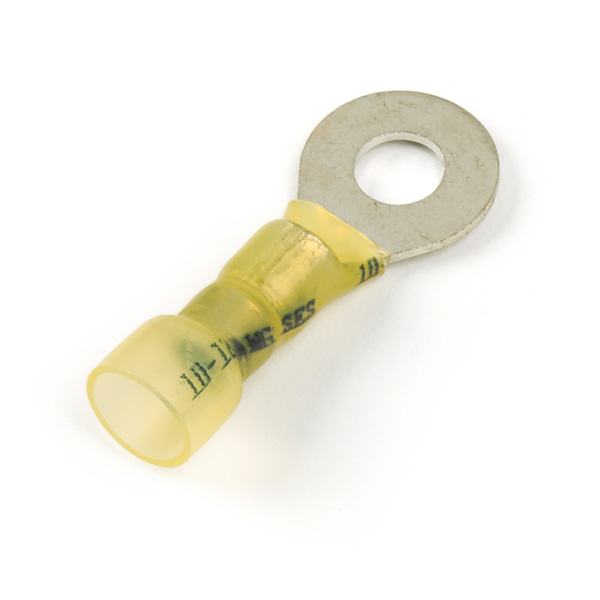

Electrical Ring and Spade Terminal 12-10 AWG Yellow #10 Polyolefin - 84-1943
Part#: AAA44684-1943
Features and Benefits
- Terminal product type for accurate identification during service
- Material of polyolefin construction for the product body
- Stud and tab size of 10 for correct terminal fastener engagement
- Wire gauge of 12-10 AWG for correct terminal cable compatibility
- Insulation color of yellow for the terminal wire covering
- Terminal type of ring terminal for the connection interface
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Features | Crimp, Solder & Seal |
|---|---|
| Industry Standard / Compliance | CUL |
| Insulation Color | Yellow |
| Material | Polyolefin |
| Operating Temperature Range | -67° F (-55° C) To 230° F (110° C) |
| Part Type | Terminal |
| RoHS Compliant | Yes |
| Shrink Ratio | 3:1 |
| Strength Rating | 2200 PSI |
| Stud/Tab Size | #10 |
| Terminal Type | Ring Terminal |
| UL Listed | Yes |
| Voltage Rating | 600 V |
| Wire Gauge | 12-10 AWG |
No data found.
No data found.
The Electrical Ring Terminal is a crimp-and-solder design rated for 2200 PSI strength with a #10 stud size, constructed from adhesive-lined polyolefin, accommodating 12-10 AWG wire, engineered for reliable sealed connection on Heavy Duty commercial vehicle applications.
