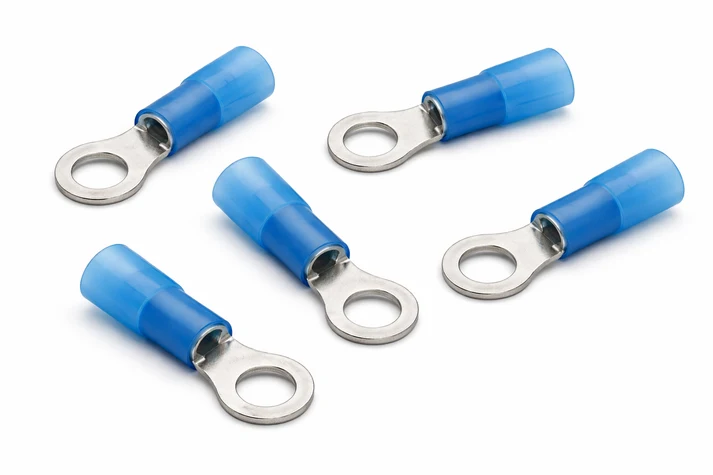

Electrical Ring and Spade Terminal 16-14 AWG Blue #10 Tin-Plated - PHI1-52156
Part#: AAA446PHI1-52156
Features and Benefits
- Ring terminal product type for accurate identification during service
- Material of copper core with vinyl insulation construction for the product body
- Finish of tin-plated for the product surface treatment
- Stud and tab size of 10 for correct terminal fastener engagement
- Wire gauge of 16-14 AWG for correct terminal cable compatibility
- Insulation type of PVC / vinyl for the terminal wire covering
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| CSA Certified | Yes |
|---|---|
| Corrosion Resistant | Yes |
| Finish | Tin-Plated |
| Insulation Color | Blue |
| Insulation Type | Pvc / Vinyl |
| Material | Copper Core With Vinyl Insulation |
| Operating Temperature Range | -40° F To 221° F |
| Part Type | Ring Terminal |
| Stud/Tab Size | #10 |
| Terminal Type | Crimp Ring Terminal |
| UL Listed | Yes |
| Vibration Resistant | High |
| Voltage Rating | 600 V |
| Wire Gauge | 16-14 AWG |
| Interchange |
|---|
| 14-10RT |
| 30-52156 |
| 52156 |
| 85456 |
| MVU14-10R |
No data found.
The Electrical Ring Terminal is a crimp design constructed from tin-plated copper with vinyl insulation, accommodating 16-14 AWG wire with a #10 stud size, rated at 600V and UL listed, engineered for reliable connection on Heavy Duty commercial vehicle applications.
