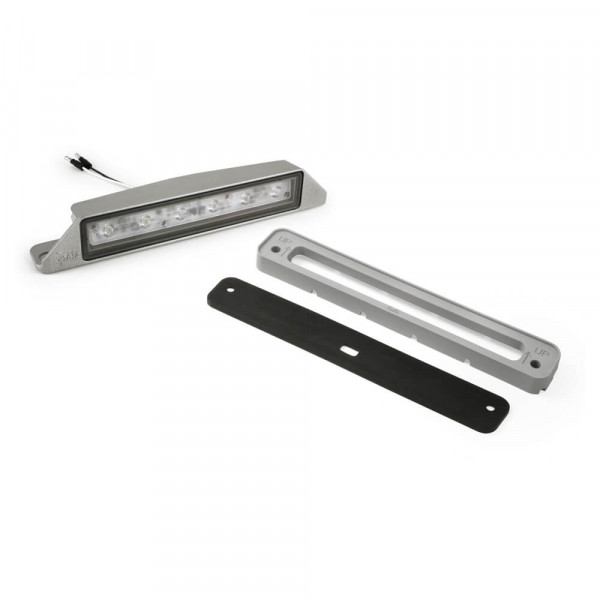

Gasket 3.00" Length 10.96" Polycarbonate Standard 0.180" Male Bullet - 64M11-5
Part#: AAA45664M11-5
Features and Benefits
- Radius light product type for accurate identification during service
- Material of aluminum construction for the product body
- Length of 10.96" (10.96") for correct fitment span
- Height of 2" or 1.56" (1.56") for the product body dimension
- Width of 3" or 1.67" (1.67") for the product body dimension
- Voltage rating of 9-32V for the electrical rating
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Amperage | .75A-1.5A |
|---|---|
| Connection Type | Standard 0.180 in. Male Bullet |
| Height | 2.00 in. |
| Industry Standard / Compliance | MIL-STD-202G (Vibration) |
| Ingress Protection Rating | IP69K |
| LED Count | Six 200 Lumen Leds |
| Length | 10.96 in. (278.35 Mm) |
| Lens Material | Polycarbonate |
| Light/Beam Pattern | Wide Flood |
| Lumens | 1000.00 |
| Material | Aluminum |
| Minimum Illumination Distance | 12 Feet (4 Meters) In Three Directions |
| Mounting Type | Gasket, Spacer |
| Operating Temperature Range | -40° F to +158° F (-40° C to +70° C) |
| Part Type | Radius Light |
| Protrusion from Surface | 2.50 in. |
| Shape / Construction | Rectangular |
| Spacer Depth | 0.642 in. |
| Voltage Rating | 9-32V |
| Width | 3.00 in. |
| Wire Length | 188 Mm |
No data found.
No data found.
The Dome Light is a radius task fixture rated at 1200 lumens with an IP69K ingress rating, constructed from die-cast aluminum with a polycarbonate lens, engineered for reliable interior illumination on Heavy Duty commercial vehicle applications. The unit meets SAE and MIL-STD compliance.
