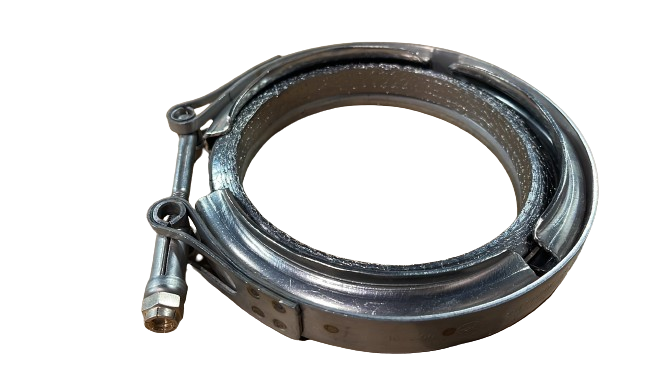

Gasket 5.00" Stainless Steel - 561.29500K
Part#: AAA45629500K
Features and Benefits
- Material of stainless steel construction for the product body
- Diameter of 5" for the gasket fitment dimension
- V-insert angle of 40 deg for the clamp band profile
- V-insert groove width of 0.300" for the clamp band profile
- V-insert width of 1.160" for the clamp band profile
- Bolt size of 0.31" for correct clamp fastener engagement
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Bolt Size | 0.31 in. |
|---|---|
| Diameter | 5.00 in. |
| Material | Stainless Steel |
| Torque Range | 170-200 In-Lbs |
| V-Insert Angle | 40° |
| V-Insert Depth | 0.472 in. |
| V-Insert Groove Width | 0.300 in. |
| V-Insert Thickness | 0.078 in. |
| V-Insert Width | 1.160 in. |
| Interchange |
|---|
| TCXAMS015AM |
No data found.
The Gasket is supplied with a stainless steel V-band clamp rated for 170-200 in-lbs torque, featuring a 5.00" diameter and 40° V-insert angle, engineered for reliable aftertreatment sealing on Heavy Duty commercial vehicle applications across configurations.
