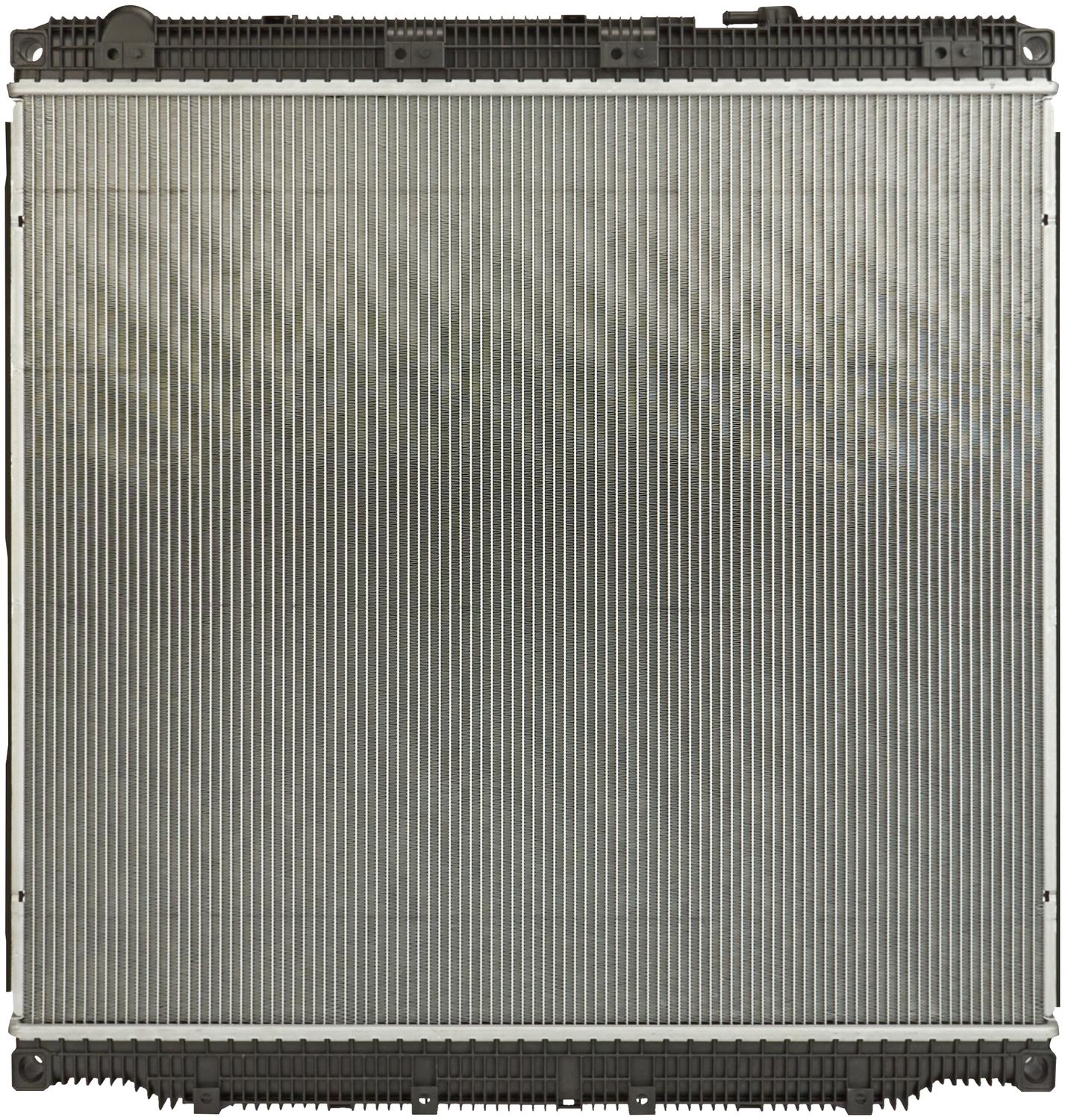

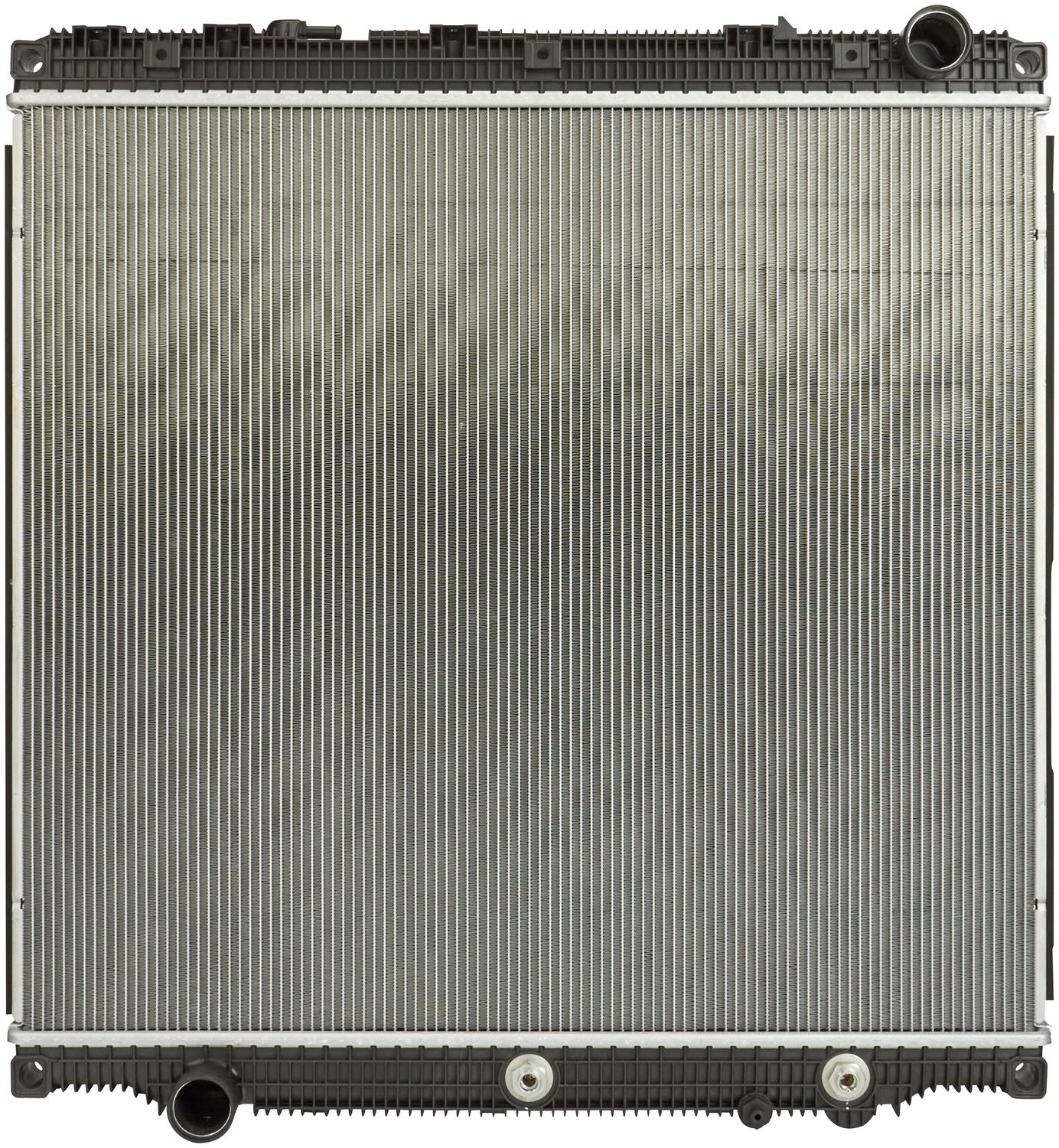

Radiator Downflow Aluminum Plastic Tank 2-1/2 in. Connection Frame Mount - 0437560PF / IAT0437560PF
Part#: AAA7237560RF
Features and Benefits
- Dual-row downflow aluminum core engineered for the heat load profile of FRT P4 811.4 engines
- Plastic tank design accommodates pressure surges and thermal expansion during high-load operation
- Engine-side TOC specification maintains correct fan blade clearance in FRT P4 811.4 chassis bays
- Frame-included configuration delivers a complete bolt-in cooling assembly without additional parts
- Aluminum core pairs with plastic tanks for a balance of thermal performance and reduced weight
- M6 and M8 U-Clip kit with bolts, nuts, sleeves, and grommets for a straightforward bracket mount
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Core Material | Aluminum |
|---|---|
| Tank Material | Plastic |
| Type | Downflow |
| Row | 2 |
| Height | 35-1/16 in. |
| Width | 38-1/2 in. |
| Thickness | 2-1/16 in. |
| Inlet | 2-1/2 in. |
| Outlet | 2-1/2 in. |
| TOC | 12 in. Engine Side |
| Kit | 4x Bolts, 4x nuts, 4x sleeve, 8x grommets, 11x M6 U-Clips, 4x M8 U-Clips |
| Interchange |
|---|
| 1003849 |
| 1003849D |
| 1003850 |
| 1003850D |
| 1004004B |
| 1102845 |
| 1110200019 |
| 238847 |
| 238848 |
| 3818333 |
| 437560P |
| 800128 |
| 800128PT |
| 800128PTWF |
| HDC011225PAF |
| HDC011230PA |
| HDC011230PAFB |
| SC238848 |
| TXE1003849D |
| TXE1003850D |
| TXE1004004B |
The Radiator features an aluminum core with a plastic tank, engineered for Freightliner P4 Heavy Duty commercial vehicles. Designed for complete frame fitment, the unit delivers consistent thermal management and reliable operation across a wide range of engine configurations, with an included hardware installation kit.
