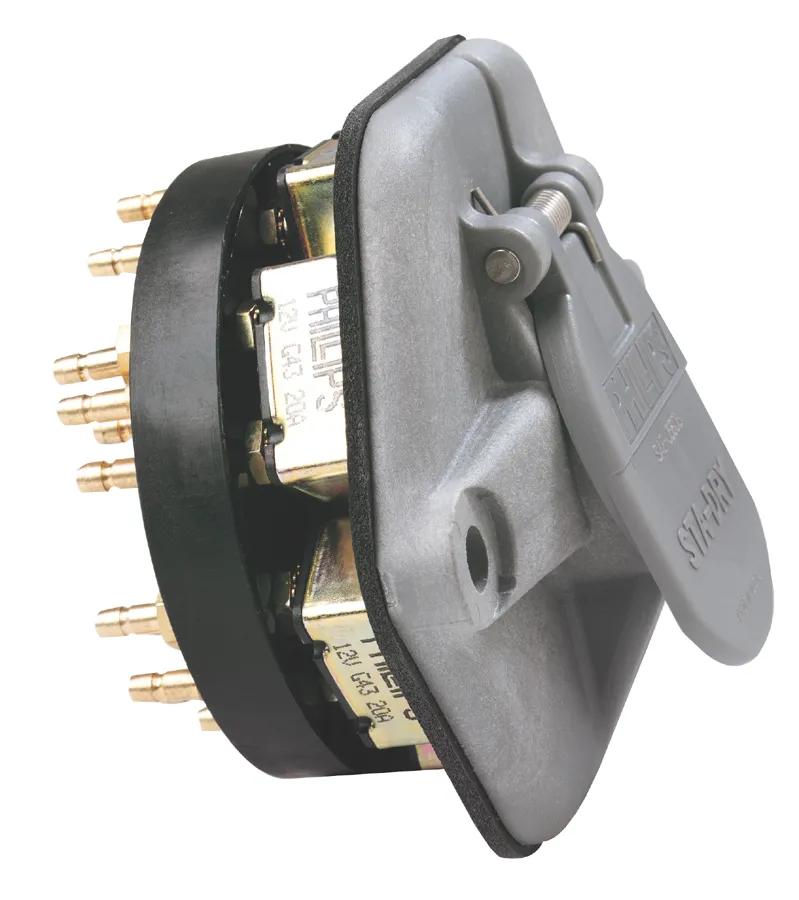

Pin Accepts 0.18" Bullet Terminals Stainless 28 Count - PHI16-77029-28
Part#: AAA474PHI16-77029-28
Features and Benefits
- Waterproof socketbreaker composite product type for accurate identification during service
- Configuration of 7-way for accurate identification during service
- Pin count of 28 at the connector interface
- Circuit breakers of without circuit breakers for the product specification
- Connections per circuit of up to 4 connections on 1 circuit for the product specification
- Hinge pin material of stainless for the product specification
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Circuit Breakers | Without Circuit Breakers |
|---|---|
| Connections per Circuit | Up to 4 Connections on 1 Circuit |
| Hinge Pin Material | Stainless |
| Nose Box | Single Nose Box |
| Nosebox Depth | 3.50 in. |
| Pin Count | 28.00 |
| Pin Type | Solid Pins |
| Terminal Size | Accepts 0.18 in. Bullet Terminals |
| Product Type | Waterproof Socketbreaker Composite |
| Interchange |
|---|
| 15400 |
| 16760 |
| 16763228 |
| 167702928 |
| 16770928 |
| PHL167702928 |
| PHM167702928 |
No data found.
The 28-Position Waterproof Socketbreaker is a 7-way composite design with solid pins, accepting 0.18" bullet terminals, with a 3.50" nosebox and stainless hinge pin, without circuit breakers, engineered for reliable trailer electrical connection on Heavy Duty commercial vehicles.
