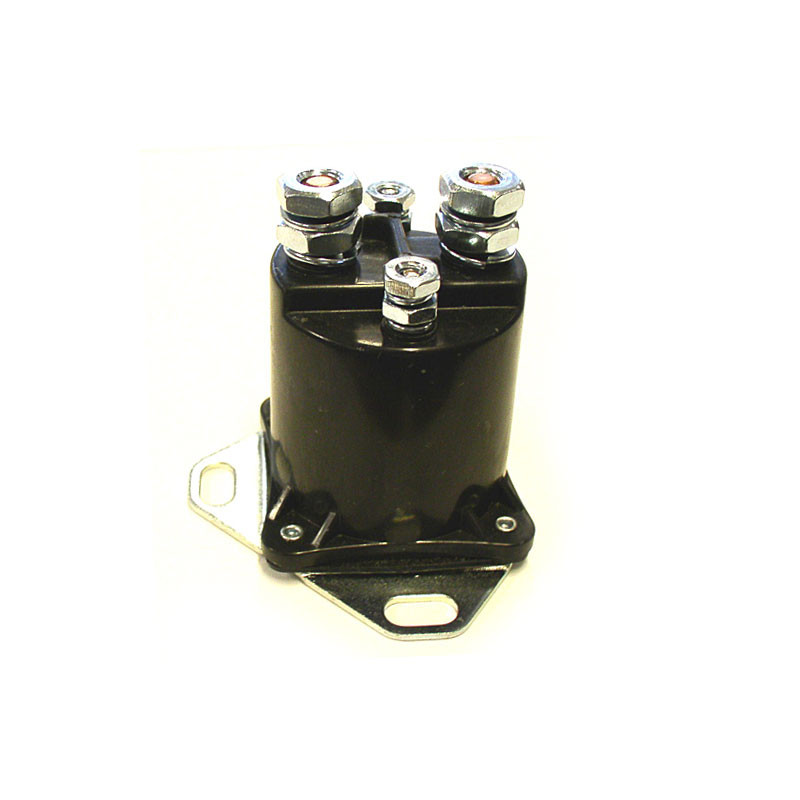

Switch 12 V DC 4.00" Plated Steel - 52.327
Part#: AAA485327
Features and Benefits
- Switch type of starter solenoid or solenoid switches for accurate product classification
- Height of 4" for the product body dimension
- Width of 2.50" for the product body dimension
- Circuit configuration of SPST, off-on or SPST (single pole, single throw) for the switch electrical classification
- Terminal quantity of (2) 5/16"-24 main contact studs or (2) 10-32 coil terminals at the switch interface
- Terminal type of NO.10-32 thread or 5/16"- 24 thread for the switch connection interface
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Duty Cycle | Continuous Duty |
|---|---|
| Voltage | 12 V DC |
| Amperage Rating | 600 DC Amp |
| Surge/Inrush Amperage Rating | 100 A |
| Circuit Configuration | Spst, Off-On |
| Contact Type | Normally Open |
| Housing Material | Plated Steel |
| Terminal Type | No.10-32 Thread |
| Bracket Mounting Holes | 5/16" X 19/32", 2 1/8" On Centers |
| Switch Type | Starter Solenoid |
| Housing Material | Phenolic |
| Housing Material | Molded Plastic / Bakelite |
| Grounding | Insulated (Separate Ground Terminal) |
| Terminal Quantity | (2) 5/16"-24 Main Contact Studs; (2) #10-32 Coil Terminals |
| Bracket Type | Integrated L-Bracket |
| Height | 4.00 in. |
| Width | 2.50 in. |
| Interchange |
|---|
| 15-324 |
| 24107 |
| 24117-24 |
| SAS-4401A |
| SAS-4408A |
| SO-51181 |
No data found.
The Starter Solenoid is normally-open SPST, 600 DC amps, 12V / 24V DC, measuring 4.00" x 2.50", engineered for reliable starting on Heavy Duty commercial vehicles. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations.
