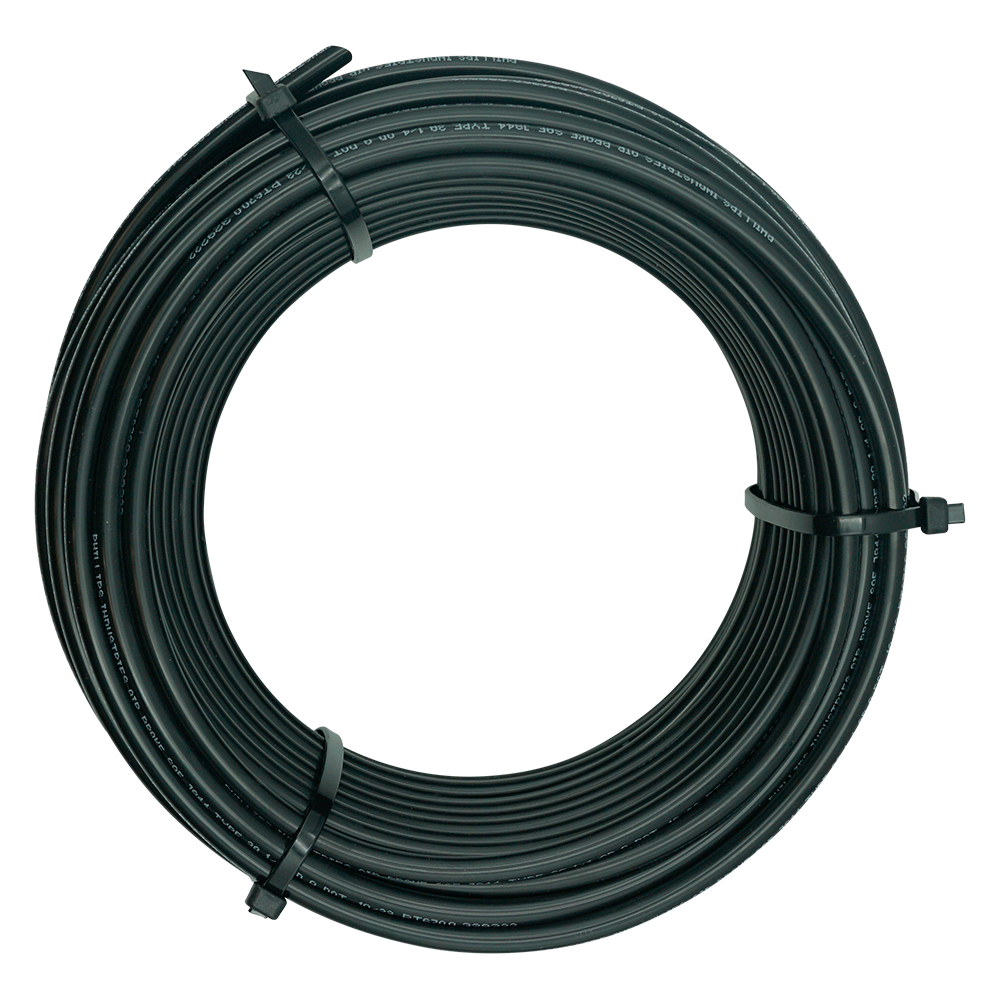

Air Brake Hose 100' Nylon 150 psi Single Wall - PHI11-250
Part#: AAA509PHI11-250
Features and Benefits
- Material of nylon construction for the product body
- Length of 100' for the product dimensional specification
- Outer diameter of 0.25" for correct fitment dimension
- Size of 1 for the product dimensional classification
- Compliance with SAE J844 type "A" specifications for confirmed regulatory standards
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Outside Diameter | 0.25 in.. |
|---|---|
| Length | 100 ft |
| Material | Nylon |
| Maximum Operating Pressure | 150 psi |
| Burst Pressure | 1,200 psi |
| Temperature Range | 40°F To 200°F |
| Regulations | SAE J844, Type A & B; DOT Fmvss 571.106 |
| Minimum Bend Radius | 1.00 in.. |
| Wall Type | Single Wall |
| Product Description | Air Brake Tubing - 1/4"; 100 Ft.; Black; Boxed; Meets SAE J844 Type "A" Specifications; Operating Temperature Range -40°F To 200°F (-40°C To 93°C) |
| Tubing Size | 0.25 in. |
| Standard | Meets SAE J844 Type "A" Specifications |
| Operating Temperature Range | 40°F To 200°F (-40°C To 93°C) |
| Interchange |
|---|
| 020064 |
| 1000-ABT14BLK100 |
| 11-250 |
| 11021 |
| 177.5004 |
| 1924-01-1 |
| 246113 |
| 26017 |
| 34004 |
| 417196C |
| 4247-04-BK-100 |
| NT10003BK100 |
| NT10004BK100 |
| PFT4A |
| POP3 31162 |
| Year | Make | Model | Engine |
|---|---|---|---|
| FREIGHTLINER | |||
| MACK | |||
| VOLVO |
The Air Brake Hose is engineered for reliable system connection on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations.
