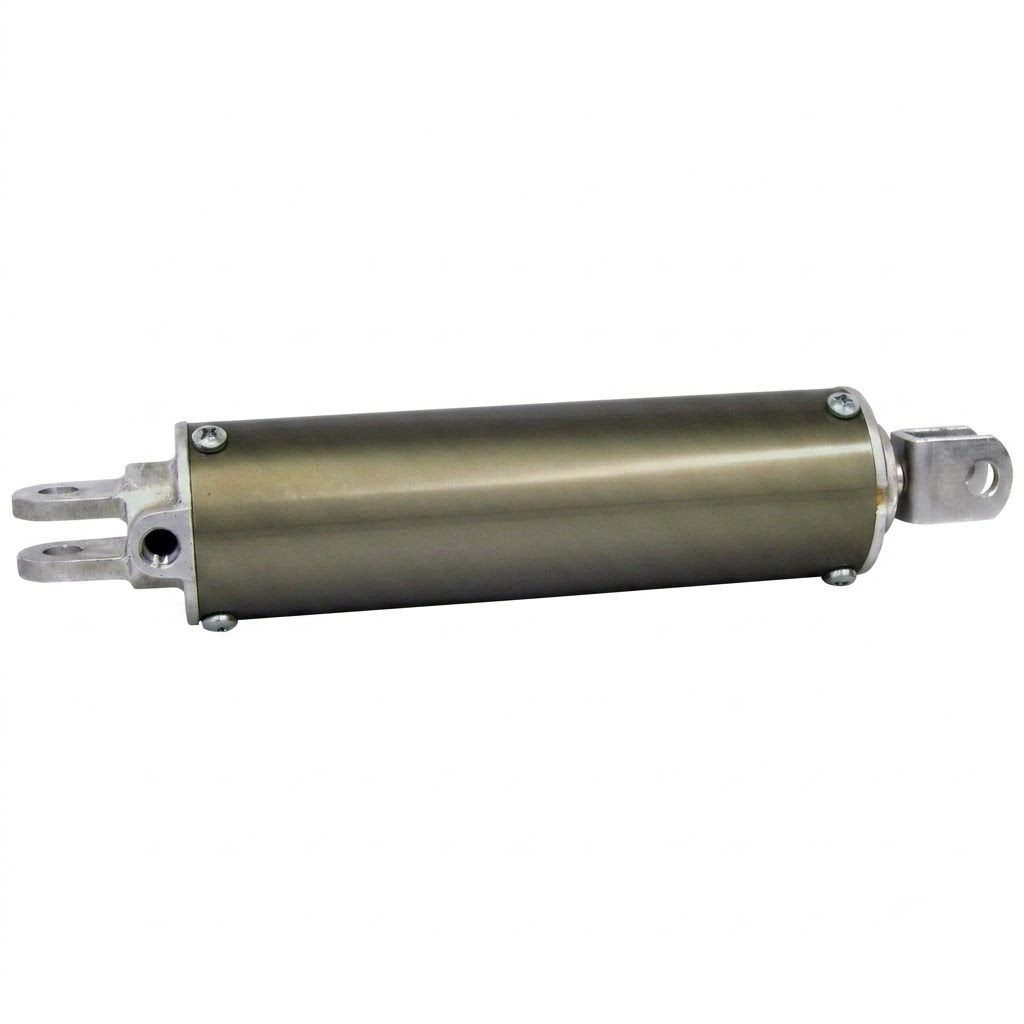

Air Cylinder 2.50" Collapsed Length 12.72" Aluminum Version Kp2524A 100 psi - KP2524R
Part#: AAA511KP2524R
Features and Benefits
- For sliding 5th wheels product type for accurate identification during service
- Extended length of 19.80" for the cylinder travel specification
- Collapsed length of 12.72" for the cylinder retracted dimension
- Stroke of 6.75" for the cylinder travel distance
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Description | Air Cylinder Holland |
|---|---|
| Collapsed Length | 12.72 in. |
| Extended Length | 19.80 in. |
| Stroke | 6.75 in. |
| Bore Size | 2.50 in. |
| Port Size | 0.25 in. FTP |
| Operating Pressure | 100 PSI |
| Bore | 2.50 in. |
| Retracted Length | 12.62 in. |
| Outer Diameter | 2.50 in. |
| Material | Aluminum Version: Kp2524A |
| Unit Of Measure | Each |
| Item Length | 14.85 |
| Item Width | 3.50 |
| Item Height | 3.45 |
| Type | For Sliding 5Th Wheels |
| Interchange |
|---|
| 100101 |
| 25240 |
| 291405 |
| 3889XA2524R |
| 401267 |
| ABPKP2524R |
| HLDXA2524R |
| HOHXA2524R |
| HOLXA2524R |
| KP2524A |
| KP2524RA |
| SAFXA2524R |
| VEL100101 |
| XA11699 |
| XA11699B |
| XA2524R |
No data found.
The Holland Air Cylinder is 12.72" collapsed and 19.80" extended, 2.50" bore, 100 psi, for sliding fifth wheel use, engineered for reliable slider operation on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations.
