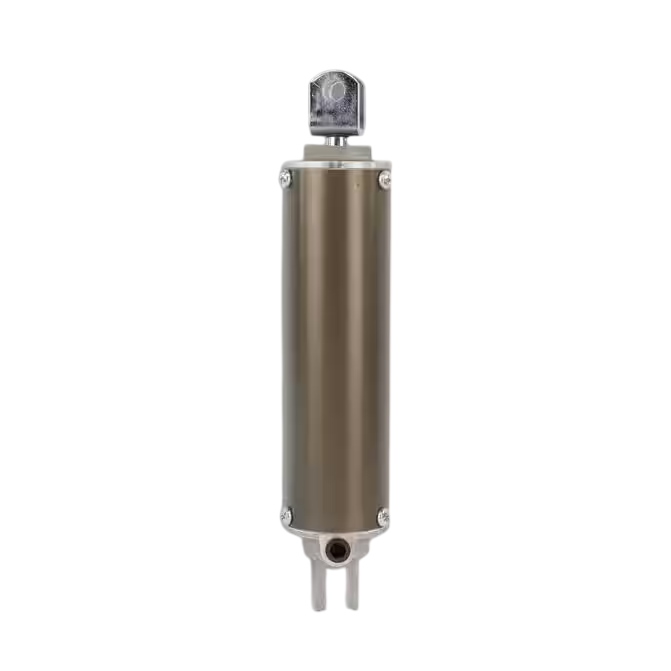

Air Cylinder 2.50" Extended Length 19.65" - 2524P
Part#: AAA5112524P
Features and Benefits
- Extended length of 19.65" for the cylinder travel specification
- Collapsed length of 12.75" for the cylinder retracted dimension
- Stroke of 6.77" for the cylinder travel distance
- Inner diameter of 2.50" for correct bore fitment
- Function of air-actuated slide-lock release cylinder for the product operating purpose
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Function | Air-Actuated Slide-Lock Release Cylinder |
|---|---|
| Extended Length | 19.65 in. |
| Retracted Length | 12.75 in. |
| Stroke | 6.77 in. |
| Bore | 2.50 in. |
| Port | 1/4" NPT |
| Construction | Painted Steel Construction |
| Body | Corrosion-Resistant Body With Moisture-Resistant Seals |
| Interchange |
|---|
| 100101 |
| 25240 |
| 291405 |
| 370XA12057 |
| 3889XA12057 |
| 401267 |
| FP2524 |
| HLDXA12057 |
| HLXA12057 |
| HOHRK11713 |
| HOHXA12057 |
| HOLXA12057 |
| HOLXA2524RB |
| KP2524 |
| PK2524R |
| R2524R |
| RK11713 |
| RK2524R16L |
| SAFRK11713 |
| XA11713 |
| XA12057 |
| XA2524R |
| XA2524R134 |
No data found.
The Air Cylinder is engineered for reliable pneumatic actuation on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations. The component meets OEM specification.
