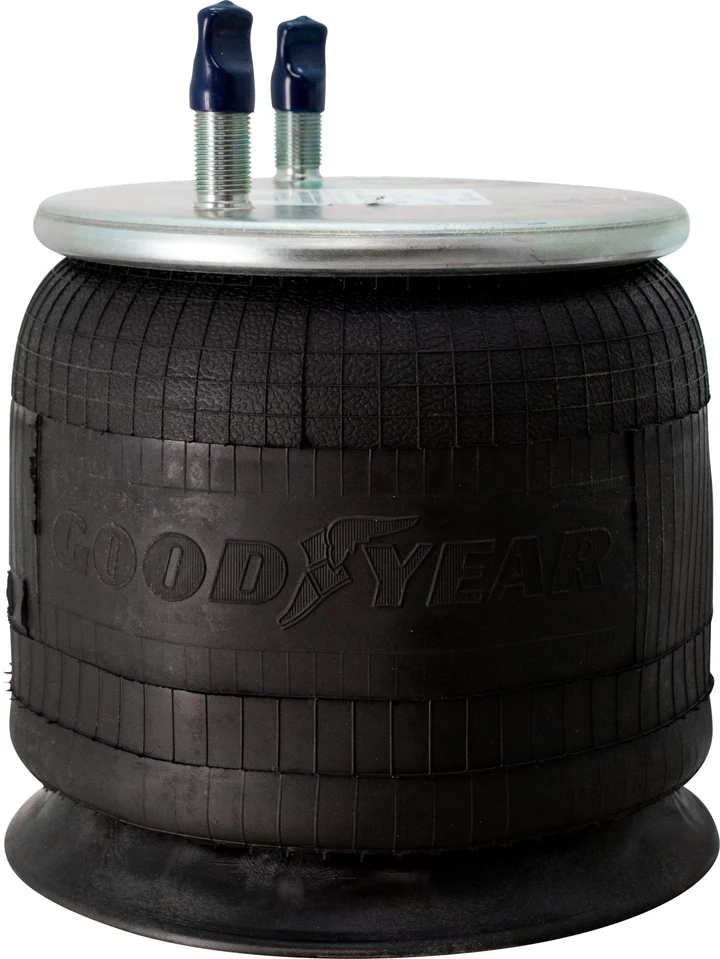

Air Spring 9.00" Rolling Lobe 18.90" - 09762
Part#: AAA51609762
Features and Benefits
- Maximum height of 18.90" for the product dimensional specification
- Top plate diameter of 9" for correct fitment dimension
- Bottom plate diameter of 10.20" for correct fitment dimension
- Bumper configuration of yes for the air spring internal stop
- Bottom plate and piston type of c, composite for the air spring base configuration
- Top plate stud quantity of 2 for the air spring mounting configuration
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Bellow Type | Rolling Lobe |
|---|---|
| Bottom Plate / Piston Type | C - Composite |
| Top Plate Diameter | 9.00 in. |
| Top Plate Hole / Stud Quantity | 2.00 |
| Top Plate C To C Diameter | 5.50 in. |
| Bottom Plate Diameter | 10.20 in. |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Hole / Stud Quantity | 1.00 |
| Maximum Height | 18.90 in. |
| Minimum Height | 7.90 in. |
| Bumper | Yes |
| Interchange |
|---|
| 1R12-1179 |
No data found.
The Air Spring is engineered for reliable suspension on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations. The component meets OEM specification.
