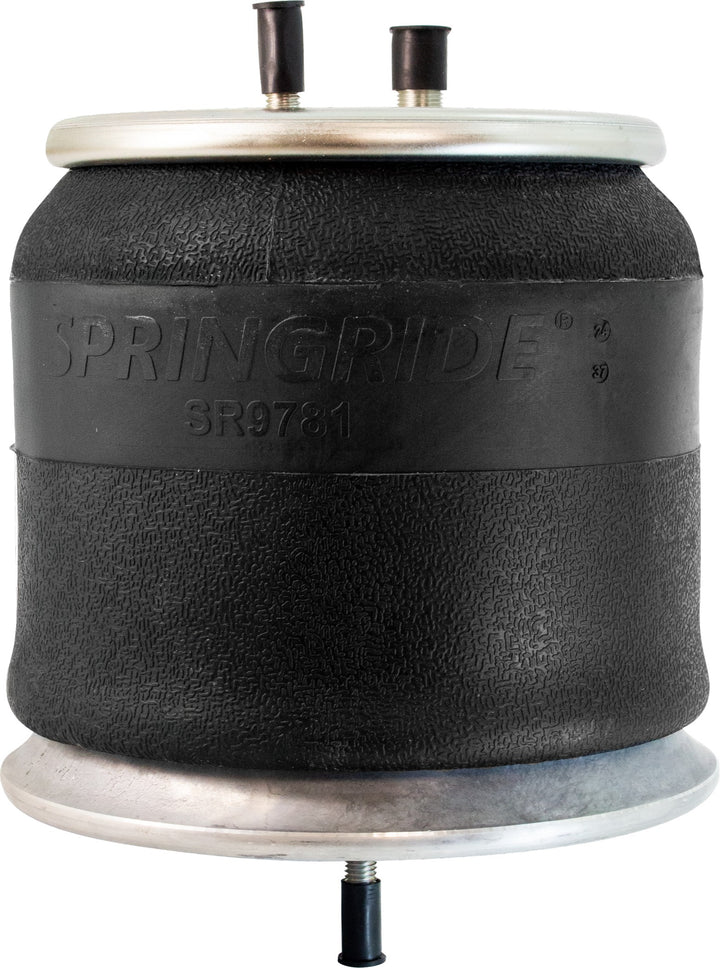

Air Spring Rolling Lobe 8.75" - 09777
Part#: AAA51609777
Features and Benefits
- Air spring type of rolling lobe for accurate product identification
- Extended height of 23" for the product dimensional specification
- Compressed height of 8.75" for the product dimensional specification
- Piston width of 10.62" for correct fitment dimension
- Top plate width of 9" for the air spring top fitment dimension
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Air Spring Type | Rolling Lobe |
|---|---|
| Extended Height | 23.00 in. |
| Compressed Height | 8.75 in. |
| Top Plate Number | 3191.00 |
| Top Plate Width | 9.00 in. |
| Piston Number | 9607.00 |
| Piston Width | 10.62 in. |
| Bellows Number | 1T15Zr-6 |
| Interchange |
|---|
| 161007 |
| 1R12-603 |
| 64266 |
| 681-320-0017 |
| 767555109649 |
| 85101151 |
| 8536 |
| 9 10S-16 |
| 9 10S-16 A 382 |
| A16-14004-000 |
| A16-17574-001 |
| A16-17574-002 |
| SC2750 |
| W013589781 |
No data found.
The Air Spring is engineered for reliable suspension on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations. The component meets OEM specification.
