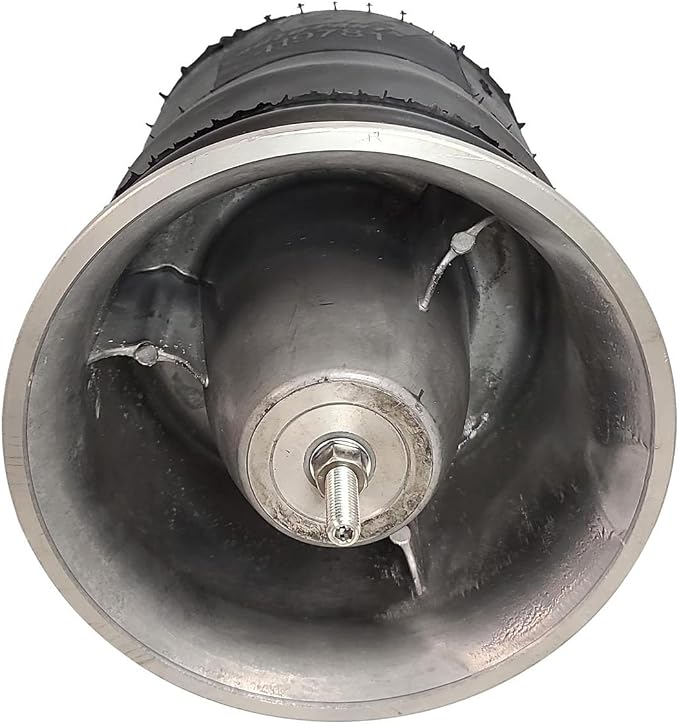

Air Spring-Bag 9.00" Top Plate Diameter Rolling Lobe 8.60" Min Height - 410.A9781
Part#: AAA501A9781
Features and Benefits
- Rolling lobe product type for accurate identification during service
- Bumper configuration of no for the air spring internal stop
- Bottom plate and piston type of aluminum for the air spring base configuration
- Pack quantity of 2 for the product kit contents
- Load lbs at 80 PSI of 7700 for the air spring load capacity
- Load lbs at 100 PSI of 76 for the air spring load capacity
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Type | Rolling Lobe |
|---|---|
| Automann Bellows# | 1Df23 |
| Firestone Bellows# | 1T15Xbzr-7.5 |
| Contitech Bellows# | 9 10S-16 |
| Triangle Bellows# | 6100.00 |
| Load (Lbs) @80 PSI | 7700.00 |
| Load (Lbs) @100 PSI | 76.00 |
| Natural Freq. (Cpm) | 12.50 |
| Bottom Plate Type | Aluminum |
| Top Plate Hole/Stud Quantity | 2.00 |
| Top Plate Diameter. (A) | 9.00 |
| Top Plate C To C Diameter. (B) | 6.20 |
| Bottom Plate Hole/Stud Quantity | 1.00 |
| Bottom #Bs | 10947.00 |
| Bumper | No |
| Min. Height | 8.60 |
| Max. Height | 23.00 |
| Max. Diameter | 12.60 |
| Interchange |
|---|
| 16-13840-000 |
| 16-14004-000 |
| 16-17575-000 |
| 16-19466-000 |
| 161007 |
| 1613840000 |
| 1614004000 |
| 1617575000 |
| 1619466000 |
| 1DF23 |
| 1R12-1082 |
| 1R12-603 |
| 1R121082 |
| 1R12603 |
| 1T15XBZR-7.5 |
| 566-24-3-108 |
| 6100 |
| 64266 |
| 681-320-0017 |
| 681-3200-017 |
| 6813200017 |
| 85101151 |
| 8536 |
| 9 10S-16 |
| 9 10S-16 A 382 |
| 9781 |
| A16-14004-000 |
| A16-14004-001 |
| A1614004000 |
| A1614004001 |
| A1615443000 |
| SC2750 |
| W01-358-9781 |
| W01-377-8527 |
| W01-377-8529 |
| W01-377-8536 |
| W01-377-9781 |
| W01-377-9783 |
| W013589781 |
| W013778527 |
| W013778529 |
| W013778536 |
| W013779781 |
| W013779783 |
No data found.
The air bag is engineered for reliable suspension on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations. The component meets OEM specification.
