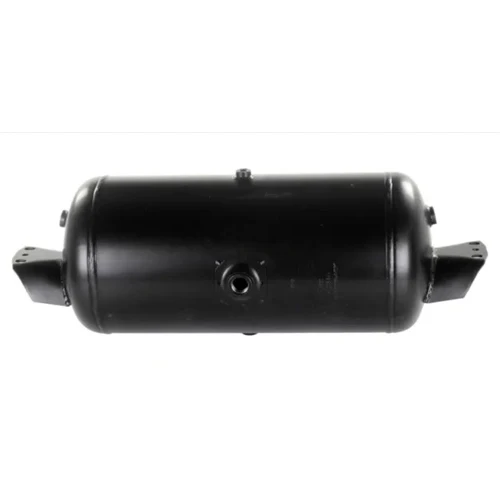

Air Tank 9.50" Length 27.50" 150 psi Standard NPT - 172.2001R
Part#: AAA5182001R
Features and Benefits
- Length of 27.50" for the product dimensional specification
- Diameter of 9.50" for correct fitment dimension
- Bracket orientation of type 1 for correct air tank mounting
- Application of trailer for the air tank system compatibility
- Main port configuration of 2 3/4" for correct air line connections
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Description | Air Tank 1488 Cubic In Vol 9.500In Dia |
|---|---|
| Volume | 14.88 Cubic In |
| Diameter | 9.50 in. |
| Product Name | Air Tank 1488 Cubic In Vol 9.500In Dia |
| A-Z Item Type | Air Tank - Universal - 9.5 In. Diameter |
| Diameter (In) | 9.50 in. |
| Bracket Orientation | Type 1 |
| Front Port (F2) | 3/4" NPT |
| Drain Port (D) | 1/4" NPT |
| End Ports (E) | (2) 3/8" NPT |
| Back Port (B1) | 3/4" NPT |
| Length | 27.50 in. |
| Reversible | Yes |
| Drain Port | Has Drain Port At Top And Bottom |
| Main Ports | (2) 3/4 Inch |
| Drain Ports | (1) 1/4 Inch |
| End Ports | (2) 3/8 NPT |
| Air Tank Capacity | 6.44 Gallon |
| Working Pressure | 150 PSI |
| Port Thread Type | Standard NPT |
| SAE Specification | SAE J10B |
| Dayton Number | 12-148856 |
| Hoosier Number | Ht-95156 |
| Sloan Number | 461002.00 |
| Tramec Number | 45904.00 |
| Product Description | Air Tank 1488 Cubic In Vol 9.500In Dia |
| Interchange |
|---|
| 0035104 |
| 11016 |
| 11217 |
| 11298 |
| 11301 |
| 12-148856 |
| 19840 |
| 2001A |
| 2001D |
| 2001L |
| 2001R |
| 45904 |
| 460169 |
| 461002 |
| E10736 |
| HT-95156 |
| HT9452 |
| HT9500 |
| HT9501 |
| HT9508 |
| HT9510 |
| HT95149 |
| HT9515 |
| HT95156 |
| HT95161 |
| HT9534 |
| HT9543 |
| HT9553 |
| HT9575 |
| HT9577 |
| HT9581 |
| HT9585 |
| HT9587 |
| S270 |
No data found.
The Air Tank has a 9.50" diameter, 27.50" long, 14.88", 150 psi, with main, end, and drain ports, meeting SAE J10B, engineered for reliable storage on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations.
