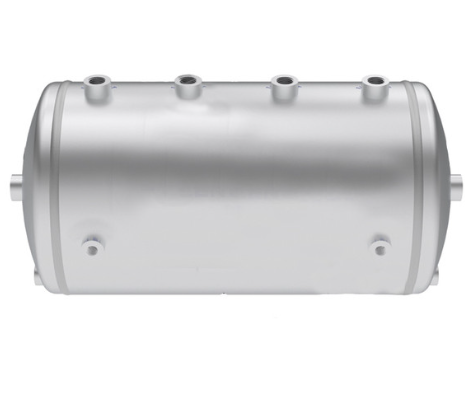

Air Tank 9.75" Length 19.50" Aluminum 150 psi 1/2" NPT 1/4" - 172.2950A

Air Tank 9.75" Length 19.50" Aluminum 150 psi 1/2" NPT 1/4" - 172.2950A

Part#: AAA5182950A

Features and Benefits

Material of aluminum construction for the product body
Overall dimensions of 20.5 x 11 x 11" for the product package size
Length of 19.50" for the product dimensional specification
Diameter of 9.75" for correct fitment dimension
Application of truck for the air tank system compatibility
Main port configuration of 4 1/2" NPT, 2 1/4" NPT for correct air line connections

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

Use With	Truck
Diameter	9.75 in.
Length	19.50 in.
Main Ports	(4) 1/2 Inch NPT, (2) 1/4 Inch NPT
End Ports	(2) 1/2 Inch NPT, (2) 1/4 Inch NPT
Number Of Ports	10.00
Working Pressure	150 psi
Material	Aluminum
Diameter (In)	9.50 in.
Chambers	Single
Tank Material	Aluminum
Side Ports	(4) 1/2" NPT, (2) 1/4" NPT
End Ports (A)	(1) 1/2" NPT, (1) 1/4" NPT
Tank End Ports (B)	(1) 1/2" NPT, (1) 1/4" NPT

Interchange

889626531200
K239-2950
K2392950

Year	Make	Model	Engine

	KENWORTH

The Air Tank is engineered for reliable storage on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations. The component meets OEM specification.
