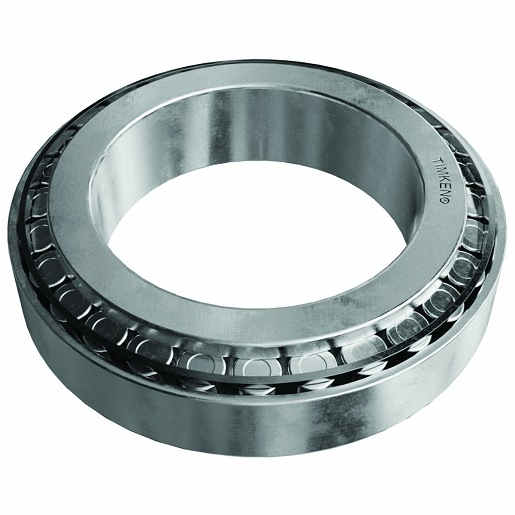

Bearing Round Alloy Steel 580 Cone Number - SET401

Bearing Round Alloy Steel 580 Cone Number - SET401

Part#: AAA526SET401

Features and Benefits

Tapered roller bearing product type for accurate identification during service
Bearing type of roller bearing for accurate component identification
Material of alloy steel construction for the product body
Configuration of one for the valve design
Style of cone and cup for the product design configuration
Operating temperature range of standard for the product thermal rating

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

Material	Alloy Steel
Bearing Number	Set401
Bearing Type	Roller Bearing
Type	Tapered Roller Bearing
Bore Type	Round
Style	Cone & Cup
Cone Number	580.00
Cup Number	572.00
Configuration	One
Lubrication	W/O Oil Hole
E (Axial Load Factor)	0.40
Y2 (Axial Load Factor)	1.49
Enclosure	Open
Operating Temperature Range	40 To 250 ºF / -40 To 120 ºC
B	3.2500 In / 82.550 Mm
D	5.5115 In / 139.992 Mm
Wo	1.1250 In / 28.575 Mm
Wi	1.4375 In / 36.512 Mm
W	1.4375 In / 36.512 Mm
R	0.1300 In / 3.300 Mm
A (Effective Load Center)	0.2100 In / -5.300 Mm
U	3.86 In / 98.0 Mm
V	3.58 In / 91.0 Mm
X	5.24 In / 133.0 Mm
Z	4.92 In / 125.0 Mm
Unit Of Measure	Imperial / Metric
Set Components	580/572
Margo Index	Set401 Timken
(D) Inner Diameter	82.55
(D) Outer Diameter	139.99
(B) Width	36.10
(T) Width	36.51
(C) Width P. Outer	28.58
(R Max) Mounting Cut	3.50
Type Of Bearing	Tapered
Sealing	Without Sealing
Number Of Rows	Single Row
Type Of Basket	Steel Basket
Basket Guidance	On Rolling Elements
Inner Ring Hole	Standard Hole (Cylindrical)
Inner Ring Execution	Standard (Non-Extended)
Shape Of Outer Surface	Flat Outer Surface
Outer Ring Design	Standard
Material Of The Rings	Bearing Steel
Material For Turned Elements	Bearing Steel
Accuracy Class	Normal / Standard
Operating Temperature	Standard

Interchange

000 981 56 05
002 981 00 05
004 981 46 05
004 981 47 05
004 981 48 05
09 59 901 082
1525748
181299
181299+181125
182.401
317
366.100.4200
380890
3945030
521
572
572036
580
7132203
8004572930
85126338
9000930260
A 004 981 46 05
A1228Q1317
MS19081
TAJAA 1238 A

Year	Make	Model

2017	FORD	F-750
2016	FORD	F-750
2015	FORD	F-750
2013	FORD	F-750
2013	FREIGHTLINER	M2 106
2013	FREIGHTLINER	M2 112
2013	HINO	258ALP
2013	HINO	268A
2013	HINO	338
2012	FORD	F-750
2012	FREIGHTLINER	M2 106
2012	FREIGHTLINER	M2 112
2012	HINO	258ALP
2012	HINO	268A
2012	HINO	338
2011	FORD	F-750
2011	FREIGHTLINER	M2 106
2011	FREIGHTLINER	M2 112
2011	HINO	258ALP
2011	HINO	268A
2011	HINO	338
2011	ISUZU	FTR
2011	ISUZU	FVR
2010	FORD	F-750
2010	FREIGHTLINER	M2 106
2010	FREIGHTLINER	M2 112
2010	HINO	258ALP
2010	HINO	268A
2010	HINO	338
2010	ISUZU	FTR
2010	ISUZU	FVR
2009	FORD	F-750
2009	FREIGHTLINER	M2 106
2009	FREIGHTLINER	M2 112
2009	HINO	258ALP
2009	HINO	268A
2009	HINO	338
2009	ISUZU	FTR
2009	ISUZU	FVR
2008	FORD	F-750
2008	FREIGHTLINER	M2 106
2008	HINO	258ALP
2008	HINO	268A
2008	HINO	338
2008	ISUZU	FTR
2008	ISUZU	FVR
2007	FORD	F-750
2007	FREIGHTLINER	M2 106
2007	HINO	338
2007	ISUZU	FTR
2007	ISUZU	FVR
2006	FORD	F-750
2006	FREIGHTLINER	M2 106
2006	HINO	338
2006	ISUZU	FTR
2006	ISUZU	FVR
2005	FORD	F-750
2005	FREIGHTLINER	FL70
2005	FREIGHTLINER	M2 106
2005	HINO	338
2005	ISUZU	FTR
2005	ISUZU	FVR
2004	FORD	F-750
2004	FREIGHTLINER	FL70
2004	FREIGHTLINER	M2 106
2004	ISUZU	FTR
2004	ISUZU	FVR
2003	FORD	F-650
2003	FORD	F-750
2003	FREIGHTLINER	FL70
2003	FREIGHTLINER	M2 106
2003	ISUZU	FTR
2003	ISUZU	FVR
2002	FORD	F-650
2002	FORD	F-750
2002	FREIGHTLINER	FL70
2002	ISUZU	FTR
2002	ISUZU	FVR
2001	FORD	F-650
2001	FORD	F-750
2001	FREIGHTLINER	FL70
2001	ISUZU	FTR
2001	ISUZU	FVR
2000	FORD	F-650
2000	FORD	F-750
2000	FREIGHTLINER	FL70
2000	ISUZU	FTR
2000	ISUZU	FVR
1999	FREIGHTLINER	FL70
1999	ISUZU	FTR
1999	ISUZU	FVR
1998	FREIGHTLINER	FL70
1998	ISUZU	FTR
1998	ISUZU	FVR
1997	FREIGHTLINER	FL70
1997	ISUZU	FTR
1997	ISUZU	FVR
1996	FREIGHTLINER	FL70
1996	ISUZU	FVR
1995	FREIGHTLINER	FL70
1995	ISUZU	FVR
1994	FREIGHTLINER	FL70
1993	FREIGHTLINER	FL70
1992	FREIGHTLINER	FL70
1990	FORD	CF6000
1989	FORD	CF6000
1988	FORD	CF6000
1987	FORD	CF6000

The Bearing is engineered for reliable load support on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations. The component meets OEM specification.
