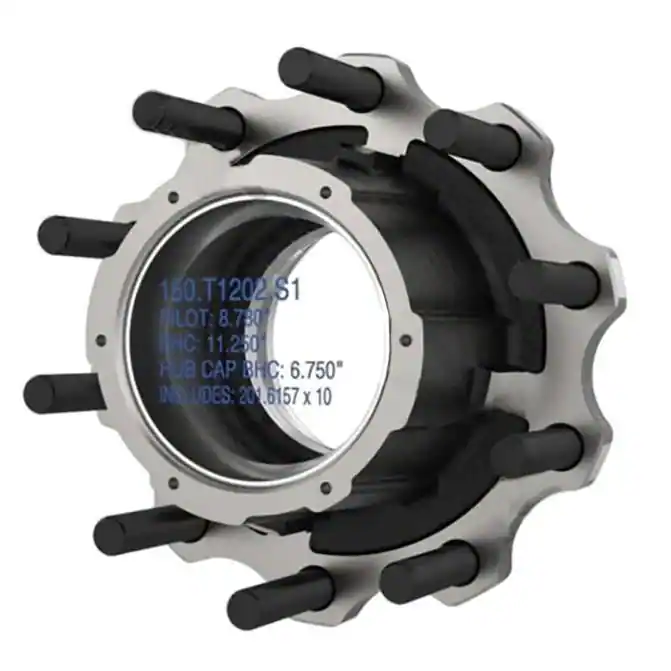

Bearing 11.25" Outboard Mount Drums - 150.T1202.S1
Part#: AAA526T1202.S1
Features and Benefits
- Bolt circle holes of 10-hole for the product specification
- Bolt circle diameter of 11.25" for the product specification
- ABS exciter ring pilot of 8.78" for the product specification
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Unit Of Measure | Each |
|---|---|
| Item Length | 14.25 |
| Item Width | 14.25 |
| Item Height | 9.50 |
| Studs | 201.62 |
| Bolt Circle Holes | 10-Hole |
| Bolt Circle Diameter | 11.25 in. |
| ABS Exciter Ring Pilot | 8.78In |
| Inner And Outer Bearing | Hm518445 |
| Inner And Outer Race | Hm518410 |
| Drum Mount Type | Outboard Mount Drums |
| Hub Cap Holes | 6-Hole |
| Hub Cap Bolt Circle | 6-1/2In |
| Hubs By | Trailer Axle |
| Drum Mounting | Outboard |
| ABS | Yes |
| Body Type | Cast |
| Overall Height | 8.15 in. |
| Distance Between Cups | 4.500" |
| Pilot | 8.780" |
| Bolt Holes | 10.00 |
| Includes Wheel Studs | Yes |
| Hubcap Bolt Circle Diameter | 6.75 in. |
| Description | Hub, 10H Uni L/Stud Propar |
| Interchange |
|---|
| 0415968009 |
| 10-201.6157 |
| 10026199 |
| 150.ABS1554 |
| 150.T1202.S2 |
| 182.HM518410 |
| 234315T |
| HT821RD |
| PROHUB-01043LT |
No data found.
The Bearing is engineered for reliable load support on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations. The component meets OEM specification.
