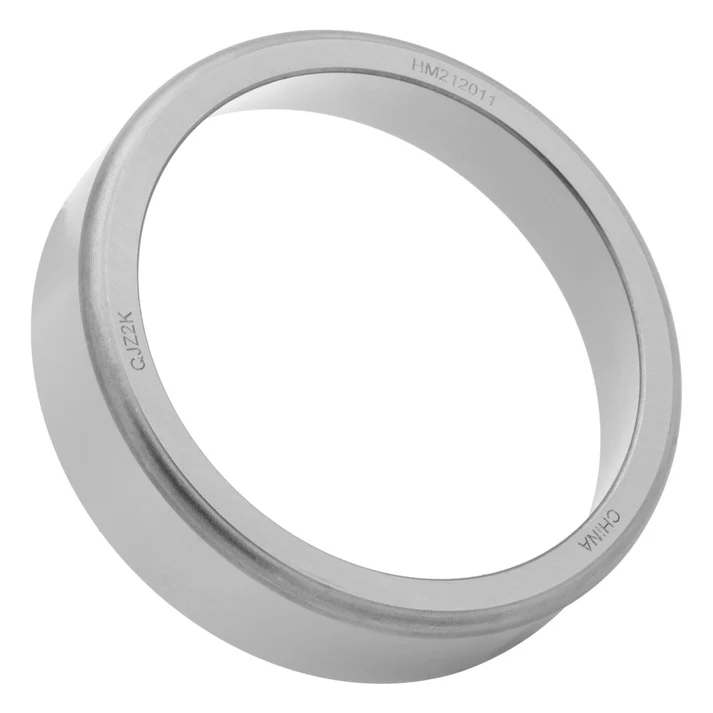

Bearing Cone-Cup 4.81" 0.13" - HM212011
Part#: AAA527HM212011
Features and Benefits
- Tapered roller bearing, single cup product type for accurate identification during service
- Bearing type of imperial taper roller bearing for accurate component identification
- Overall dimensions of 2.5x4.8125x1.50" for the product package size
- Outer diameter. d of 4.81" for the product specification
- Outer ring width c of 1.17" for the product specification
- E factor 1 of 0.34 for the product specification
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Outer Diameter. (D) | 4.81 in. |
|---|---|
| Outer Ring Width (C) | 1.17 in. |
| E Factor 1 | 0.34 |
| Y Factor 2 | 1.78 |
| Max Housing Fillet Radius 3 | 0.13 in. |
| Housing Backing Shoulder Diameter. - Frontface (Da) | 4.60 in. |
| Housing Backing Shoulder Diameter. - Backface (Db) | 4.25 in. |
| Geometry Factor (Cg) 4 | 0.08 |
| Unit Of Measure | Imperial |
| Type | Tapered Roller Bearing - Single Cup |
| Inside Diameter (Inch) | 1.05 in. |
| Outside Diameter (Inch) | 0.26 in. |
| Width (Inch) | 0.55 in. |
| Cage Type | Steel |
| Seals Or Shields | Open Type |
| Bearing Type | Imperial Taper Roller Bearing |
| Series | Heavy-Medium Series |
| Design Unit | Inch |
| Cage Material | Stamped Steel |
| D - Bore | 2.62 in. |
| D - Cup Outer Diameter | 4.81 in. |
| B - Cone Width | 1.51 in. |
| C - Cup Width | 1.17 in. |
| T - Bearing Width | 1.50 in. |
| Interchange |
|---|
| hm 212011 |
| hm 212046 |
| hm212046/hm212011 |
| HM212049 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 2017 | FORD | F53 | |
| 2016 | FORD | F53 | |
| 2015 | FORD | F53 | |
| 2014 | FORD | F53 | |
| 2013 | FORD | F53 | |
| 2012 | FORD | F53 | |
| 2011 | FORD | F53 | |
| 2011 | ISUZU | F SERIES TRUCK | |
| 2010 | FORD | F53 | |
| 2010 | ISUZU | F SERIES TRUCK | |
| 2009 | FORD | F53 | |
| 2009 | ISUZU | F SERIES TRUCK | |
| 2008 | FORD | F53 | |
| 2008 | ISUZU | F SERIES TRUCK | |
| 2008 | ISUZU | H SERIES TRUCK | |
| 2007 | ISUZU | F SERIES TRUCK | |
| 2006 | ISUZU | F SERIES TRUCK | |
| 2005 | ISUZU | F SERIES TRUCK | |
| 2004 | ISUZU | F SERIES TRUCK | |
| 2003 | ISUZU | F SERIES TRUCK | |
| 2002 | ISUZU | F SERIES TRUCK | |
| 2001 | ISUZU | F SERIES TRUCK | |
| 2000 | ISUZU | F SERIES TRUCK | |
| 1999 | ISUZU | F SERIES TRUCK | |
| 1998 | ISUZU | F SERIES TRUCK | |
| 1997 | ISUZU | F SERIES TRUCK | |
| 1996 | ISUZU | F SERIES TRUCK | |
| 1995 | ISUZU | F SERIES TRUCK | |
| 1994 | ISUZU | F SERIES TRUCK | |
| 1993 | ISUZU | F SERIES TRUCK | |
| 1992 | ISUZU | F SERIES TRUCK | |
| 1991 | ISUZU | F SERIES TRUCK | |
| 1990 | ISUZU | F SERIES TRUCK | |
| 1989 | ISUZU | F SERIES TRUCK | |
| 1988 | ISUZU | F SERIES TRUCK |
The Bearing Cone/Cup is engineered for reliable load support on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations. The component meets OEM specification.
