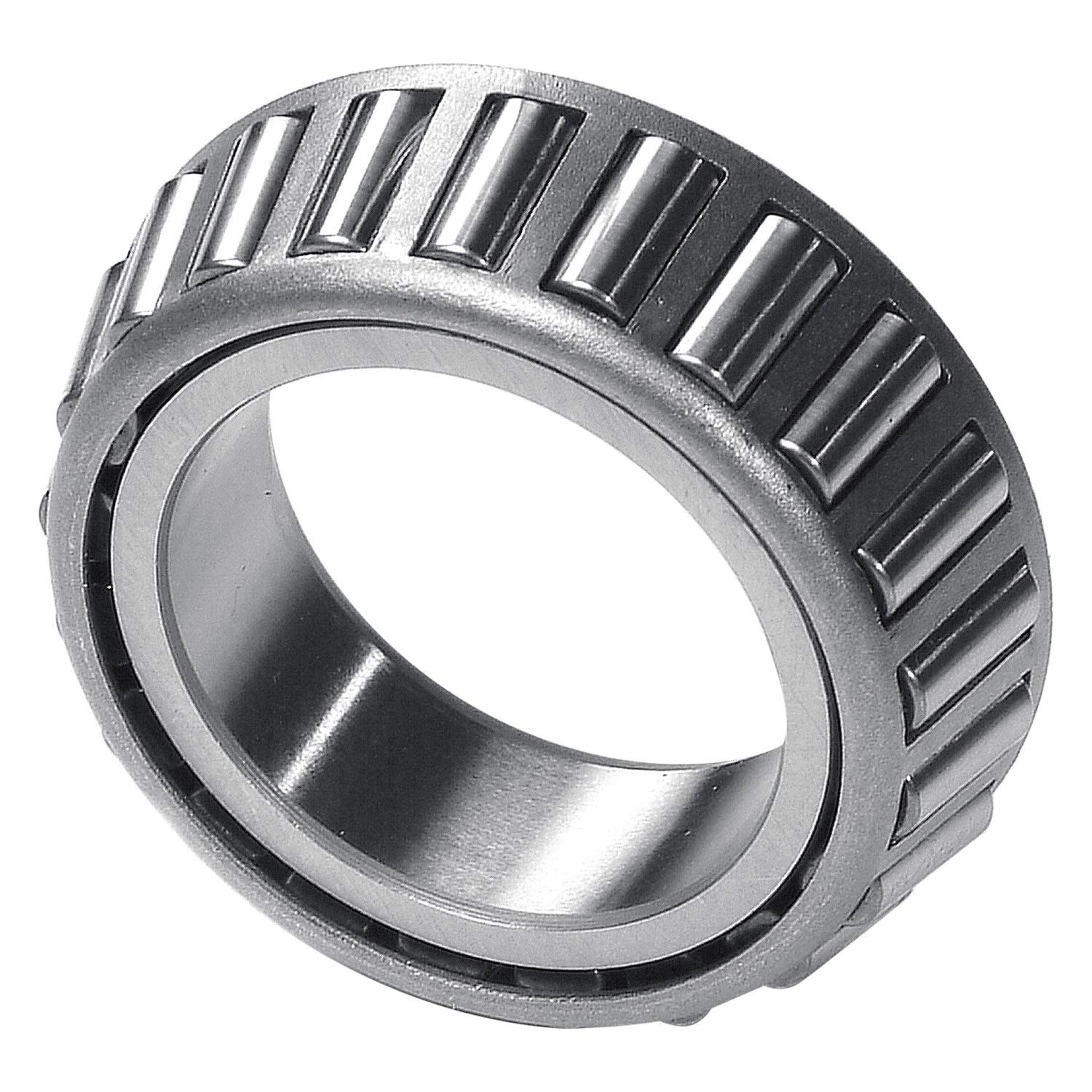

Bearing Cone-Cup 5.79" / 0.14" / Sealed - HM218248
Part#: AAA527HM218248
Features and Benefits
- Roller bearing product type for accurate identification during service
- Bearing type of taper for accurate component identification
- K factor factor of 1.76 for the bearing load rating
- G1 factor factor of 168.2 for the bearing load rating
- G2 factor factor of 34.7 for the bearing load rating
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Unit Of Measure | Imperial |
|---|---|
| Bore (D) | 3.54 in. / 3.54 in. |
| Outer Diameter. (D) | 5.79 in. / 5.79 in. |
| Width (T) | 1.57 in. / 1.57 in. |
| E Factor | 0.33 |
| K Factor | 1.76 |
| Y Factor | 1.80 |
| Inner Ring Width (B) | 1.57 in. / 1.57 in. |
| Outer Ring Width (C) | 1.28 in. / 1.28 in. |
| Effective Center Location | 0.34 In / -8.6 Mm |
| Max Shaft Fillet Radius | 0.28 in. / 0.28 in. |
| Max Housing Fillet Radius | 0.14 in. / 0.14 in. |
| Shaft Backing Shoulder Diameter. - Frontface (Da) | 3.90 in. / 3.90 in. |
| Shaft Backing Shoulder Diameter. - Backface (Db) | 4.41 in. / 4.41 in. |
| Housing Backing Shoulder Diameter. - Frontface (Da) | 5.57 in. / 5.55 in. |
| Housing Backing Shoulder Diameter. - Backface (Db) | 5.24 in. / 5.24 in. |
| Cage Location Rel. To Bf (Aa) | 0.04 In / 1 Mm |
| Cage Location Rel. To Ff (Ab) | 0.14 In / 3.6 Mm |
| G1 Factor | 168.20 |
| G2 Factor | 34.70 |
| Geometry Factor (Cg) | 0.09 |
| Mfr # | Hm218248 |
| Zoro # | G802039335 |
| Description | Tapered Roller Bearing Cone |
| Type | Tapered Roller Bearing |
| Component | Cone/Cup Set |
| Product Type | Roller Bearing |
| Inside Diameter | 3.54 in. |
| Bore Type | Parallel |
| Roller Material | Steel |
| Cage Material | Steel |
| Cone Width | 1.28 in. |
| Outside Diameter | 5.79 in. |
| End Type | Sealed Bearing |
| Standards/Approvals | No |
| Bearing Type | Taper |
| Rs Stock No | 134-7518 |
| Series | Ts (Tapered Single) |
| Inner Diameter Range | 0.31 in. to 34.00 in. |
| Outer Diameter Range | 1.26 in. to 41.73 in. |
| Interchange |
|---|
| HM218210 |
| HM218248/HM218210 |
| SET413 |
No data found.
The Bearing Cone/Cup is engineered for reliable load support on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations. The component meets OEM specification.
