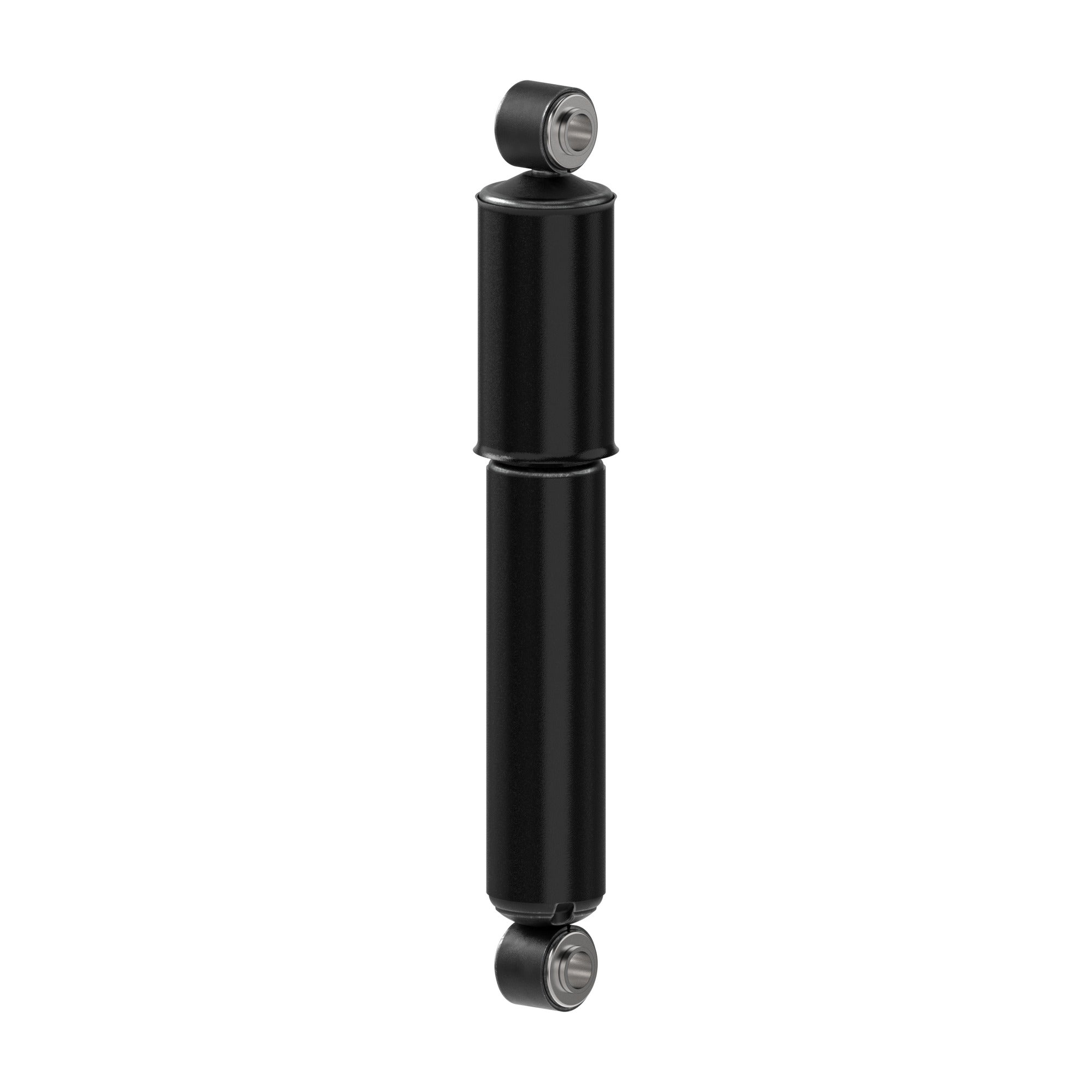

Rear Shock Absorber Black 17.00" Gas Charged - 65419
Part#: 1M062-00
Features and Benefits
- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- Nitrogen gas charge maintains tire to road contact for improved ride and handling by reducing aeration and shock fade
- Robust hydraulic lock out prevents over extension of air bags top out of the piston and averts damage to seal assembly most applications
- 10 Stage valving tuned specifically to each vehicle adjusts to road extremes while larger 1-3/4 in. bore provides more efficient damping control to provide consistency and a smooth ride most applications
- All weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in. reserve tube holds more fluid to improve performance most applications
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Color | Black |
|---|---|
| Mounting Hardware Included | No |
| Extended Length (IN) | 17 |
| Extended Length (MM) | 431.80000000000001 |
| Lower Mount Type | Loop Bushing And Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Lower Mount Type_2 | Loop (Eyelet) Bushing And Sleeve |
| Upper Mount Type | Loop Bushing And Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Gas Charged | Yes |
| Compressed Length (IN) | 11.625 |
| Compressed Length (MM) | 295.30000000000001 |
| Travel Length (IN) | 5.375 |
| Travel Length (MM) | 136.5 |
| Shock Absorber Rod End Measuring Point | Center Of Loop |
| Shock Absorber Body End Measuring Point | Center Of Loop |
| Body Color | Black |
| Grade Type | Premium |
| Cylinder Color | Black |
| Adjustable Rebound | No |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Upper Mount Code | LS54 |
| Lower Mount Code | LS54 |
| Hydraulic Lockout | Yes |
| Internal Rebound Bumper | No |
| Adjustable Compression | No |
| Adjustable Ride Height | No |
| Active or Passive Suspension | Passive |
| Cylinder Finish | Painted |
| Interchange |
|---|
| 10147HD |
| 1083203 |
| 1091367 |
| 1360386MTM |
| 1491909MTM |
| 1583470 |
| 1614759000 |
| 16616 |
| 315411 |
| 315552 |
| 341625 |
| 341626 |
| 345607 |
| 345617 |
| 3919570 |
| 410056 |
| 441850005419 |
| 510017 |
| 5170511020 |
| 5170551114 |
| 5170580520 |
| 520001 |
| 5419 |
| 57306608 |
| 57365419 |
| 58049 |
| 59019 |
| 64442AXMTM |
| 650419 |
| 650419MT |
| 650419PB |
| 651056 |
| 65351101 |
| 65419M |
| 65419MM |
| 654907 |
| 654951 |
| 65911 |
| 665133 |
| 665531 |
| 665536 |
| 665698 |
| 665724 |
| 665746 |
| 665756 |
| 665761 |
| 665766 |
| 665788 |
| 66608 |
| 671707 |
| 671948 |
| 680341 |
| 680467 |
| 680568 |
| 680702 |
| 680756 |
| 680769 |
| 69715 |
| 6KP857MTM |
| 70009801 |
| 70623 |
| 727603 |
| 728600 |
| 728630 |
| 78013 |
| 8150242 |
| 8180262 |
| 83128 |
| 83130 |
| 83176211 |
| 83203 |
| 83389 |
| 85000 |
| 85030 |
| 85043 |
| 85323 |
| 85738 |
| 85911 |
| 85932 |
| 881644 |
| 8901025 |
| 8901030 |
| 89436 |
| 89440 |
| 90044162 |
| 90044685 |
| 90045075 |
| 90045298 |
| 90045299 |
| 90045337 |
| 90045564 |
| 90045669 |
| 9180136 |
| 925267 |
| 98031014 |
| 98583019 |
| A10023 |
| A11931 |
| A14583 |
| A20001 |
| A20002 |
| ABPN320900015 |
| ABPN32G900015 |
| ABPN32O900015 |
| AMS650419 |
| B22345 |
| B22715 |
| B23361 |
| B23566 |
| B24088 |
| B24125 |
| B26652 |
| B27058 |
| B27747 |
| B29432 |
| B29678 |
| C0062D |
| C0078 |
| DPM65419 |
| E83903 |
| EMN65419 |
| F347216 |
| F347332 |
| F347352 |
| F85000 |
| FLS85000 |
| FU65419 |
| GSX89436 |
| HD12150040 |
| HENS20001 |
| HENS24088 |
| HTA200001 |
| HTA20001 |
| HTS20001 |
| HTSS24088 |
| M65419 |
| M83128 |
| M85000 |
| M89436 |
| MAE65419 |
| MBSA65419 |
| MI65419 |
| MISA65419 |
| MN65419 |
| MNEMN65419 |
| MNSA65419 |
| MO65419 |
| MR65419 |
| MS65419 |
| N65419 |
| NW90044162 |
| OTR65419 |
| RCSA3128 |
| RCSA5000 |
| S14583 |
| S1668 |
| S20001 |
| S20002 |
| S20126 |
| S21832 |
| S22345 |
| S22715 |
| S23361 |
| S23566 |
| S24088 |
| S26652 |
| S29432 |
| S29678 |
| SA3128 |
| SA5000 |
| SA65419 |
| SAC410056 |
| TR85000 |
Gas-charged, large-bore shock absorber designed for class 6-8 vehicles, compatible with air spring and taper leaf suspensions. Nitrogen gas charge delivers fast response required for modern heavy-duty truck suspension systems, enhancing stability, control, and overall ride performance.
