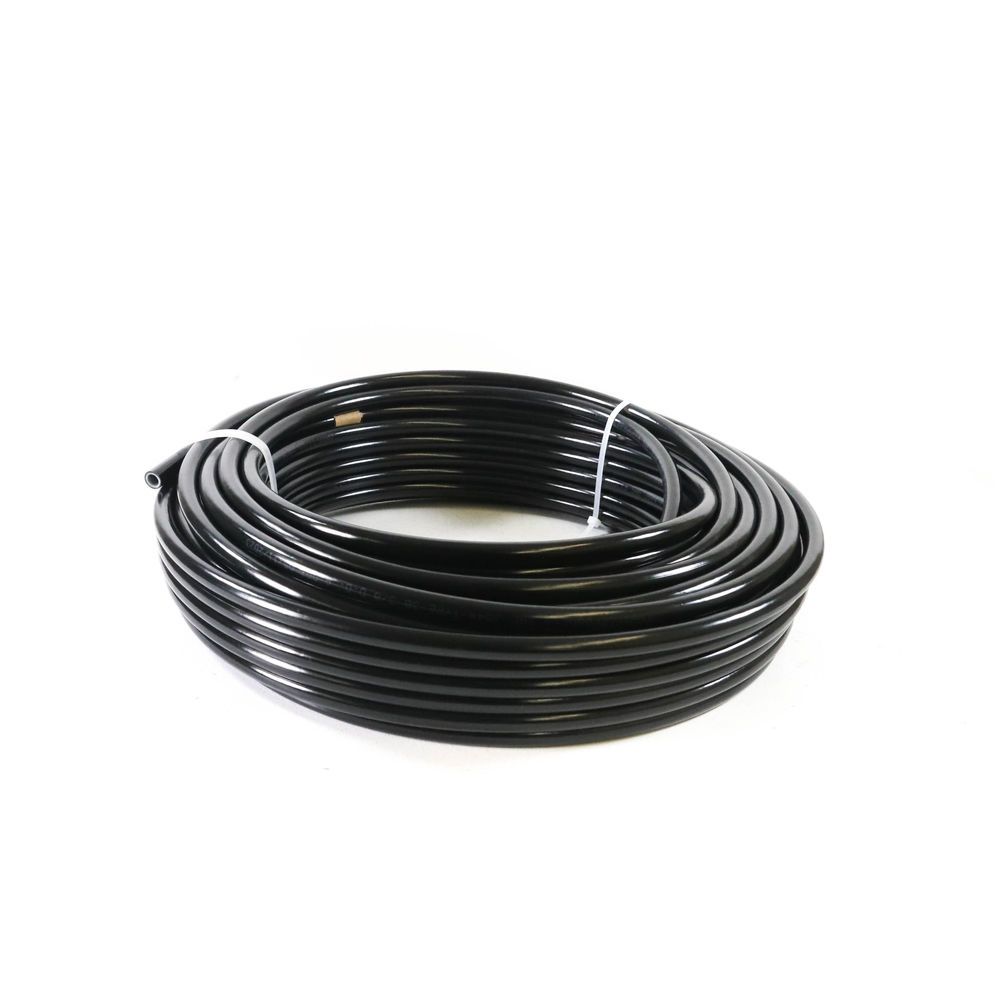

Wire Loom 0.38" Length Standard Coil High-Grade Polyamide 40°F To 200°F - 177.5006

Wire Loom 0.38" Length Standard Coil High-Grade Polyamide 40°F To 200°F - 177.5006

Part#: AAA4955006

Features and Benefits

Material of high-grade polyamide nylon 12 construction for the product body
Length of standard coil 50' / customizable for the product dimensional specification
Outer diameter of 0.38" for correct fitment dimension
Compliance with all DO.T FMVSS 571.106 requirements for confirmed regulatory standards

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

VMRS	10870.00
Description	Tube
Outer Diameter	0.38 in..
Standard	Saej844 Type B
Compliance	Meets All D.O.T Fmvss 571.106 Requirements
Working Pressure	150 PSI
Operating Temperature	40°F To 176°F Or -40°C To 80°C
Outer Diameter (OD)	0.38 in. (0.37 in.)
Inner Diameter (ID)	0.25 in. (Approx. 0.25 in.)
Wall Thickness	0.06 in. (Approx.)
Material	High-Grade Polyamide (Nylon 12)
Length	Standard Coil (50 ft / customizable)
Burst Pressure	450–600 PSI
Minimum Bend Radius	1.38 in.
Temperature Range	40°F To +200°F (-40°C To +93°C)
Chemical Resistance	Oil, Fuel, Grease, Road Salts
Uv Resistance	Yes
Abrasion Resistance	High
Moisture Absorption	Low
Compliance Standard	SAE J844 Type A / DOT Fmvss 106
Installation Type	Push-To-Connect / Compression Fittings
Flexibility Grade	High
Outside Diameter	0.38 in.
Service Type	Service

No data found.

Year	Make	Model	Engine

	FREIGHTLINER	CASCADIA
	INTERNATIONAL	LT
	KENWORTH	T680
	PETERBILT	579
	VOLVO	VNL

The wiring loom is engineered for reliable cable routing and protection on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations.
