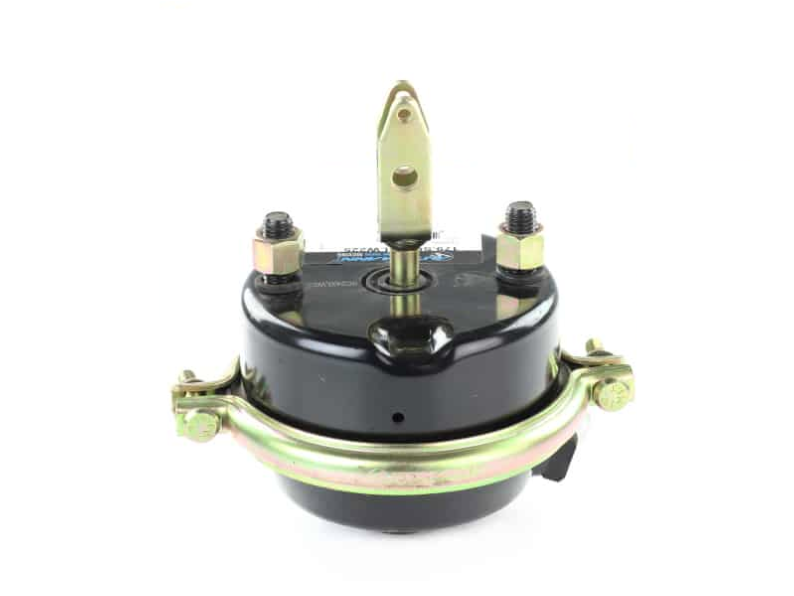

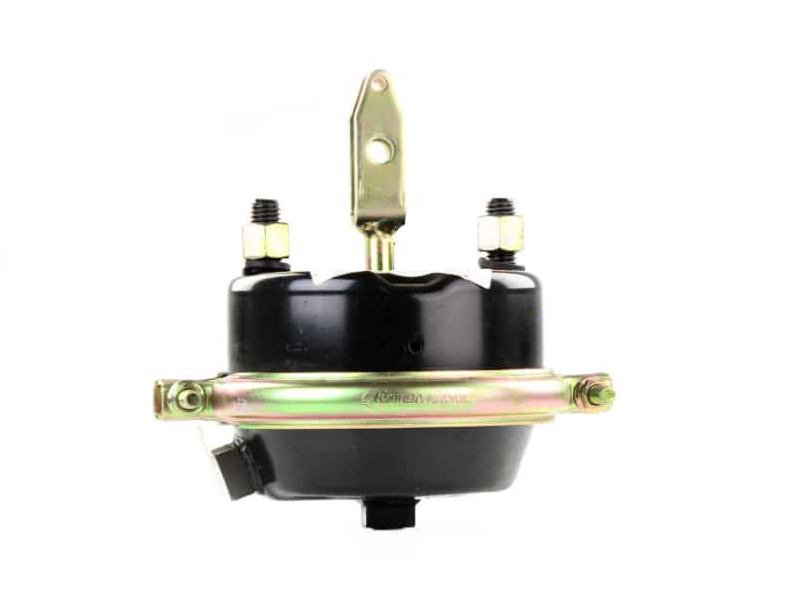

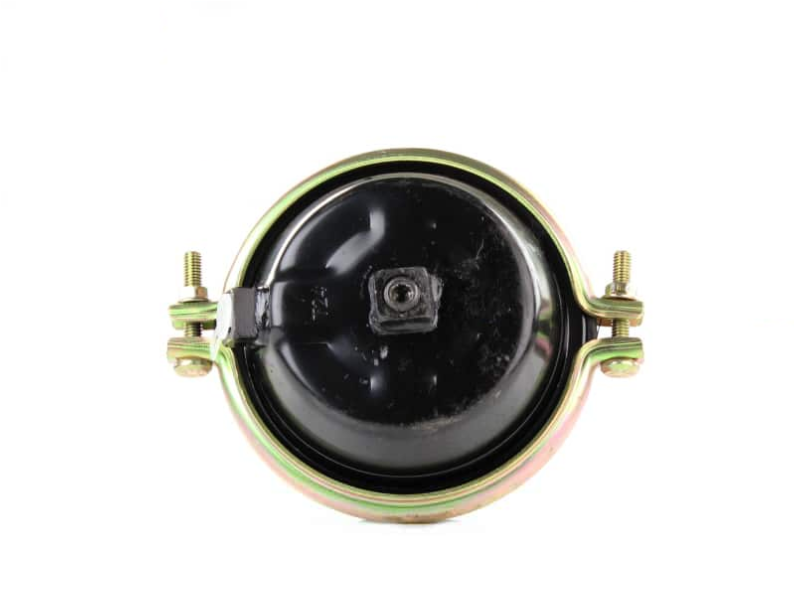

Brake Chamber 3.00" Extra Long Stroke 4.30" 0° - 179.SC24XLW225
Part#: AAA971SC24XLW225
Features and Benefits
- Extra long stroke type provides maximum push rod travel for type-24 spread-axle brake positions
- Available stroke of 3.00" for compatibility with extra long-stroke type-24 brake geometry
- Service-only chamber with clevis for direct push rod-to-adjuster connection on type-24 brakes
- Clevis pin centerline distance ensures correct push rod-to-slack adjuster engagement alignment
- Air port at 0-degree position ensures correct air supply routing on extra long-stroke chambers
- Stud spacing provides correct mounting hole alignment for secure extra long-stroke chamber install
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Actuator Type Size | 24 |
|---|---|
| Stroke Type | Extra Long |
| Available Stroke | 3.00 in. |
| A - Length from mounting bracket to end of Spring Housing | 4.30 in. |
| D - Dimension at Service Clampband | 7.50 in. |
| E - Stud Spacing | 4.75 in. |
| J - Pushrod Length from face of Service Housing | 1.00 in. |
| K - Distance to Clevis Pin centerline from face of Service Housing | 2.25 in. |
| T - Air Port position | 0° |
| Weight | 8.40 lbs |
| Quantity | 1 |
| Interchange |
|---|
| 1428901 |
| 1628901 |
| 23637625 |
| 5554-1628901 |
| AK SC24XLCW |
| BW K058753 |
| BXK058753 |
| HDX S127240010 |
| HDX SC24XLCW |
| K058753 |
| K058753BXW |
| MGM 1428901 |
| MGM1428901 |
| MIDSC24XLCW |
| S127240010 |
| SC24XLCW |
| ZAJ1428901 |
| ZAJ1628901 |
The Brake Chamber is an extra long stroke Type 24 design, engineered for reliable actuation on Heavy Duty commercial vehicle axle applications. Featuring 3.00" of available travel, the unit delivers consistent clamping force and dependable performance across a wide range of operational configurations.
