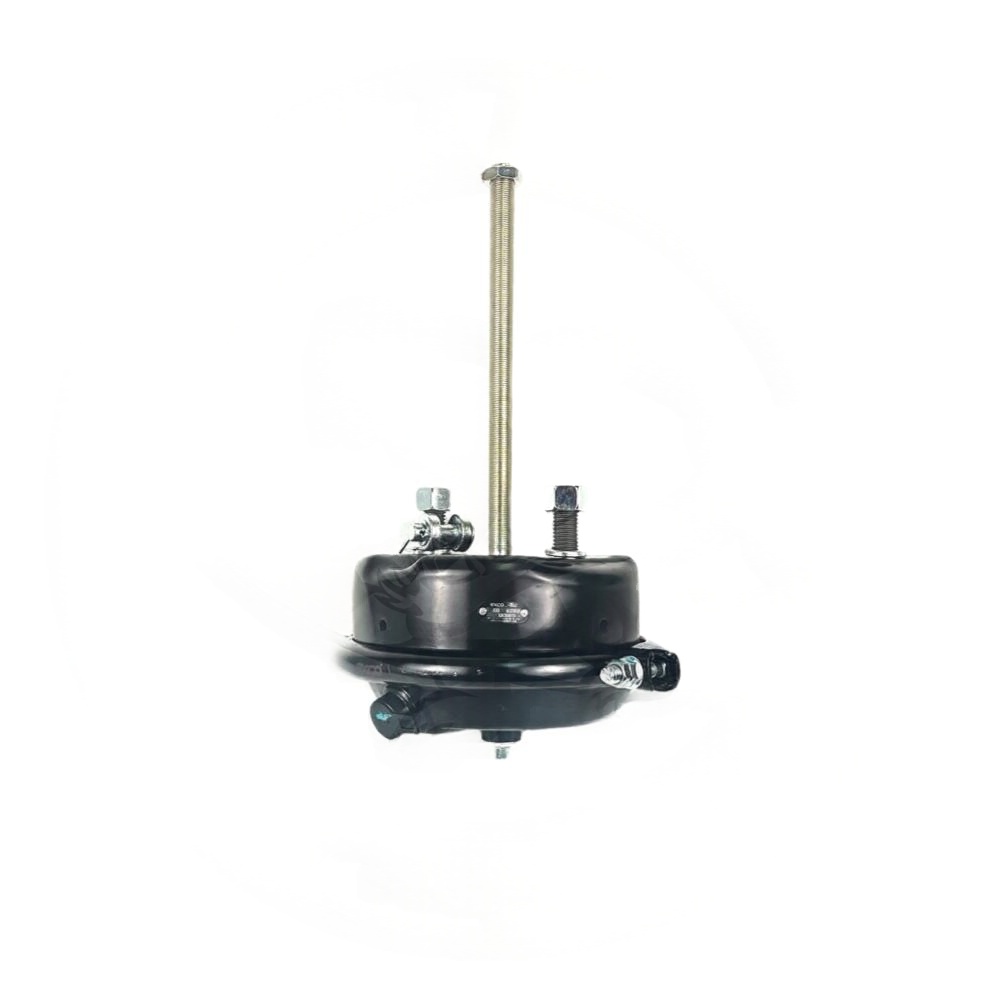

Brake Chamber 3.00" Long Stroke 4.20" 0° - 179.SC30LW225
Part#: AAA971SC30LW225
Features and Benefits
- Service-only long-stroke brake chamber with clevis for direct push rod attachment on type-30
- Long stroke provides 3.00" push rod travel for type-30 long-stroke brake geometry applications
- Clevis pin centerline distance ensures correct push rod-to-slack adjuster engagement alignment
- Air port at 0-degree position for correct air supply routing on long-stroke type-30 chambers
- Stud spacing provides correct mounting hole alignment for secure long-stroke chamber attachment
- Welded clevis design eliminates the need for a separate clevis component on long-stroke service
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Actuator Type Size | 30 |
|---|---|
| Stroke Type | Long |
| Available Stroke | 3.00 in. |
| A - Length from mounting bracket to end of Spring Housing | 4.20 in. |
| D - Dimension at Service Clampband | 8.30 in. |
| E - Stud Spacing | 4.75 in. |
| J - Pushrod Length from face of Service Housing | 1.00 in. |
| K - Distance to Clevis Pin centerline from face of Service Housing | 2.25 in. |
| T - Air Port position | 0° |
| Weight | 9.70 lbs |
| Quantity | 1 |
| Interchange |
|---|
| 1430001 |
| 1430343 |
| 1431901 |
| 1631901 |
| 179.SC30LW225 |
| 179SC30LW225 |
| 288814 |
| 30SCLW3 |
| 5007121 |
| 5396-SC30LCW |
| 5396SC30 |
| 5396SC30LCW |
| 745-800826 |
| 745800826 |
| 767653330952 |
| 800826 |
| 800826BXW |
| 800898 |
| 800904 |
| 800910 |
| 800916 |
| 800919 |
| 801733 |
| 822089 |
| A3000 |
| ABPN42A30SCND |
| BAN800826 |
| BEN800826 |
| BSC30LSWC |
| BW800826 |
| BX800826 |
| BXK058740 |
| E393276D30 |
| EBC30S |
| FLTS30S28 |
| HD30S |
| HDXSC30LCW |
| K058740 |
| MIDSC30 |
| MIDSC30LCW |
| NT3030ELS99 |
| PLBSC30LSWC-2.25 |
| PLBSC30LSWC225 |
| RVKN36300 |
| SC-30 |
| SC30 |
| SC3000 |
| SC30LCW |
| SC30LS |
| TWDBEN800826 |
| TYPE 30 |
| TYPE30 |
| ZAC800826 |
| ZAJ1431901 |
| ZZSC30LCW |
The Brake Chamber is a long stroke Type 30 design, engineered for reliable actuation on Heavy Duty commercial vehicle axle applications. Featuring 3.00" of available travel, the unit delivers consistent clamping force and dependable performance across a wide range of operational configurations.
