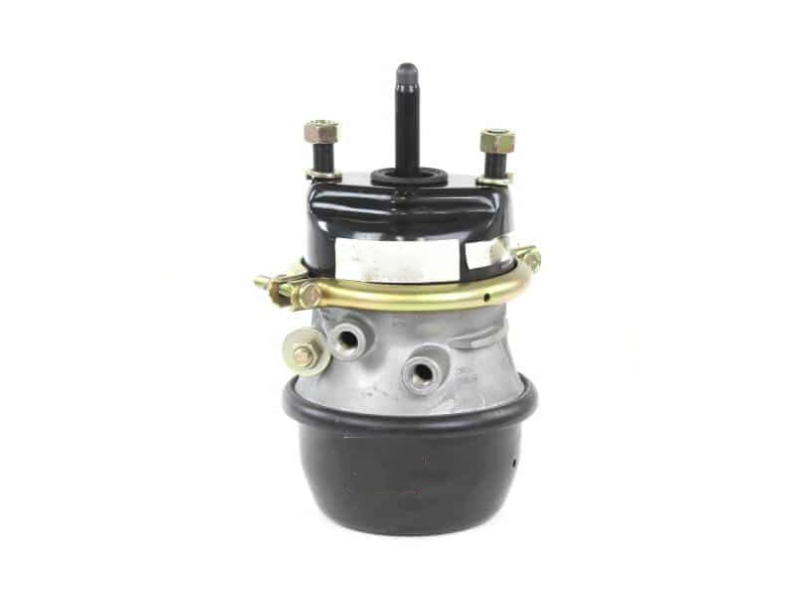

Brake Chamber 2.50" Standard Stroke 9.10" 90° - PL1824.D
Part#: AAA971PL1824D
Features and Benefits
- Actuator size 1824 for correct spring brake selection on 18/24 disc brake axle configurations
- Ball end pushrod threads for direct engagement with compatible disc brake caliper interfaces
- Standard stroke type provides push rod travel matched to standard 18/24 disc brake geometry
- Service clampband position ensures correct air port orientation on disc brake installations
- Stud spacing provides correct mounting bracket hole alignment for 18/24 chamber attachment
- Piggyback section length supports correct spring-to-service proportioning on 1824 disc units
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Actuator Type Size | 1824 |
|---|---|
| Stroke Type | Standard |
| Available Stroke | 2.50 in. |
| Pushrod Threads | Ball End |
| Weight | 18.8 lbs. |
| A - Length from mounting bracket to end of Spring Housing | 9.10 in. |
| B - Length of Piggyback | 6.54 in. |
| C - Dimension at rolled Spring Housing flange | 7.40 in. |
| D - Dimension at Service Clampband | 8.43 in. |
| E - Stud Spacing | 4.75 in. |
| J - Pushrod Length from face of Service Housing | 0.59 in. |
| S1 - Service Clampband position | 160° |
| T - Air Port position | 90° |
| Interchange |
|---|
| 179.SB1824DB |
| 1816HTND2-3669 |
| 1824TLD2 |
| 3419-TR1724LTH |
| 5018436 |
| 5020489 |
| 50866060 |
| 802756 |
| 803154 |
| BXK132352 |
| K025670 |
| K026451 |
| K043329 |
| PRLPL1824.D |
The Brake Chamber is a standard stroke Type 1824 actuator, engineered for reliable actuation on Heavy Duty commercial vehicle axle applications. Featuring a ball end pushrod design with 2.50" of available travel, the unit delivers consistent clamping force and dependable performance across a wide range of configurations.
