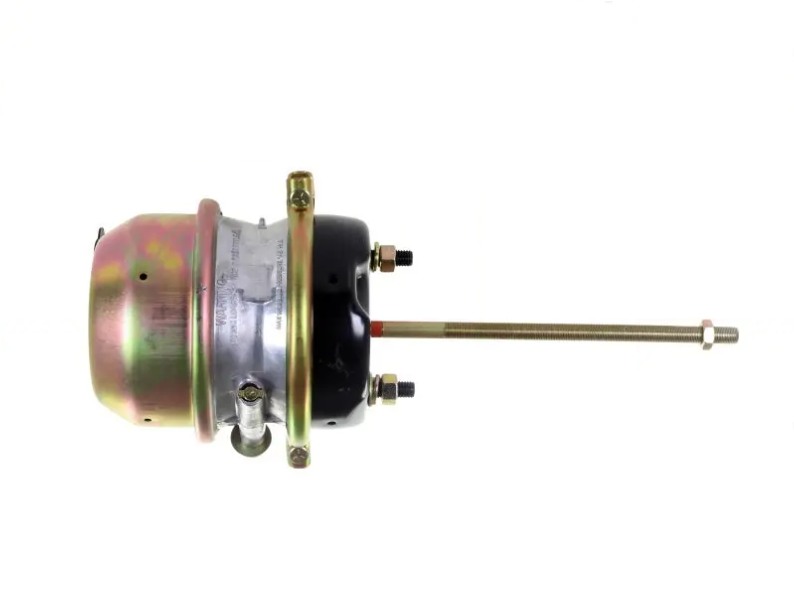

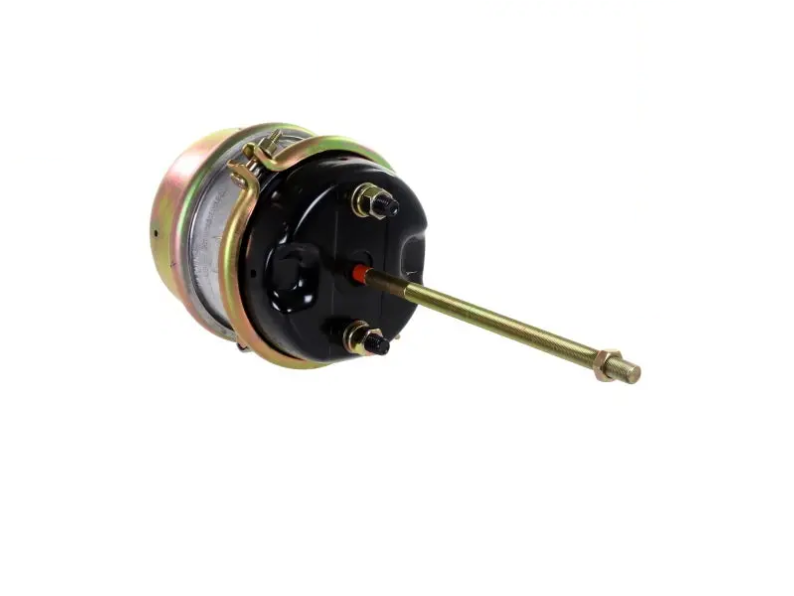

Brake Chamber 2.50" Standard Stroke 9.00" - PLCTS3030
Part#: AAA971PLCTS3030
Features and Benefits
- Spring brake combination chamber for integrated service and parking brake function
- Standard stroke type provides push rod travel matched to standard type-30 drum brake geometry
- Available stroke of 2.50" for compatibility with standard 30/30 combination brake systems
- Spring housing length provides correct bracket-to-spring housing clearance at installation
- Extended pushrod length ensures correct push rod-to-slack adjuster engagement geometry
- Piggyback length supports correct spring-to-service section proportioning on standard 30/30
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Stroke Type | Standard |
|---|---|
| Available Stroke | 2.50 in. |
| A - Length from mounting bracket to end of Spring Housing | 9.00 in. |
| B - Length of Piggyback | 6.80 in. |
| C - Dimension at rolled Spring Housing flange | 8.30 in. |
| D - Dimension at Service Clampband | 10.20 in. |
| J - Pushrod Length from face of Service Housing | 10.00 in. |
| Weight | 20.30 lbs |
| Quantity | 1 |
| Interchange |
|---|
| 165255 |
| 179.SB3030S |
| 19QE441RP1 |
| 3030-TS |
| 3030C |
| 3030CIS |
| 3030TS |
| 3130516 |
| 802547 |
| 85107268 |
| GC3030 |
| GC3030P40 |
| K049898 |
| NT3030STD-120 |
| NT3030STD120 |
The Brake Chamber is a standard stroke spring configuration, engineered for reliable parking and service actuation on Heavy Duty commercial vehicle axle applications. Featuring a piggyback design with 2.50" of available travel, the unit delivers consistent clamping force and dependable performance across a wide range of configurations.
