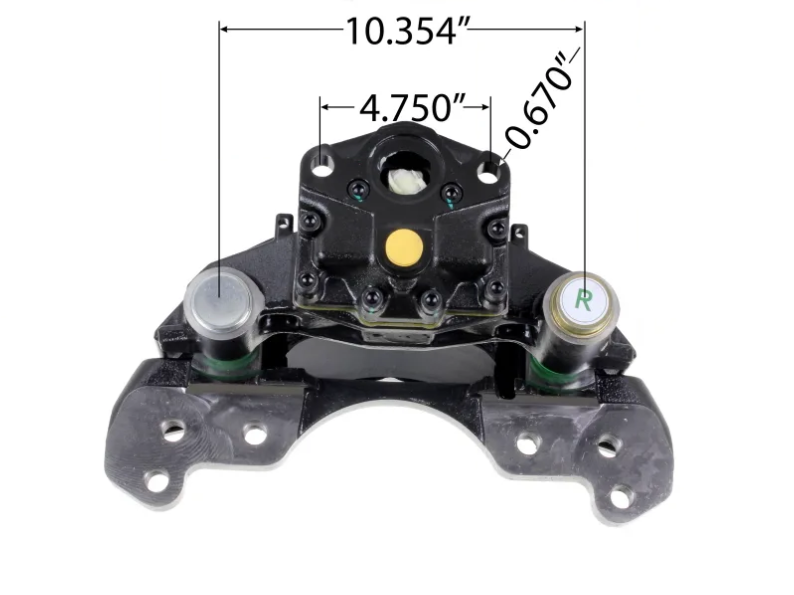

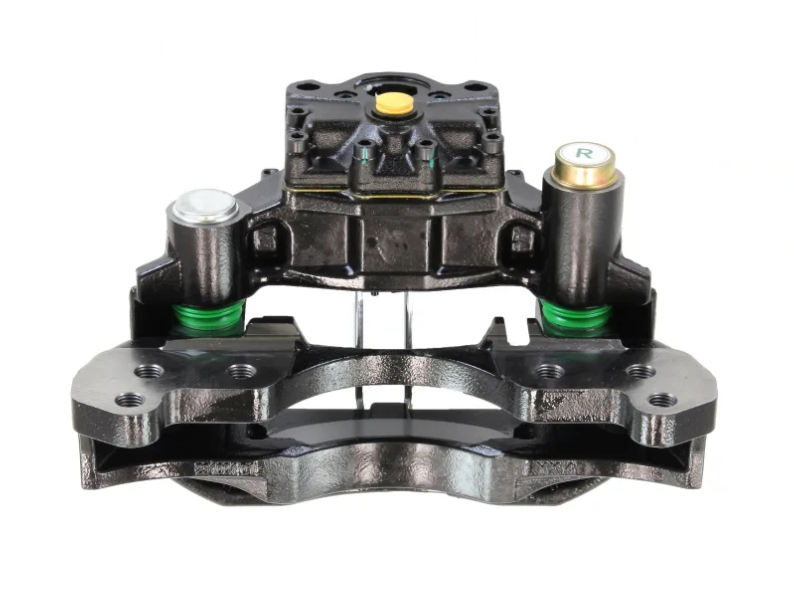

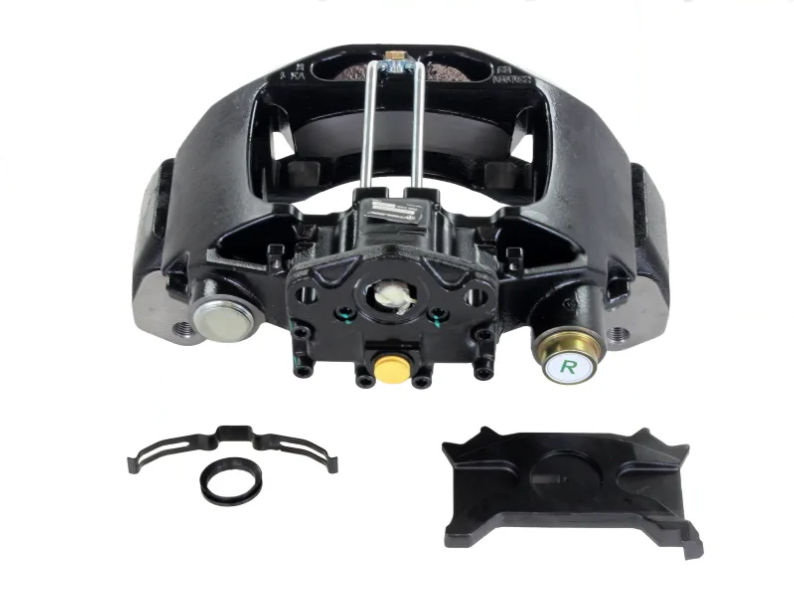

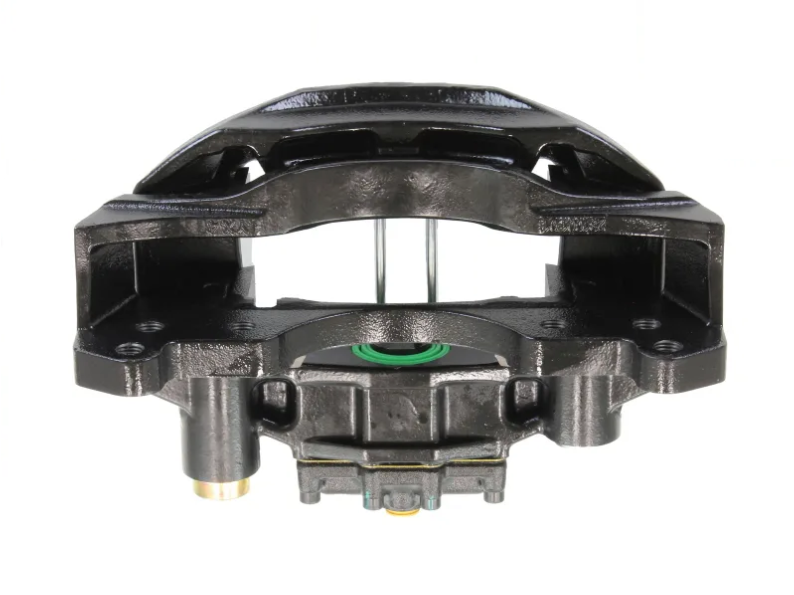

Brake Caliper PAN 22-1 Right Hand 6 X M20 - 158.6402250810
Part#: AAA8516402250810
Features and Benefits
- Right-hand mounting position for passenger-side disc brake caliper installation on commercial axles
- Model PAN 22-1 for precise caliper selection on compatible commercial disc brake applications
- Multi-point carrier mounting configuration for secure caliper-to-carrier attachment
- Rotor clearance dimension matched to compatible caliper engagement geometry on disc axles
- Stroke dimension matched to push rod travel of compatible brake chamber actuators
- Without pads design for independent brake pad selection at the time of caliper replacement
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Brake Disc | 45.0 mm |
|---|---|
| Diameter | 430.0 mm |
| Mounting | 6 X M20 |
| Side of Mounting | Right |
| Stroke | 26.5 mm |
| Type | PAN 22-1 |
| Version | Without Pads |
| Weight | 71.76 lbs |
| Interchange |
|---|
| 1586402251 |
| 6402250370 |
| 6402250810 |
| 64AC02250810 |
| 99B900562 |
| ATCAD4005A |
| CTLW810RN |
| M6402250810X |
| RDB6402250810CX |
| S326768 |
| S336483 |
The Brake Caliper is a right-hand PAN 22-1 disc design, engineered for dependable clamping force on Heavy Duty commercial vehicle axle applications. Supplied without pads, the unit delivers reliable actuation and consistent stopping performance across a wide range of service and maintenance configurations.
