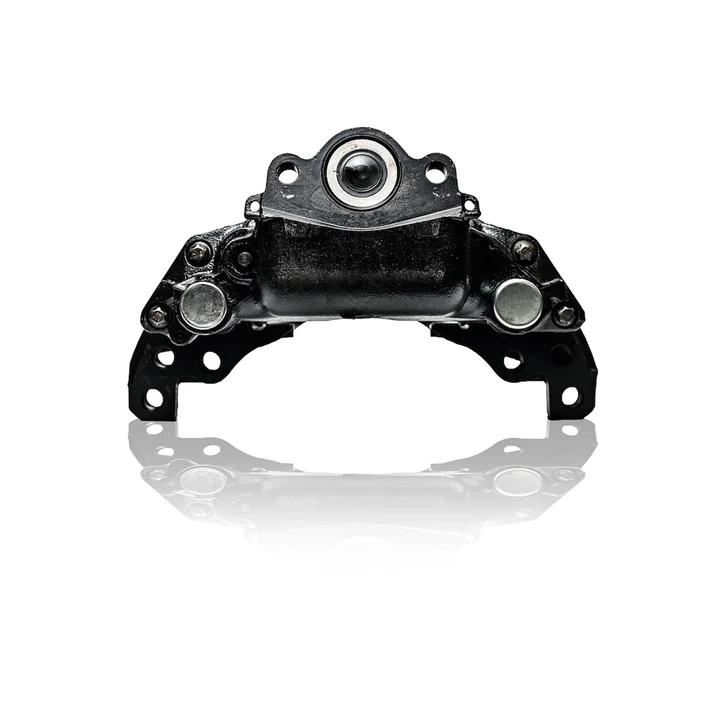

Brake Caliper EX225L Left Hand Axial Mount M20 X 2.5 - 158.EX225L261
Part#: AAA851EX225L261
Features and Benefits
- Left-hand position for driver-side EX225L air disc brake caliper installation
- Axial mount type for direct, inline chamber-to-caliper actuation alignment
- Multi-point carrier mounting with threaded holes for secure carrier attachment on EX225L
- Angled chamber mounting position for correct brake chamber geometry on EX225L assemblies
- Dual piston configuration for balanced pad clamping force across the full brake disc
- Pad length and FMSI specification for precise brake pad selection on EX225L applications
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Weight | 67.00 lbs |
|---|---|
| Mounting Hole Size | M20 X 2.5 |
| Axial or Radial Mount | Axial |
| Distance A-B | 2 9/16 in. |
| Carrier Mounting Holes | 6 |
| Left or Right | Left |
| Chamber Mounting Position | Axial 12 degrees |
| Notes | PWWI mount on both sides of housing (cast feature with hole) |
| FMSI | 1370 |
| Model | EX225L |
| Numbers of Pistons | 2 |
| Brake Chamber Angle | 12 degrees |
| Pad Length | 8.50 in. |
| Interchange |
|---|
| AD30206 |
| EX225L261 |
| EX225L261XX000 |
| TDAEX225L261XX000 |
The Brake Caliper is a left-hand air disc design, engineered for dependable clamping force on Heavy Duty commercial vehicle axle applications. The unit delivers reliable actuation and consistent stopping performance across a wide range of service and maintenance configurations.
