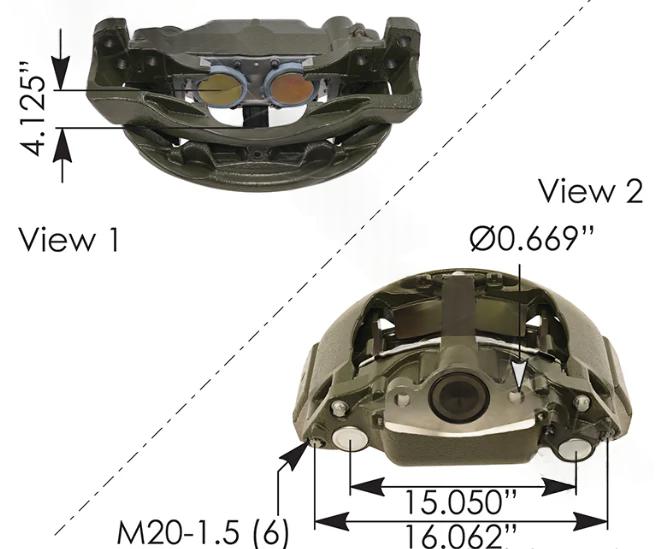

Brake Caliper EX225L Right Hand Axial Mount M20 X 2.5 - 158.EX225L262
Part#: AAA851EX225L262
Features and Benefits
- Right-hand position for passenger-side EX225L air disc brake caliper installation
- Axial mount type for direct, inline actuator-to-caliper alignment on EX225L systems
- Multi-point carrier mounting with threaded engagement for secure carrier attachment
- Angled chamber mounting geometry matched to EX225L brake chamber mounting requirements
- Dual piston design for balanced clamping force across the disc brake pad contact area
- Pad length and FMSI number for targeted brake pad selection on EX225L caliper applications
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Weight | 68.00 lbs |
|---|---|
| Carrier Mounting Holes | 6 |
| Left or Right | Right |
| Mounting Hole Size | M20 X 2.5 |
| Distance A-B | 2 9/16 in. |
| Axial or Radial Mount | Axial |
| Notes | PWWI mount on both sides of housing (cast feature with hole) |
| Model | EX225L |
| Chamber Mounting Position | Axial 12 degrees |
| Brake Chamber Angle | 12 degrees |
| Numbers of Pistons | 2 |
| FMSI | 1370 |
| Pad Length | 8.50 in. |
| Interchange |
|---|
| AD30205 |
| EX225L262 |
| EX225L262XX000 |
| TDAEX225L262XX000 |
The Brake Caliper is a right-hand air disc design, engineered for dependable clamping force on Heavy Duty commercial vehicle axle applications. The unit delivers reliable actuation and consistent stopping performance across a wide range of service and maintenance configurations.
