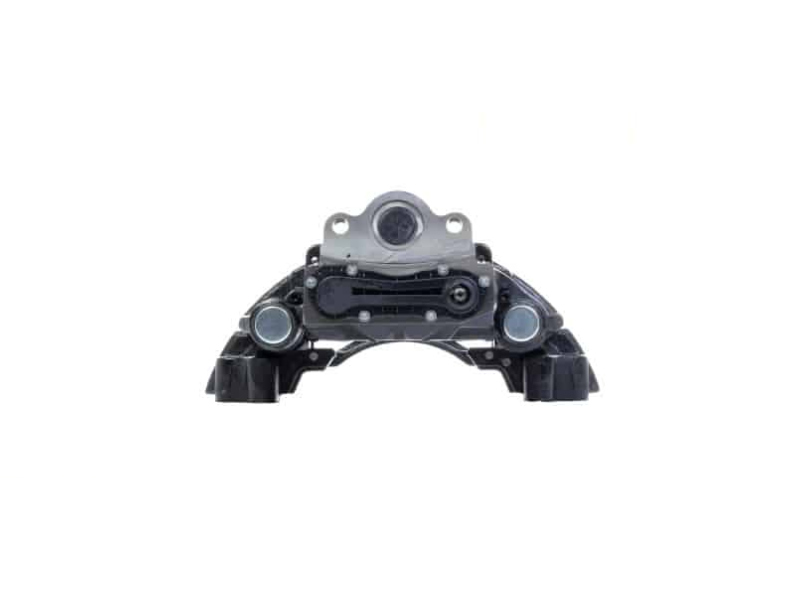

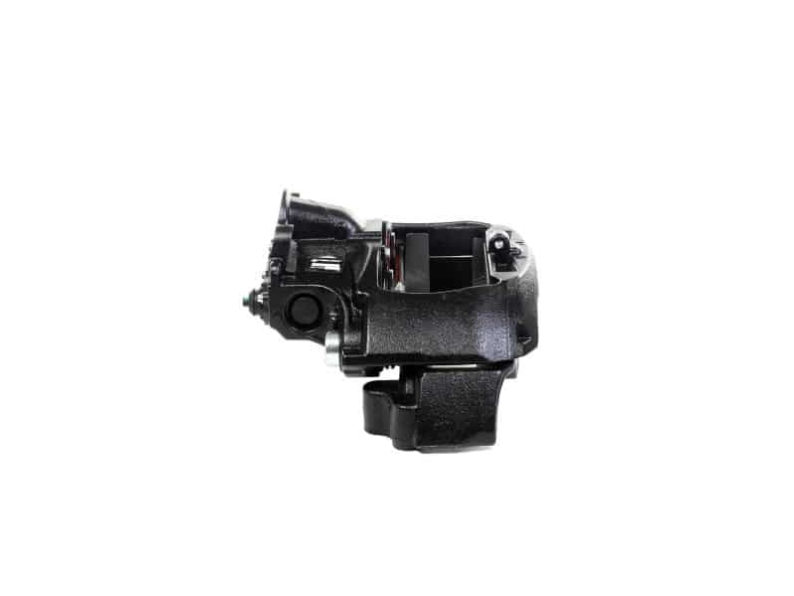

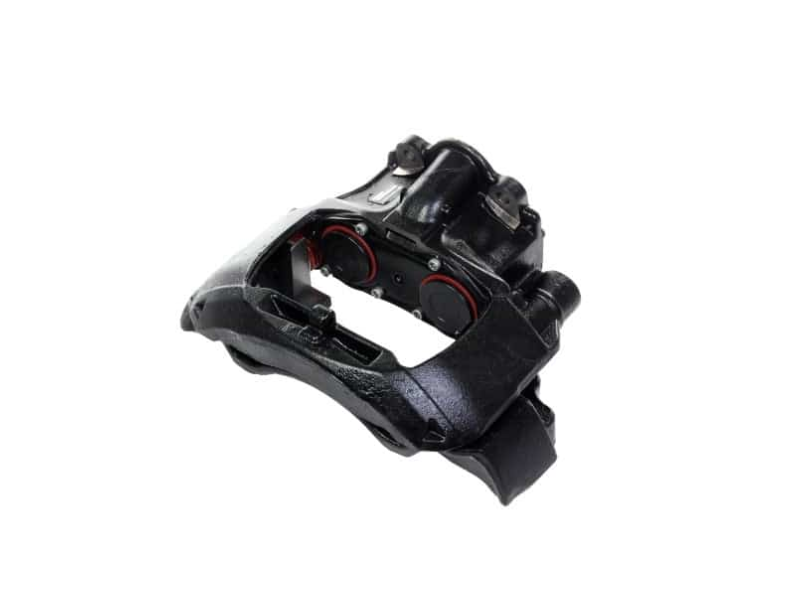

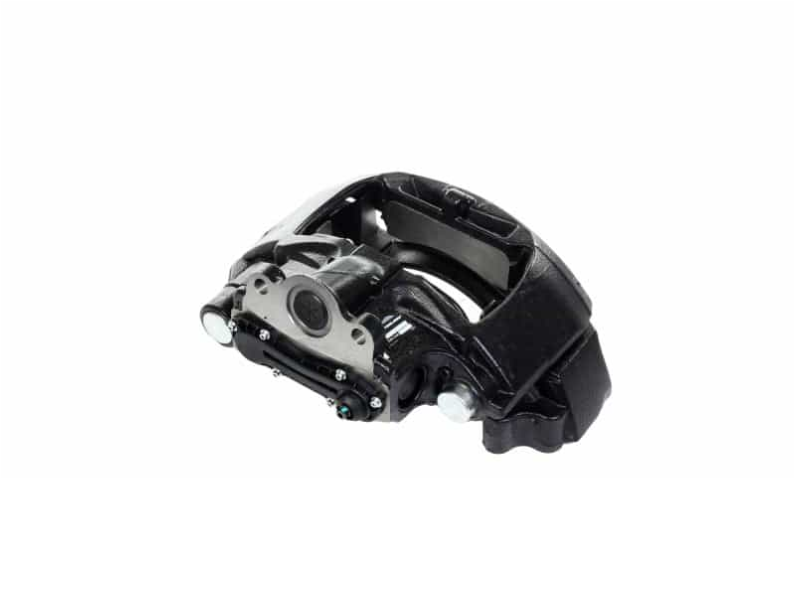

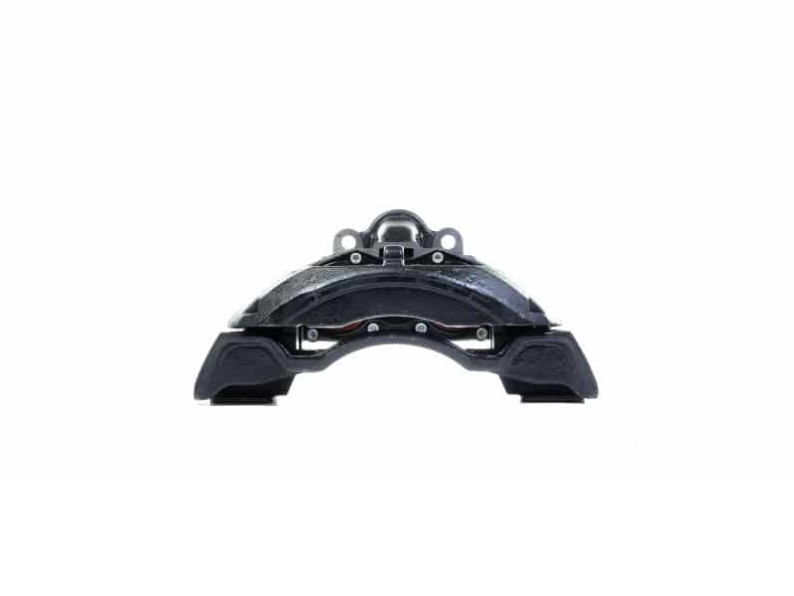

Brake Caliper ADB22X Left Hand Radial Mount M16 X 2.0 - 158.K081257/K081257
Part#: AAA851K081257
Features and Benefits
- Left-hand position for driver-side ADB22X radial mount disc brake caliper installation
- Radial mount type for perpendicular chamber attachment on ADB22X radial brake applications
- Multi-point carrier mounting with secure threaded engagement for radial caliper attachment
- Angled chamber mounting position matched to ADB22X radial mount chamber requirements
- Dual piston design for balanced, even pad clamping force across the disc brake face
- Pad length and FMSI rating for targeted brake pad selection on ADB22X left radial platforms
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Weight | 72.00 lbs |
|---|---|
| Axial or Radial Mount | Radial |
| Distance A-B | 2 in. |
| Mounting Hole Size | M16 X 2.0 |
| Left or Right | Left |
| Carrier Mounting Holes | 6 |
| Numbers of Pistons | 2 |
| Brake Chamber Angle | 12 degrees |
| Chamber Mounting Position | Axial 12 degrees |
| FMSI | 1369 |
| Model | ADB22X |
| Pad Length | 8.28 in. |
| Interchange |
|---|
| 10AC9958X |
| 158K081257 |
| 99B900332 |
| ABPN42AAK081257 |
| BL470042 |
| BXK081257 |
| BXK109958X |
| CTRB958LXNC |
| EXK109958X |
| K021300 |
| K081257 |
| K081259 |
| K097847 |
| K097847SC |
| K109958X |
| K147135 |
| K147135X |
| OTR22X02V |
| RAD109958X |
| TDAMK081257X |
The Brake Caliper is a left-hand ADB22X disc design, engineered for dependable clamping force on Heavy Duty commercial vehicle axle applications. The unit delivers reliable actuation and consistent stopping performance across a wide range of service and maintenance configurations.
