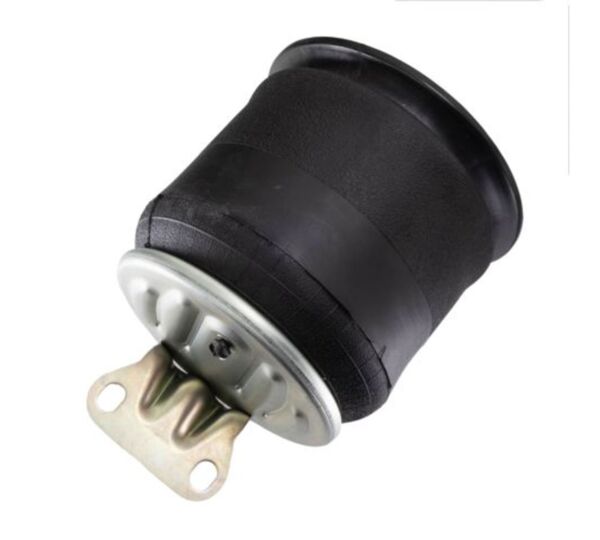

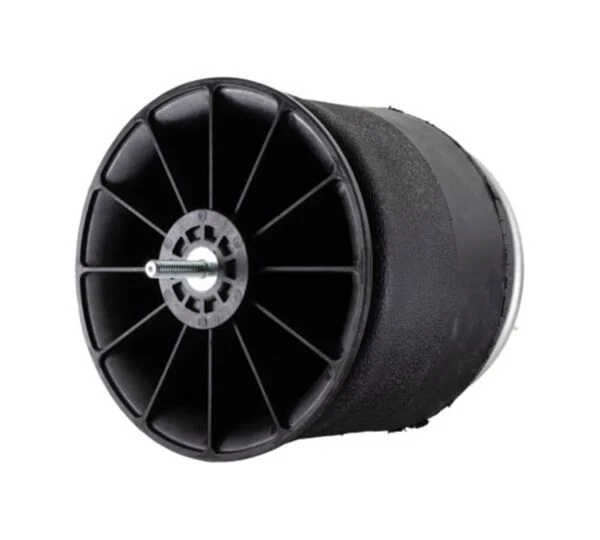

Air Spring 8.94" Top x 10.63" Bottom Dia - 566.CT602206

Air Spring 8.94" Top x 10.63" Bottom Dia - 566.CT602206

Part#: AAA501602206

Features and Benefits

Steel with rubber material for a durable, corrosion-resistant air spring body
M12 x 1.5 mm air inlet thread for a secure, leak-free air line connection
10.63" bottom plate diameter for broad, stable load distribution on the axle seat
8.94" top plate diameter for precise alignment with frame bracket mounting surfaces
1/2-13 UNC top mounting stud thread for a secure, vibration-resistant frame connection
Combined steel and rubber construction balancing structural rigidity with flexible spring action

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
DESCRIPTION

Air Inlet Thread Size	M12 x 1.5 mm
Mounting Stud Thread Size (Top)	1/2-13 UNC
Bottom Plate Diameter	10.63 in.
Top Plate Diameter	8.94 in.
Material	Steel With Rubber

Interchange

566.ER79562
602206
79562
910S16P1419
910S16P1652
A1621558001

The Air Spring is constructed from steel with rubber material, offering dependable suspension support for Heavy Duty commercial vehicles. Engineered for consistent load bearing across a wide range of chassis configurations, the unit provides reliable performance in demanding road and transport environments.
