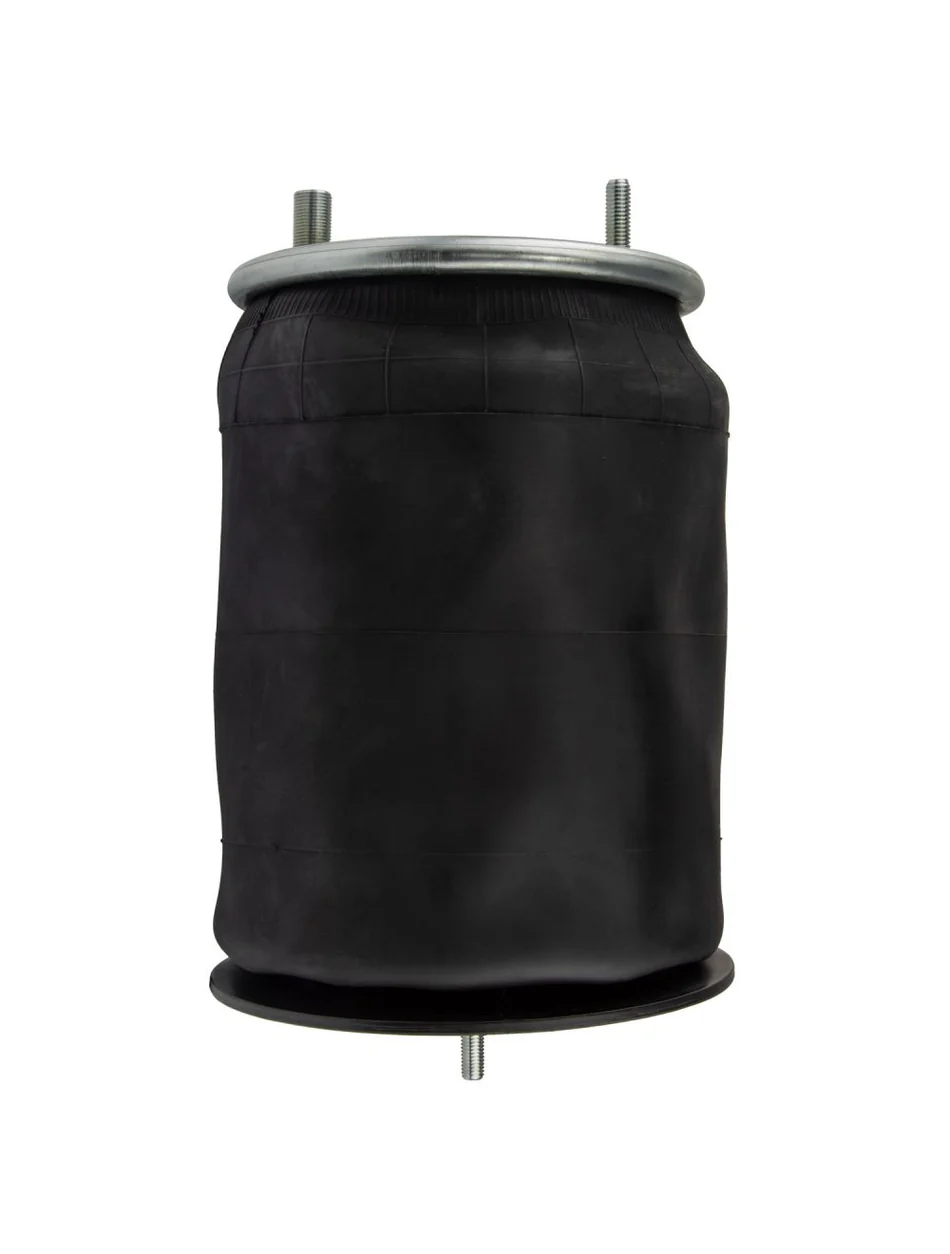

Air Spring 9" Top x 7.87" Bottom Dia Aluminum - 566.CT67480
Part#: AAA50167480
Features and Benefits
- Aluminum bottom plate for a lightweight, corrosion-resistant axle mounting surface
- 9.7" compressed height for a stable collapsed profile during full suspension compression
- 7.87" bottom plate diameter providing a firm, well-distributed axle contact surface
- 9" top plate diameter with 2 top studs and 4 bottom studs for secure multi-point mounting
- 26.5" extended height for maximum suspension travel under variable load conditions
- 12.6" maximum diameter with 15.5 CPM natural frequency for smooth, controlled ride isolation
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Load (Lbs) @80 PSI | 7200 |
|---|---|
| Load (Lbs) @100 PSI | 60 |
| Natural Frequency (CPM) | 15.5 |
| Bottom Plate Type | Aluminum |
| Top Plate Hole/Stud Quantity | 2 |
| Top Plate Diameter | 9 in. |
| Top Plate Center to Center Diameter | 6.2 in. |
| Bottom Plate Hole/Stud Quantity | 4 |
| Bottom Plate Diameter | 7.87 in. |
| Compressed Height | 9.7 in. |
| Extended Height | 26.5 in. |
| Maximum Diameter | 12.6 in. |
| Interchange |
|---|
| 1R12142 |
| 67480 |
| 91019A946 |
| FX566.CT67480 |
| SC2108 |
The Air Spring features an aluminum bottom plate construction, delivering reliable suspension performance for Heavy Duty commercial vehicle applications. Engineered for consistent load bearing and smooth ride quality, the unit provides dependable support across a wide range of trailer and chassis configurations.
