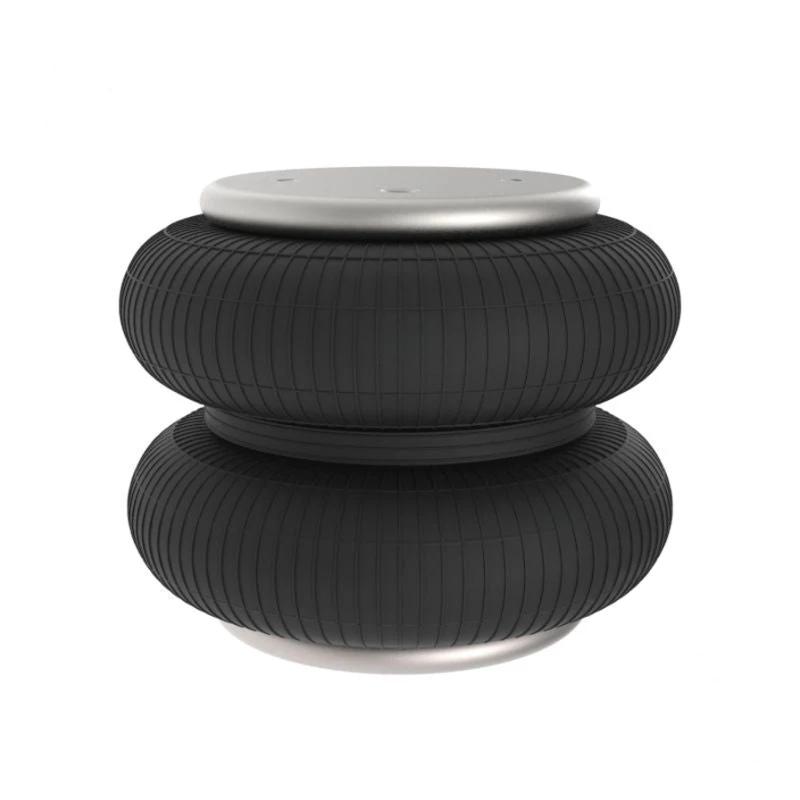

Air Spring Double Convoluted 6.31" Top x 6.31" Bottom Dia - 566.ER6910

Air Spring Double Convoluted 6.31" Top x 6.31" Bottom Dia - 566.ER6910

Part#: AAA5016910

Features and Benefits

Double convoluted type for increased load capacity and enhanced suspension stroke range
3 top plate holes with 3.5" center-to-center diameter for precise frame bracket alignment
2560 lbs load capacity at 80 PSI for reliable, load-rated suspension performance
3200 lbs load capacity at 100 PSI for maximum load-rated suspension support
3" compressed height and 10.5" extended height for a wide, usable suspension stroke range
108 CPM natural frequency with 9.8" maximum diameter for stable, controlled ride isolation

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
DESCRIPTION

Type	Double Convoluted
Load (Lbs) @80 PSI	2560
Load (Lbs) @100 PSI	3200
Natural Frequency (CPM)	108
Design Height	8 in.
Top Plate Hole/Stud Quantity	3
Top Plate Diameter	6.31 in.
Top Plate Center to Center Diameter	3.5 in.
Bottom Plate Hole/Stud Quantity	2
Bottom Plate Diameter	6.31 in.
Bottom Plate Center to Center Diameter	3.5 in.
Compressed Height	3 in.
Extended Height	10.5 in.
Maximum Diameter	9.8 in.

Interchange

1003586910C
1027405
1096910
1371
2370401
2B9200
3079
3090
4320
4546910
4546910L
458433
554783C1
57006910
579923202
59302786
64267
6910
8768
926010
928016
A812719
AB2B9200
ABSP2B12R6910
AS0001
AS4320
AZ812719
B8768
CS209200
EFS6910
FD20019320
FS6910
M3501
RL69100
S4512C
S8768
SC201
SC2011
W013586910
WA016910C

The Air Spring double convoluted design delivers 2,560 lbs load capacity at 80 psi, providing reliable suspension support for Heavy Duty commercial vehicle applications. Engineered for consistent load bearing and smooth ride quality across a wide range of trailer and chassis configurations.
