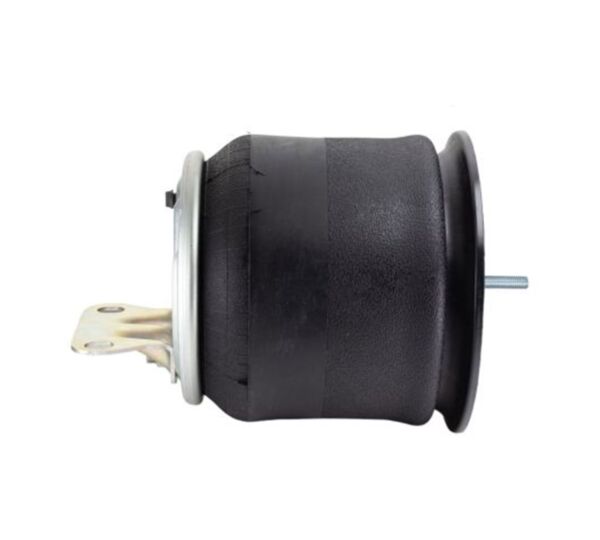

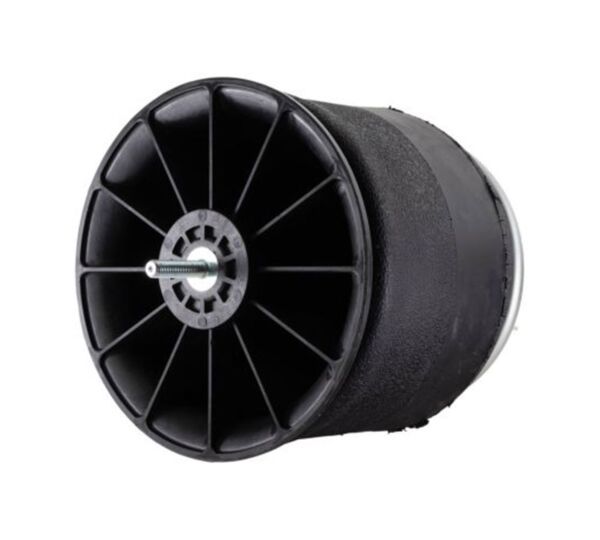

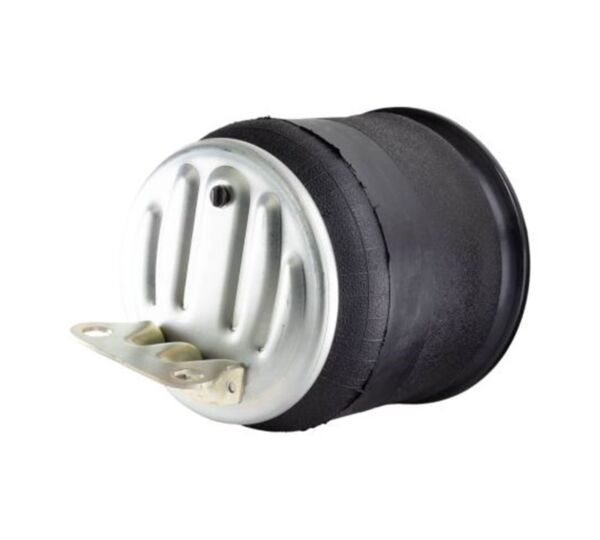

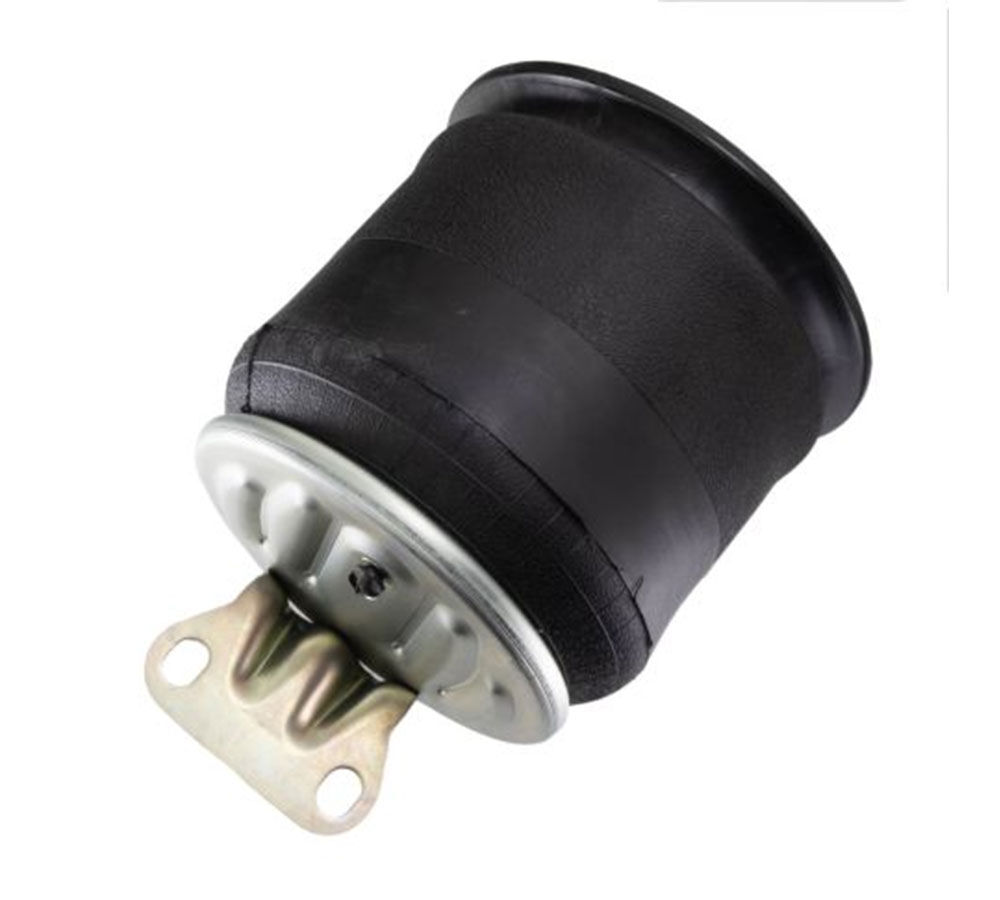

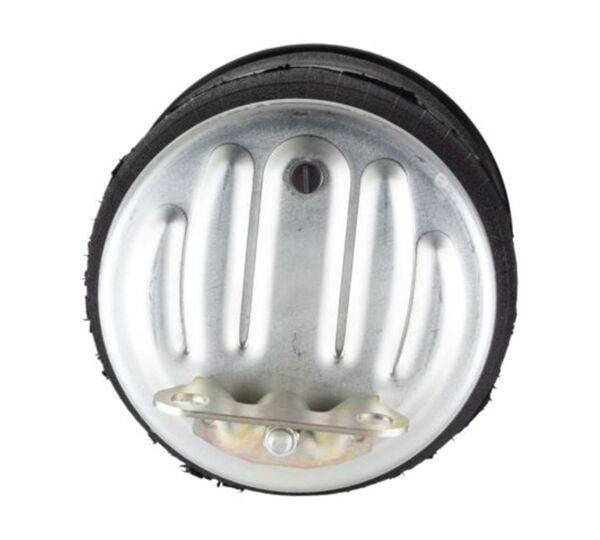

Air Spring 8.94" Top x 10.63" Bottom Dia - 566.ER79562

Air Spring 8.94" Top x 10.63" Bottom Dia - 566.ER79562

Part#: AAA50179562

Features and Benefits

Steel with rubber material for a durable, corrosion-resistant air spring construction
M12 x 1.5 mm air inlet thread for a secure, leak-free pneumatic line connection
10.63" bottom plate diameter for broad, stable load distribution on the axle seat
8.94" top plate diameter for precise alignment with standard frame bracket mounting surfaces
1/2-13 UNC top mounting stud for a strong, vibration-resistant frame bracket attachment
Combined steel and rubber body balancing structural rigidity with flexible spring performance

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
DESCRIPTION

Air Inlet Thread Size	M12 x 1.5 mm
Mounting Stud Thread Size (Top)	1/2-13 UNC
Bottom Plate Diameter	10.63 in.
Top Plate Diameter	8.94 in.
Material	Steel With Rubber

Interchange

566.CT602206
A1621077001
A1621558001
FX566.ER79562

The Air Spring is constructed from steel with rubber material, offering dependable suspension support for Heavy Duty commercial vehicles. Engineered for consistent load bearing across a wide range of chassis configurations, the unit provides reliable performance in demanding transport environments.
