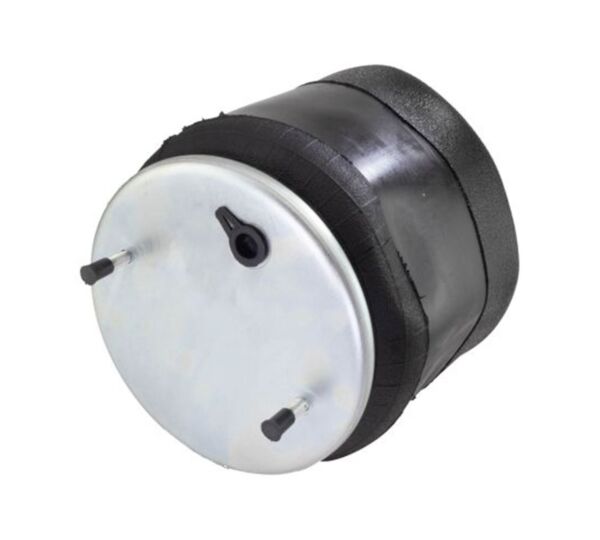

Air Spring Rolling Lobe 9" Top x 8.07" Bottom Dia Plastic - 566.ER8864
Part#: AAA5018864
Features and Benefits
- Rolling lobe type with plastic bottom plate for smooth response and lightweight axle contact
- 7.8" compressed height for a compact, stable collapsed profile during full suspension compression
- 5600 lbs load at 80 PSI and 7100 lbs at 100 PSI for rated load support across pressures
- 16" design height with 3 top and 1 bottom stud for precise multi-point mounting alignment
- 65 CPM natural frequency for stable, well-controlled suspension vibration isolation
- 25.2" extended height and 12.6" maximum diameter for maximum suspension travel and load distribution
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Type | Rolling Lobe |
|---|---|
| Load (Lbs) @80 PSI | 5600 |
| Load (Lbs) @100 PSI | 7100 |
| Natural Frequency (CPM) | 65 |
| Design Height | 16 in. |
| Bottom Plate Type | Plastic |
| Top Plate Hole/Stud Quantity | 3 |
| Top Plate Diameter | 9 in. |
| Top Plate Center to Center Diameter | 6.2 in. |
| Bottom Plate Hole/Stud Quantity | 1 |
| Bottom Plate Diameter | 8.07 in. |
| Compressed Height | 7.8 in. |
| Extended Height | 25.2 in. |
| Maximum Diameter | 12.6 in. |
| Bottom Plate Diameter | 7.87 in. |
| Extended Height | 24.5 in. |
| Compressed Height | 7.75 in. |
| Top Plate Hole/Stud Quantity | 2 |
| Interchange |
|---|
| 1R121097 |
| 308716 |
| 3202 |
| 3528864 |
| 4528864 |
| 4528864L |
| 566.CT601784 |
| 566.ER8864 |
| 566207428 |
| 566243172 |
| 6364 |
| 66666 |
| 8864 |
| 8865 |
| 8898 |
| 91019P898 |
| 9531 |
| AB1DK23L8864 |
| ABPN32018864 |
| AS8864 |
| AS8898 |
| ASA928041 |
| C013581000 |
| C811011 |
| C811013 |
| FX566.ER8864 |
| NAD28197 |
| SP558864KP |
| W013588864 |
| W016875470 |
| W017038863 |
| W017038864 |
| W017038865 |
| WA018864C |
The Air Spring rolling lobe design provides dependable suspension support with an extended height of 24.5", suited for Heavy Duty commercial vehicle applications such as Kenworth and Peterbilt platforms. Engineered for consistent load bearing and reliable performance across demanding chassis configurations.
