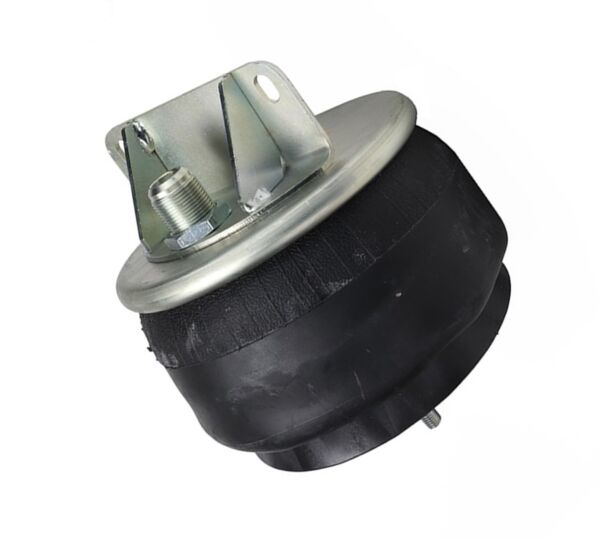

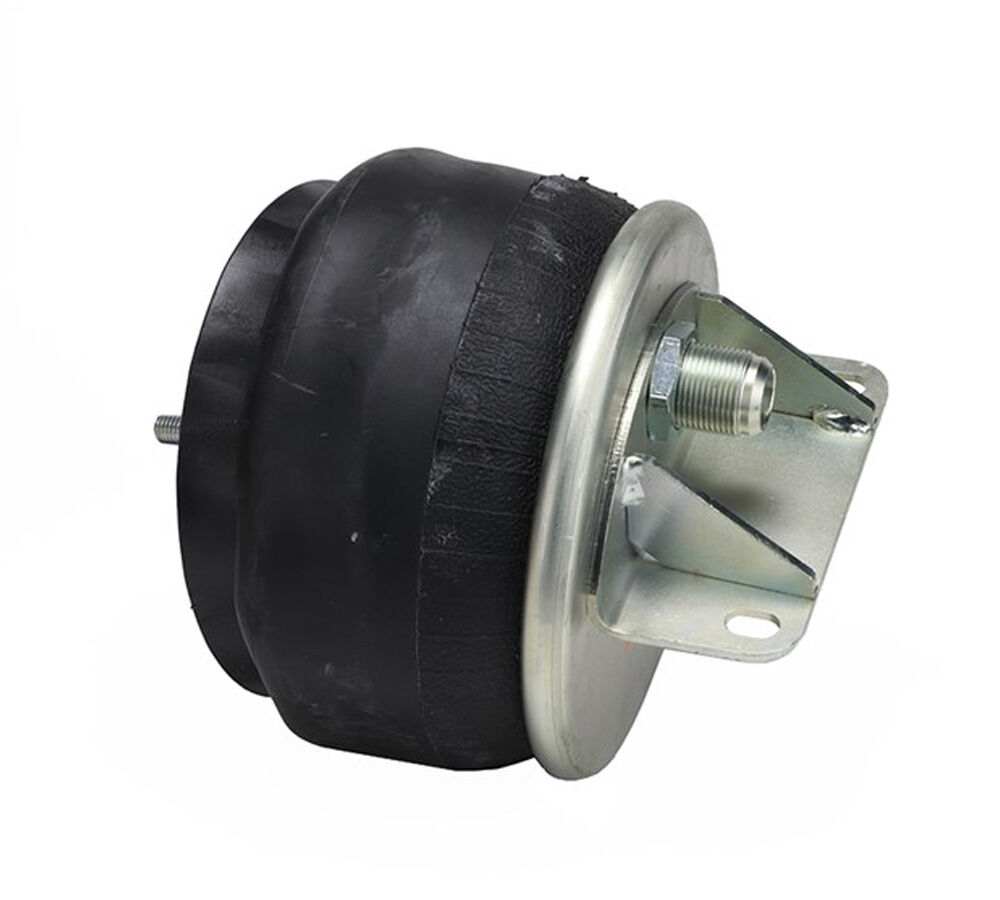

Air Spring 8.94" Top x 8.19" Bottom Dia - 566.ER9622
Part#: AAA5019622
Features and Benefits
- 1-5/16-12 UNF top and 1/2-13 UNC bottom studs for secure dual-point frame and axle mounting
- 3.43" compressed height for a compact, stable collapsed profile under full suspension load
- 8.94" top plate diameter for precise alignment with standard frame bracket mounting surfaces
- 2.76" piston height and 2.8" bellows height for controlled stroke and stable load support
- 8.19" bottom plate diameter for a wide, stable contact surface on the axle seat
- 11.3" extended height and 10.98" maximum diameter for defined suspension travel and load coverage
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Extended Height | 11.3 in. |
|---|---|
| Compressed Height | 3.43 in. |
| Top Plate Diameter | 8.94 in. |
| Top Plate Thickness | 1.78 in. |
| Top Plate Center to Center Diameter | 5.51 in. |
| Top Plate Thickness | 2.24 in. |
| Bottom Plate Diameter | 8.19 in. |
| Piston Height | 2.76 in. |
| Bellows Height | 2.8 in. |
| Maximum Diameter | 10.98 in. |
| Mounting Stud Thread Size (Top) | 1-5/16-12 UNF |
| Mounting Stud Thread Size (Bottom) | 1/2-13 UNC |
| Interchange |
|---|
| 1099622 |
| 1R11221 |
| 1R11280 |
| 27754 |
| 3002 |
| 4529622 |
| 4529622L |
| 566207287 |
| 566223021 |
| 65367 |
| 68359 |
| 8537 |
| 8576 |
| 928373 |
| 9569 |
| 9622 |
| 9672 |
| 99622 |
| 999P537 |
| ABPN32019622 |
| AS8537 |
| AS8740 |
| AS9622 |
| AS96221 |
| C013582003 |
| EFS9622 |
| FIW013589622 |
| FS9622 |
| HDV9622 |
| K30319 |
| K30322 |
| RL96220 |
| SP559622KP |
| TR9622 |
| W013589617 |
| W013589622 |
| W013589675 |
| W015449622 |
| W015449672 |
| WA019622C |
The Air Spring features a 1/2-13 UNC bottom mounting stud, providing a secure and reliable installation for Heavy Duty commercial vehicle suspension applications. Engineered for consistent load bearing and dependable performance across a wide range of trailer and chassis configurations.
