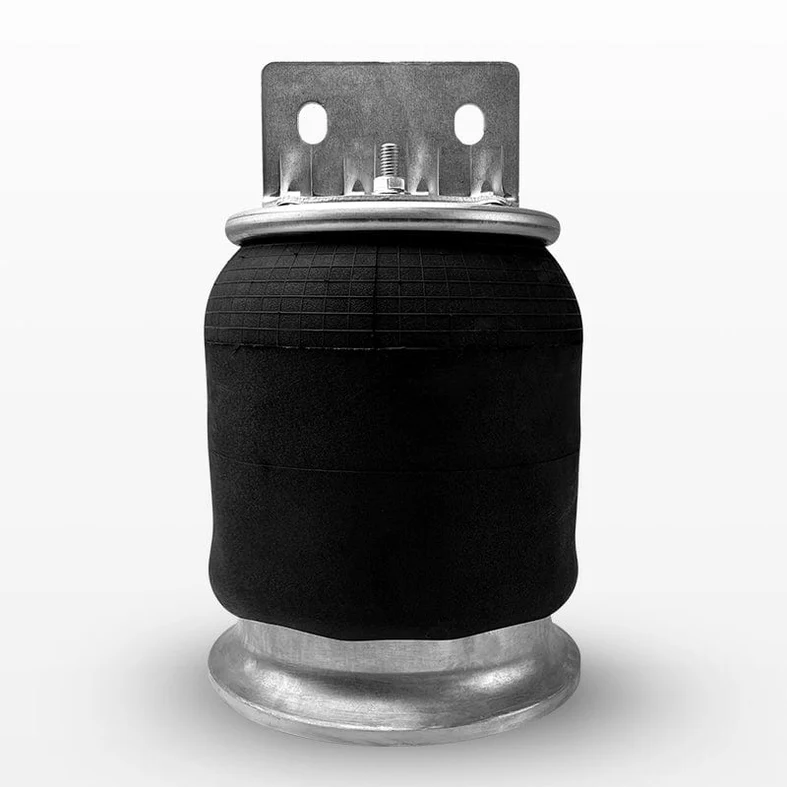

Air Spring Rolling Lobe 9" Top x 10.63" Bottom Dia Aluminum - 566.ER9781
Part#: AAA5019781
Features and Benefits
- Rolling lobe type with aluminum bottom plate for smooth response and lightweight construction
- 8.6" compressed height for a stable, compact profile during full suspension compression
- 6100 lbs load at 80 PSI and 7700 lbs at 100 PSI for rated load support across pressures
- 12.5" design height with 9" top plate and 6.2" center-to-center for precise bracket alignment
- 76 CPM natural frequency with 2 top and 1 bottom stud for controlled suspension isolation
- 23" extended height and 12.6" maximum diameter for maximum suspension travel and load distribution
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Type | Rolling Lobe |
|---|---|
| Load (Lbs) @80 PSI | 6100 |
| Load (Lbs) @100 PSI | 7700 |
| Natural Frequency (CPM) | 76 |
| Design Height | 12.5 in. |
| Bottom Plate Type | Aluminum |
| Top Plate Hole/Stud Quantity | 2 |
| Top Plate Diameter | 9 in. |
| Top Plate Center to Center Diameter | 6.2 in. |
| Bottom Plate Hole/Stud Quantity | 1 |
| Bottom Plate Diameter | 10.63 in. |
| Compressed Height | 8.6 in. |
| Extended Height | 23 in. |
| Maximum Diameter | 12.6 in. |
| Material | Aluminum |
| Compressed Height | 8.3 in. |
| Load (Lbs) @80 PSI | 6290 |
| Load (Lbs) @100 PSI | 7860 |
| Interchange |
|---|
| 01FS9781P |
| 1099781 |
| 15ZR6 |
| 1613801000 |
| 1613810000 |
| 1613810000PLA |
| 1613810000PLASTIC |
| 1613840000 |
| 1614004000 |
| 1614004001 |
| 1614366000 |
| 1614377000 |
| 1615595000 |
| 1616773000 |
| 1616773000STEEL |
| 1619465000 |
| 1619466000 |
| 1619469000 |
| 1DF239781 |
| 1R121064 |
| 1R121082 |
| 1R12603 |
| 1R12603ALU |
| 1R12603ALUMINUM |
| 239781 |
| 3529781 |
| 3529782 |
| 38270033 |
| 38279781 |
| 39781KALU |
| 449781CALU |
| 4529781 |
| 4529781L |
| 5106606 |
| 551029 |
| 566.ER978124 |
| 566ER978118 |
| 62466 |
| 63952 |
| 64266 |
| 65017 |
| 6813200017 |
| 6813200017ALU |
| 6813200017ALUMINU |
| 68208 |
| 68955 |
| 73389 |
| 73886 |
| 8382 |
| 85101151 |
| 8536 |
| 889781 |
| 9011007 |
| 91016A382 |
| 91016A999 |
| 910S16A382 |
| 910S16A3821R12186 |
| 9781 |
| 9782 |
| 9784 |
| 9786 |
| 99781 |
| A1614004000 |
| A1614004001 |
| A1617574000 |
| A1617574001 |
| A1617574002 |
| A1R12603 |
| A68132000017 |
| A6813200017 |
| AB1DF239781 |
| AB1DF23IA999 |
| AB1DK23K9781 |
| ABPN32019781 |
| ABPN320197811 |
| AM9781 |
| AMAB1DF239781 |
| AS01471G |
| AS0182 |
| AS39781K |
| AS8382 |
| AS8382TR |
| AS8999 |
| AS8999P |
| AS9780A |
| AS9781 |
| ASPR9MR169781 |
| ASRC9MR169781 |
| ATMAB1DF239781 |
| CTH642668527 |
| EFS9781 |
| FIR9780 |
| FIRW013589781 |
| FIW013589781 |
| FIW013778536 |
| FLT1R12603 |
| FLTA1R12603 |
| FS9781 |
| GYR1R12603 |
| HDV9781 |
| MAF9781 |
| PDAS9781 |
| PR9MR169781 |
| RC9MR169781 |
| RL97800 |
| S22469 |
| SC2750 |
| SCW013778529 |
| SP559781KA |
| TAS9781 |
| TR9781 |
| UPT9781 |
| W013589781 |
| W013589781ALU |
| W013589781ALUMINU |
| W013589782 |
| W013599781 |
| W013778527 |
| W013778529 |
| W013778536 |
| W013778537 |
| W013779780 |
| W013779781 |
| W013779783 |
| W013779784 |
| W013779785 |
| W013779786 |
| W013779787 |
| WA019781 |
| WA019781C |
| ZI9781 |
The Air Spring rolling lobe design features aluminum construction, delivering durable and dependable suspension performance for Heavy Duty commercial vehicle applications. Engineered for consistent load bearing and smooth ride quality across a wide range of trailer and chassis configurations.
