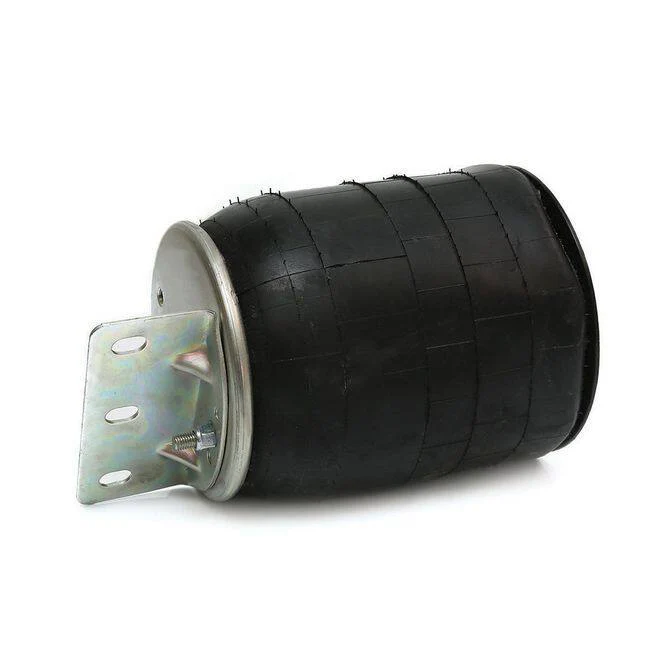

Air Spring 8.94" Top x 1" Bottom Dia - 566.ER9875
Part#: AAA5019875
Features and Benefits
- 1/4 NPTF air inlet for a reliable, leak-resistant pneumatic air line connection
- M12 x 1.75 mm bottom mounting stud for a secure, vibration-resistant axle bracket attachment
- 6.9" compressed height for a stable, compact profile during full suspension compression
- 8.94" top plate diameter with 5.87" center-to-center diameter for precise bracket alignment
- 4.61" bellows height and 1.97" piston height for controlled stroke and consistent load response
- 23.6" extended height and 12.05" maximum diameter for broad suspension travel and load distribution
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Extended Height | 23.6 in. |
|---|---|
| Compressed Height | 6.9 in. |
| Top Plate Diameter | 8.94 in. |
| Top Plate Thickness | 0.63 in. |
| Top Plate Center to Center Diameter | 5.87 in. |
| Top Plate Width | 4.39 in. |
| Bottom Plate Diameter | 1 in. |
| Piston Height | 1.97 in. |
| Bellows Height | 4.61 in. |
| Maximum Diameter | 12.05 in. |
| Air Inlet Thread Size | 1/4 NPTF |
| Mounting Stud Thread Size (Bottom) | M12 x 1.75 mm |
| Interchange |
|---|
| 1R12432 |
| 1R12689 |
| 1T15M9 |
| 2883 |
| 3541731C1 |
| 3691773C1 |
| 4521191 |
| 4521191L |
| 566.CT74662 |
| 566207236 |
| 566243066 |
| 566243145 |
| 566243165 |
| 73746 |
| 910S18 |
| 9538 |
| 9875 |
| AS8889 |
| AS9875 |
| AS9900 |
| ASA928344 |
| FS9875 |
| FX566.ER9875 |
| HDV9875 |
| MZH566.ER9875 |
| NAD27740 |
| WA019875C |
The Air Spring features a 1/4 NPTF air inlet connection, ensuring reliable pneumatic integration for Heavy Duty commercial vehicle suspension applications. Engineered for consistent load bearing and dependable performance across a wide range of trailer and chassis configurations.
