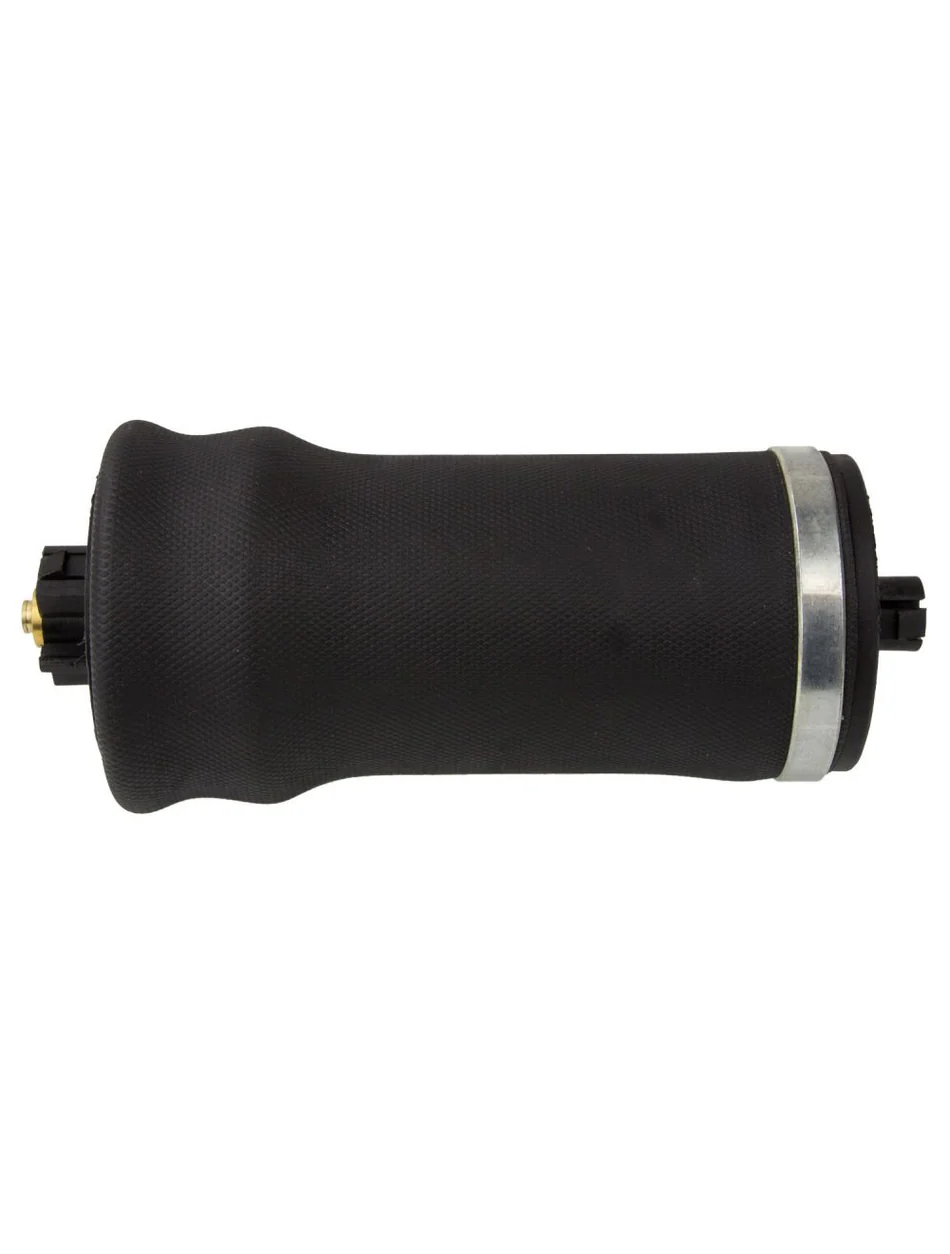

Air Spring Sleeve 2.99" Top Dia - 569.CT69624
Part#: AAA50169624
Features and Benefits
- Sleeve type for a compact, smooth-acting cabin suspension air spring design
- 2.4" compressed height for an ultra-compact collapsed profile during full cabin compression
- 874 lbs load at 80 PSI and 1094 lbs at 100 PSI for rated load support across cabin pressures
- 4" design height with 2.99" top plate diameter for accurate cabin bracket mounting alignment
- 115 CPM natural frequency for excellent high-frequency cabin vibration isolation performance
- 6.5" extended height and 5.6" maximum diameter for defined cabin suspension travel range
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Type | Sleeve |
|---|---|
| Load (Lbs) @80 PSI | 874 |
| Load (Lbs) @100 PSI | 1094 |
| Natural Frequency (CPM) | 115 |
| Design Height | 4 in. |
| Top Plate Diameter | 2.99 in. |
| Bottom Plate Hole/Stud Quantity | 1 |
| Compressed Height | 2.4 in. |
| Extended Height | 6.5 in. |
| Maximum Diameter | 5.6 in. |
| Interchange |
|---|
| 69624 |
| 7109 |
| ABSZ707109 |
| SC29Y109 |
| T811000 |
| W023587109 |
The Air Spring sleeve type cabin design delivers 874 lbs load capacity at 80 psi, providing reliable suspension support for Heavy Duty commercial vehicle cab applications. Engineered for consistent performance and smooth ride quality across a wide range of cab and chassis configurations.
