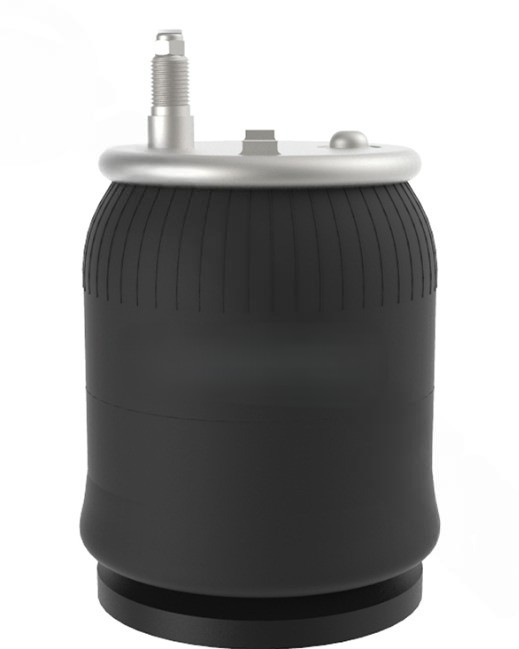

Air Spring Rolling Lobe 6.31" Top x 6.5" Bottom Dia - 569.CT69914
Part#: AAA50169914
Features and Benefits
- Rolling lobe type with rubber material for smooth, progressive suspension response
- 5.9" compressed height for a stable, compact profile during full suspension compression
- 6.31" top plate diameter with 2 top studs for precise frame bracket mounting alignment
- 6.5" bottom plate diameter and 1 bottom stud for a stable, secure axle seat attachment
- 14.7" extended height for maximum suspension travel under variable load conditions
- Rubber construction for a flexible, impact-absorbing air spring body in road environments
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Type | Rolling Lobe |
|---|---|
| Top Plate Hole/Stud Quantity | 2 |
| Bottom Plate Hole/Stud Quantity | 1 |
| Top Plate Diameter | 6.31 in. |
| Bottom Plate Diameter | 6.5 in. |
| Compressed Height | 5.9 in. |
| Extended Height | 14.7 in. |
| Material | Rubber |
| Interchange |
|---|
| 20462934 |
| 3539911 |
| 4539911 |
| 4539911L |
| 569.ER9911 |
| 569.ER9913 |
| 569ER9913 |
| 57QL520M |
| 59823002 |
| 59823002L |
| 598232 |
| 598232C |
| 59823N2 |
| 60750002 |
| 60750002L |
| 607502 |
| 64075002 |
| 66.5B11P235 |
| 66.5B11P236 |
| 66349002 |
| 66349002L |
| 663492A |
| 67874002 |
| 678742 |
| 69116002 |
| 691162 |
| 69782002 |
| 69782002L |
| 697822 |
| 69915 |
| 79766349002 |
| 9911 |
| 9912 |
| 9913 |
| AB1DK10A9911 |
| AB1DK10A9912 |
| ABH59823002 |
| ABH66349002 |
| AS8325 |
| AS9911 |
| AY1000H |
| FS9912 |
| H69782002 |
| W013589912 |
| W263589911 |
| W263589912 |
| W263589913 |
| W264559912 |
| W264559913 |
The Air Spring rolling lobe type features rubber construction, offering dependable suspension performance for Heavy Duty commercial vehicle applications. Engineered for consistent load bearing and smooth ride quality across a wide range of trailer and chassis configurations.
