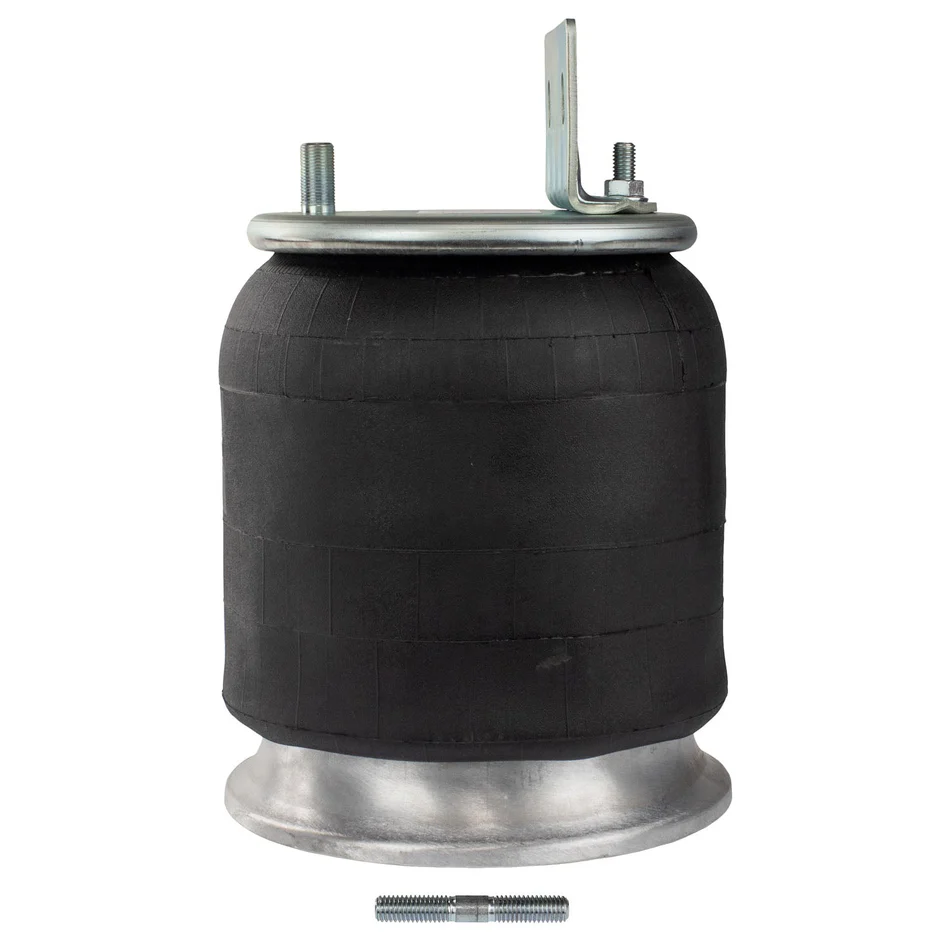

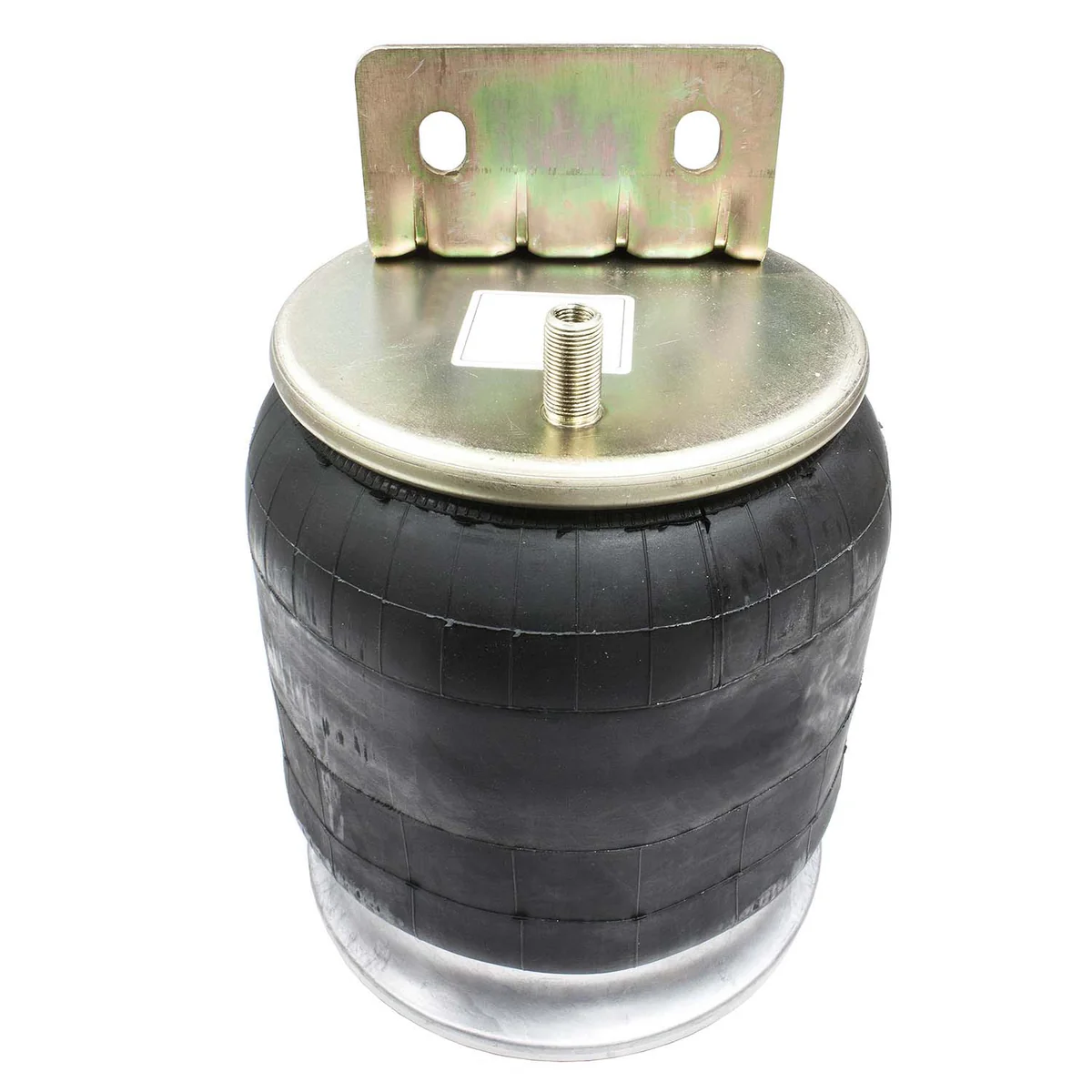

Air Spring Rolling Lobe 9" Top x 10.63" Bottom Dia - AB1DF23-9781
Part#: AAA501239781
Features and Benefits
- Rolling lobe type with 1/4-18 NPTF air inlet for reliable, leak-resistant pneumatic connection
- 8.6" compressed height for a stable, compact profile during full suspension compression
- 3/4-16 UNF top and 1/2-13 UNC bottom studs for secure dual-point frame and axle attachment
- 9" top plate and 6.2" center-to-center with 12.5" design height for precise bracket alignment
- 6.48" bellows height and 2" piston height for controlled stroke and consistent load response
- 23" extended height and 12.6" maximum diameter for maximum suspension travel and load distribution
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Type | Rolling Lobe |
|---|---|
| Design Height | 12.5 in. |
| Top Plate Diameter | 9 in. |
| Bottom Plate Hole/Stud Quantity | 1 |
| Extended Height | 23 in. |
| Compressed Height | 8.6 in. |
| Top Plate Thickness | 1.34 in. |
| Top Plate Center to Center Diameter | 6.2 in. |
| Bottom Plate Diameter | 10.63 in. |
| Piston Height | 2 in. |
| Bellows Height | 6.48 in. |
| Maximum Diameter | 12.6 in. |
| Air Inlet Thread Size | 1/4-18 NPTF |
| Mounting Stud Thread Size (Top) | 3/4-16 UNF |
| Mounting Stud Thread Size (Top) | 1/2-13 UNC |
| Mounting Stud Thread Size (Bottom) | 1/2-13 UNC |
| Interchange |
|---|
| 01FS9781P |
| 1099781 |
| 15ZR6 |
| 161007 |
| 1613801000 |
| 1613840000 |
| 1614004000 |
| 1614366000 |
| 1614377000 |
| 1615595000 |
| 1616773000 |
| 1617575000 |
| 1619465000 |
| 1619466000 |
| 1R121082 |
| 1R12603 |
| 3529781 |
| 3529782 |
| 4529781 |
| 4529781L |
| 5106606 |
| 566.ER9781 |
| 566.ER978124 |
| 566ER9781 |
| 566ER978118 |
| 62466 |
| 64266 |
| 6813200017 |
| 68208 |
| 8382 |
| 85101151 |
| 8536 |
| 91016A382 |
| 91016A999 |
| 910S16A382 |
| 910S16A3821R12186 |
| 9781 |
| 9782 |
| 9784 |
| 9786 |
| 99781 |
| A1614004000 |
| A1614004001 |
| A1615443000 |
| A1617574000 |
| A1617574001 |
| A1617574002 |
| A1R12603 |
| AB1DF239781 |
| AB1DF23IA999 |
| AB1DK23K9781 |
| ABPN32019781 |
| AM9781 |
| AMAB1DF239781 |
| AS39781K |
| AS8382 |
| AS9781 |
| ATMAB1DF239781 |
| EFS9781 |
| FIW013589781 |
| FIW013778536 |
| FLT1R12603 |
| FLTA1R12603 |
| FS9781 |
| GYR1R12603 |
| HDV9781 |
| PDAS9781 |
| RL97800 |
| S22469 |
| SC2750 |
| SCW013778529 |
| TR9781 |
| W013589781 |
| W013589782 |
| W013599781 |
| W013778527 |
| W013778529 |
| W013778536 |
| W013779780 |
| W013779781 |
| W013779783 |
| W013779784 |
| W013779785 |
| W013779786 |
| W013779787 |
| WA019781 |
| WA019781C |
The Air Spring rolling lobe design features a 1/4-18 NPTF air inlet connection, ensuring reliable pneumatic integration for Heavy Duty commercial vehicle suspension applications. Engineered for consistent load bearing and dependable performance across a wide range of trailer and chassis configurations.
