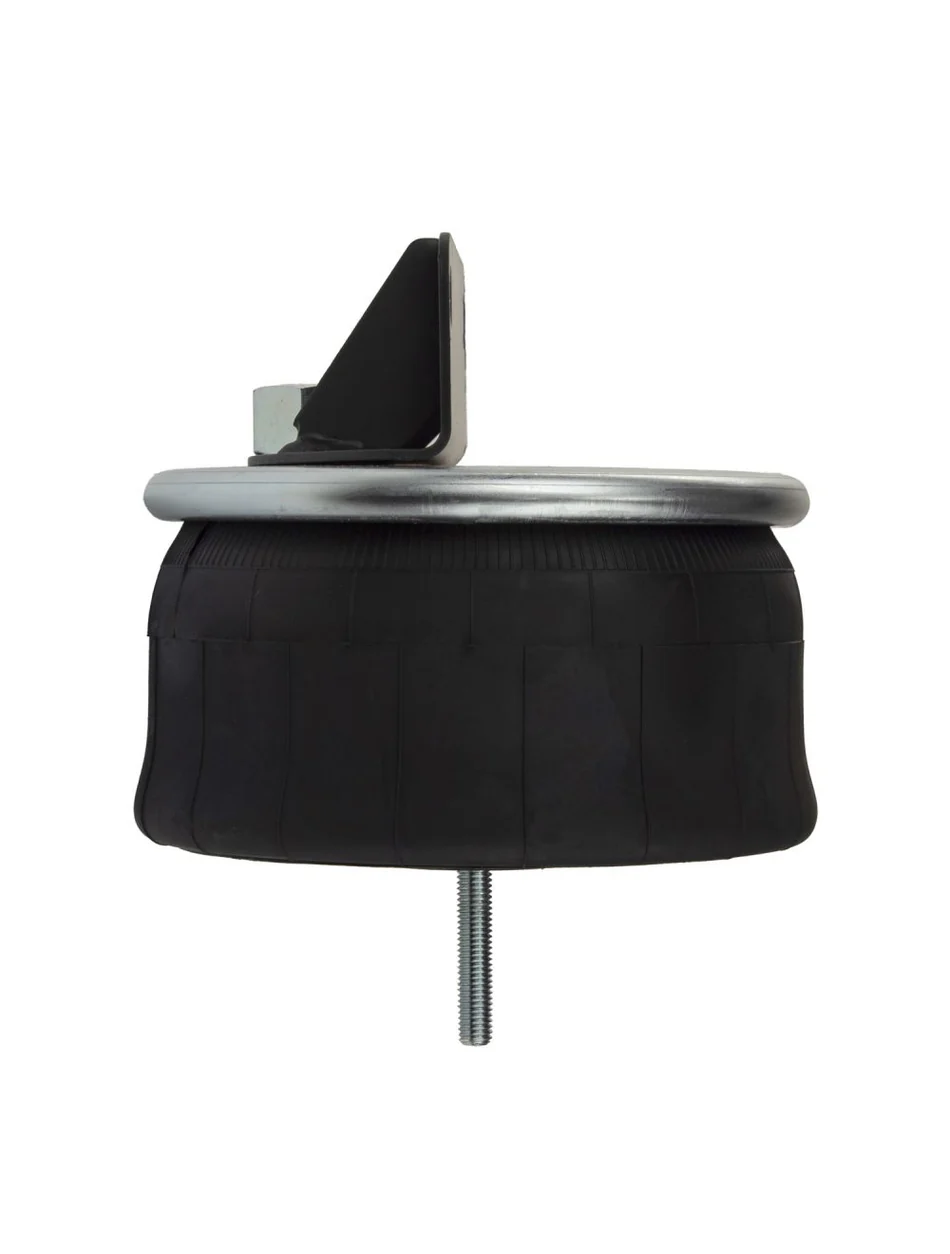

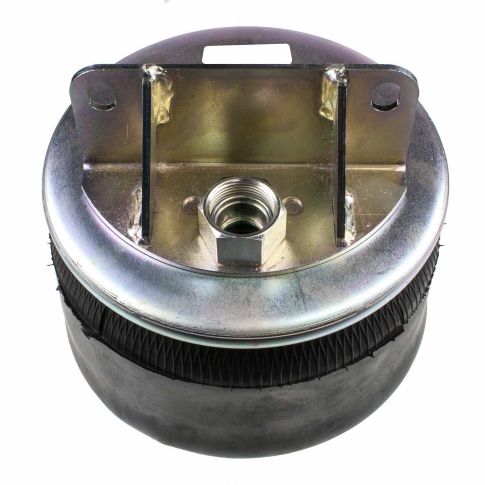

Air Spring Rolling Lobe 9" Top x 8.19" Bottom Dia Plastic - AB1DK20G-9547
Part#: AAA50120G9547
Features and Benefits
- Rolling lobe type with plastic bottom plate for smooth response and lightweight axle contact
- 3.9" compressed height for an ultra-compact collapsed profile during full suspension compression
- 5100 lbs load at 80 PSI and 6400 lbs at 100 PSI for rated load support across pressures
- 7" design height with 9" top plate diameter and 1 top stud for consistent frame alignment
- 103 CPM natural frequency for stable, responsive suspension vibration isolation performance
- 8.19" bottom plate diameter and 11.4" maximum diameter for defined load distribution and travel
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Type | Rolling Lobe |
|---|---|
| Load (Lbs) @80 PSI | 5100 |
| Load (Lbs) @100 PSI | 6400 |
| Natural Frequency (CPM) | 103 |
| Design Height | 7 in. |
| Bottom Plate Type | Plastic |
| Top Plate Hole/Stud Quantity | 1 |
| Top Plate Diameter | 9 in. |
| Bottom Plate Hole/Stud Quantity | 1 |
| Bottom Plate Diameter | 8.19 in. |
| Compressed Height | 3.9 in. |
| Maximum Diameter | 11.4 in. |
| Interchange |
|---|
| 1R11268 |
| 3529547 |
| 4529547L |
| 566.Er9547 |
| 68358 |
| 8859 |
| 9547 |
| 99541 |
| 999P859 |
| 999S859 |
| AB1DK20G9547 |
| AB1R11268 |
| AS8859 |
| AS95470 |
| BCDMG2299541200 |
| C811004 |
| FS9547 |
| MAF9547 |
| W013589547 |
| W015449547 |
| W015449549 |
| WA019547C |
The Air Spring rolling lobe design delivers 5,100 lbs load capacity at 80 psi, providing dependable suspension support for Heavy Duty Kenworth vehicle applications. Engineered for consistent load bearing and smooth ride quality across a wide range of trailer and chassis configurations.
