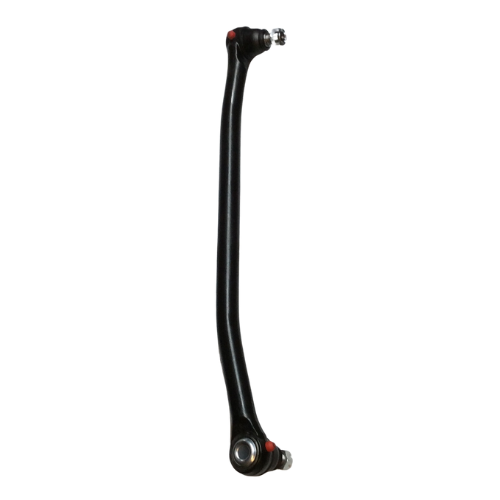

Drag Link 32.25" C to C 1.65" Shaft 1-1/8"-12 Right Hand 7/8"-14 Taper Pin - 463.DS4630
Part#: AAA364DS4630
Features and Benefits
- Drag link for front linkage
- Forged steel for high steering strength
- 32.25" center to center span for linkage fit
- 1-1/8"-12 RH thread for sleeve alignment
- 1.65" shaft diameter for wobble-free fit
- 1.08" taper pin dia for socket seating
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Center to Center Length | 32.25 in. |
|---|---|
| Shaft Diameter | 1.65 in. |
| Shaft Side Thread (E) | 1-1/8"-12 (RH) |
| Taper Pin Minor Diameter | 1.08 in. |
| Taper Pin Major Diameter | 1.22 in. |
| Taper Pin Length | 1.14 in. |
| Taper Pin Thread | 7/8"-14 |
| Interchange |
|---|
| 1413212000 |
| 1416330000 |
| 1417322000 |
The Drag Link extends a 32.25" mounting span, forming a long-reach connector between the steering gear and knuckle on Heavy Duty commercial vehicles. Machined to a 1.65" shaft diameter, the rod transmits input smoothly toward the axle assembly, supporting stable handling across broad wheelbase configurations.
