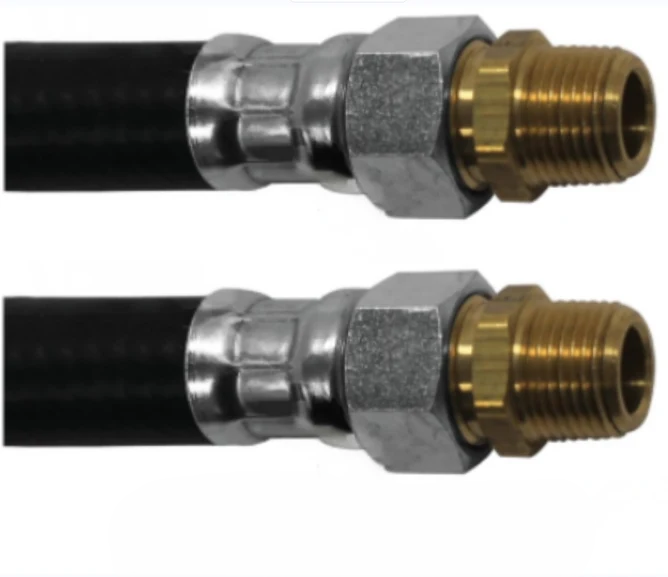

Air Hose Assembly 3/8" ID 28.00" 2 Swivels Rubber - 177.73628

Air Hose Assembly 3/8" ID 28.00" 2 Swivels Rubber - 177.73628

Part#: AAA41073628

Features and Benefits

Air hose assembly with dual swivel ends for torsion-free routing in truck air brake circuits
Rubber body for flexibility and durability in continuous-use pneumatic brake system environments
Inner diameter at 3/8" for consistent compressed air capacity at standard brake system pressures
Both ends in 3/8" pipe swivel for rotational fitment without inducing stress on the hose body
Overall length at 28" for mid-range routing between brake relay valves and adjacent chassis ports
Weight at 0.70 lbs. for easy single-person positioning during installation and system assembly

Select Alternative Part #

177.73628

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

Inner Diameter	3/8 in.
Material	Rubber
Number of Swivels	2.00
Pipe Size	3/8 in.
Overall Length	28.00 in.
Weight	0.70 lbs.
Dimensions	29.50 in. x 1.03 in. x 1.03 in.
Connection Size	3/8 in.

Interchange

146528
16428
ATM17773628
E858128BK
WA015309

No data found.

The Rubber Air Hose Assembly delivers dependable Heavy Duty performance across demanding commercial vehicle applications. Measuring 28" in overall length with a 3/8" inner diameter, the dual-swivel design ensures flexible routing without kinking or torsional stress. Built from quality rubber, each end maintains a secure, leak-free connection under pressure.
