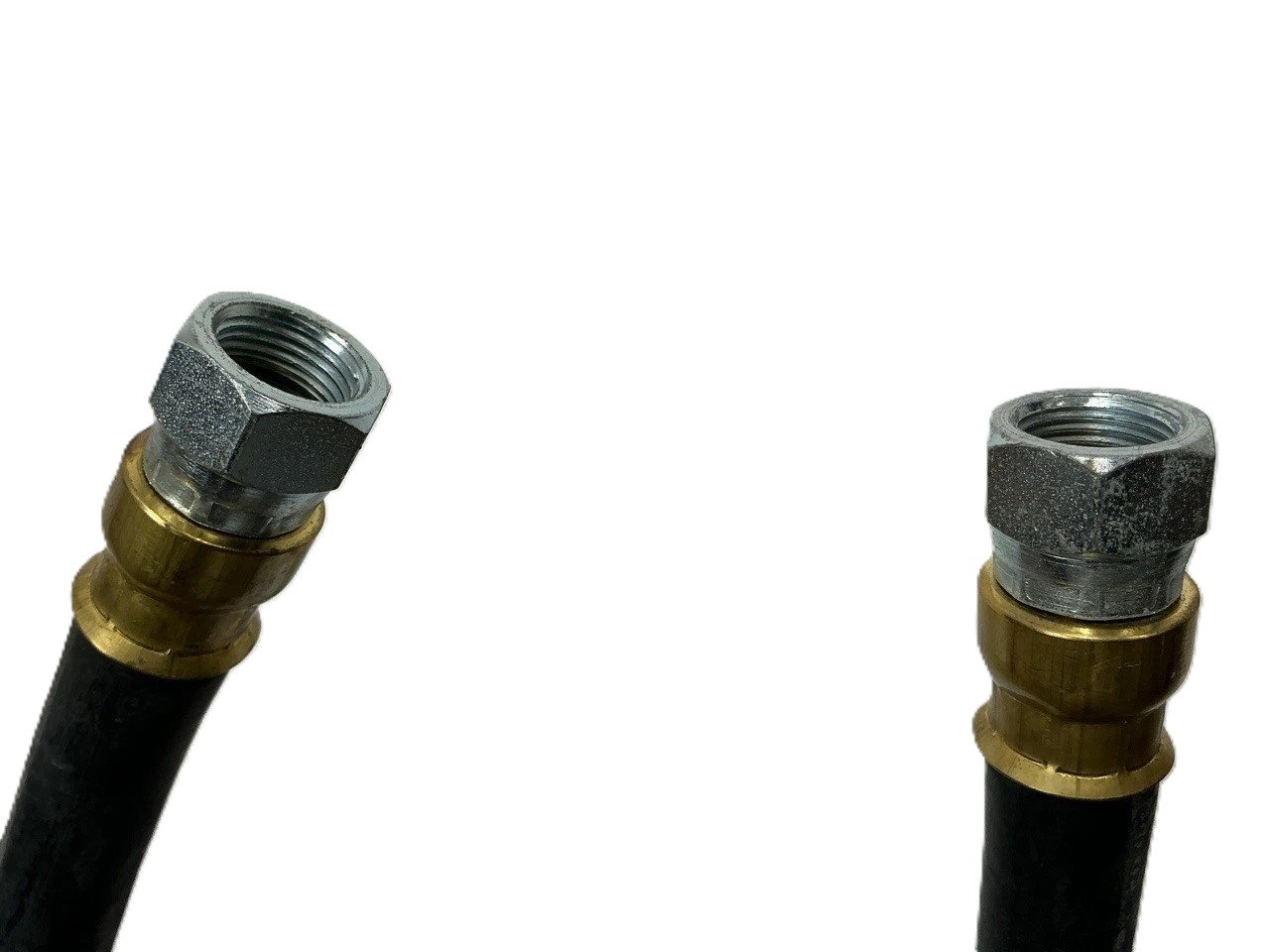

Air Hose Assembly 3/8" ID 34.00" 2 Female Swivels 3/8" SAE Fitting Rubber - 177.7434

Air Hose Assembly 3/8" ID 34.00" 2 Female Swivels 3/8" SAE Fitting Rubber - 177.7434

Part#: AAA4107434

Features and Benefits

Air hose assembly with SAE female swivel ends for brake circuit connections on heavy duty trucks
Rubber body for sustained flexibility and pressure retention in commercial brake system environments
Inner diameter at 3/8" for reliable air flow delivery between brake components at operating pressure
Fitting size at 3/8" SAE on both female swivel ends for OE-compatible port engagement at installation
Overall length at 34" for mid-range routing reach between brake relay valves and actuator ports
Weight at 0.80 lbs. with 2 female swivels for easy single-person handling and alignment on the chassis

Select Alternative Part #

177.7434

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

Inner Diameter	3/8 in.
End 1	3/8 in. SAE Female Swivel
End 2	3/8 in. SAE Female Swivel
Number of Female Swivels	2.00
Connection Type	3/8 in. SAE Swivel
Overall Length	34.00 in.
Material	Rubber
Weight	0.80 lbs.
Dimensions	34.50 in. x 0.88 in. x 0.88 in.
Number of Swivels	2 Female Swivels
Fitting Size	3/8 in. SAE

No data found.

The Rubber Air Hose Assembly is built for Heavy Duty commercial vehicle applications, delivering dependable performance across demanding environments. Featuring a 3/8" inner diameter and an overall length of 34", dual SAE female swivel ends ensure leak-resistant, secure connections. Crafted from quality rubber material for lasting durability.
