Air Hose 3/8" ID 18.00" 225 psi - RH16618

Air Hose 3/8" ID 18.00" 225 psi - RH16618

Part#: AAA41016618

Features and Benefits

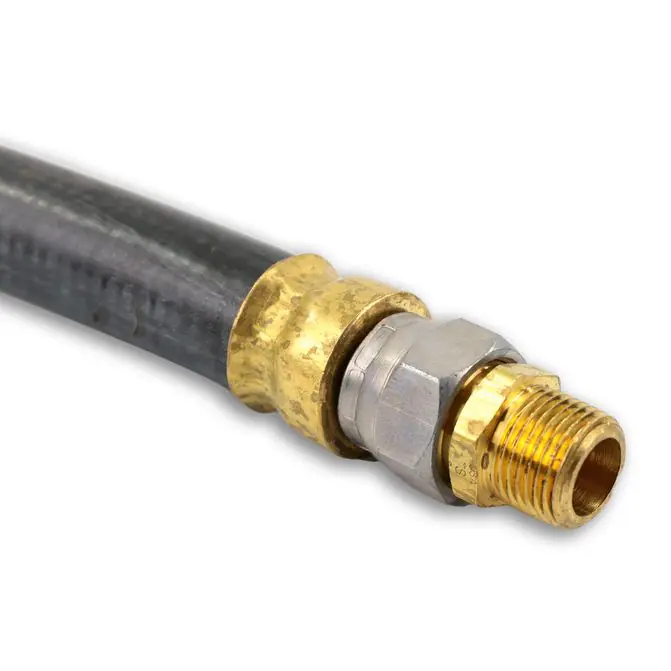

Air brake hose assembly for 3/8" NPT connections with permanently swaged fittings for leak resistance
Inner diameter at 3/8" for consistent compressed air delivery through brake valve and relay circuits
End 1 at 3/8" male swivel for rotational fitment at the actuator or relay port without hose torsion
End 2 at 3/8" male iron pipe for a rigid, non-rotating connection at the supply port
Working pressure at 225 PSI with minimum burst capacity at 900 PSI for brake system safety assurance
Operating temperature range from -40°F to 200°F for all-season reliability in commercial brake service

Select Alternative Part #

RH16618

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

Overall Length	18.00 in.
End 1	3/8 in. Male Swivel
End 2	3/8 in. Male Iron Pipe
Inner Diameter	3/8 in.
Connection Type	3/8 in. NPT Ends
Operating Temperature Range	-40°F to 200°F
Working Pressure	225 PSI
Thread Type	Male Threads Complete With Thread Sealant
Minimum Burst Pressure	900 PSI
Fittings	Permanently Swagged
Weight	0.70 lbs.

Interchange

16618

No data found.

The Air Hose is a Heavy Duty solution engineered for demanding commercial vehicle applications. Measuring 18" in overall length with a 3/8" inner diameter, the design delivers a working pressure of 225 psi. Permanently swagged fittings ensure leak-free performance across an operating temperature range of -40°F to 200°F.
