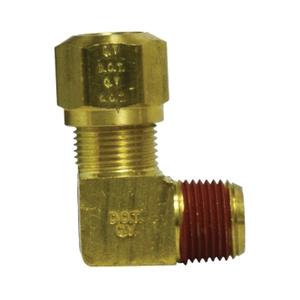

90° Elbow Fitting 1/4" x 1/8" Brass 7/16"-24 150 psi - 38091

90° Elbow Fitting 1/4" x 1/8" Brass 7/16"-24 150 psi - 38091

Part#: AAA40738091

Features and Benefits

For use with SAE j844 type a and b nt nylon tubing for confirmed system compatibility
Material of brass for durable, long-lasting performance
Connection size of 1/4" for confirmed fitment accuracy
Connection type of tube OD for a secure, direct connection
Pressure rating rated at 150 PSI for accurate service performance
Connection size of 1/8" for confirmed fitment accuracy

Select Alternative Part #

38091

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

Connection Size 1	1/4 in.
Connection Size 2	1/8 in.
Connection Type 1	Tube OD
Connection Type 2	Male NPTF
Fitting Type	90 deg Elbow
For Use With	SAE J844 Type A and B NT Nylon Tubing
Material	Brass
Pressure Rating	150 PSI
Temperature Range	-40 to 200 deg F
Thread Size	7/16 in.-24

Interchange

016942
12120917
13694A
146942
14694A
1469x4
1469X4CT
16942
269NTA42
4690402
46942
5003436
51835K251
69NAB42
69NAB42VS
69NAB4A
85068
90693
9694
9694NSC
BNT6942
D14694A
N6942
NT6942VS
NY26942
S769AB42
S769AB42C
TH269C
VS269NTA42

No data found.

The DOT Push-In Elbow connects 1/4" and 1/8" lines through a 90-degree turn, suited to Heavy Duty commercial air and fluid circuits. Machined from brass, the fitting resists corrosion and repeated thermal cycling in daily fleet use. No special tools are needed, making the piece easy to swap during routine upkeep.
